PM Tap PD Monitor: Affordable Option for Power Monitoring System

Date: 2026-01-26 10:43:55

In the ever-evolving landscape of optical power monitoring technology, the integration of devices has become paramount. PM (Polarization Maintaining) tap PD (Photo Detector ) monitor is the best solution for integrating a tap coupler and a photodiode. It is used to monitor power from the photodiode and WDM channel and provides low insertion loss and cost, high stability, and compact size. This article will mainly introduce the PM tap PD monitor.

What is a PM Tap PD Monitor?

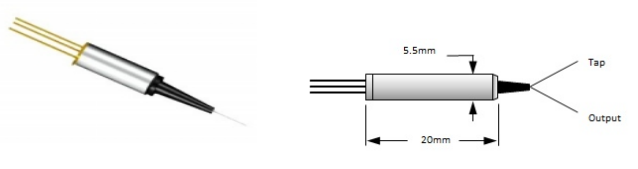

PM tap PD monitor is a hybrid device that integrates the functionality of a tap coupler and a photodiode into a compact package for optical power monitoring or detection applications. It is built with Panda PM fiber and reduces the number of parts, minimizes fiber handling, and results in a compact footprint. Thus, it ensures input port power is detected with high directivity for the reflected light.

Why PM Tap PD Monitor Matters in a Power Monitoring System?

PM tap PD monitor is essential to gain monitoring for an amplifier, WDM channel monitoring, and protection monitoring. It eliminates the need for a separate optical fiber coupler and a photodetector. Thus, it provides an easy way to monitor the power in an optical connection where polarization maintenance is required. PM tap PD monitor can be connected or spliced into the fiber links where the optical power or the signal is to be measured. In addition, it minimizes component assembly costs and module footprint while increasing module design efficiency by facilitating fiber management.

Features and Benefits

PM tap PD monitor provides the following features and benefits:
1.Low insertion loss, dark current, and cost
2.Low polarization-dependent loss (PDL) and wavelength-dependent loss(WDL)
3.High reliability and stability
4.High extinction ratio and responsibility
5.Compact size, Panda PM fiber
6.Uni-directional and bidirectional
7.Wide operating wavelength range and custom tap ratio

Applications

PM tap PD monitor is used in a fiber laser, fiber optic sensing, power monitoring system, optical fiber amplifier, optical network switch, EDFA, WDM/ DWDM channel monitoring, OADM module, optical line protection monitoring, etc.

Conclusion

To sum up, a PM tap PD monitor combines the functionality of a tap coupler and a photodiode while delivering low insertion loss and low dark current with high-temperature stability over a wide wavelength range. It is the most suited option for power monitoring systems, WDM channel monitoring, and OADM module applications.
Sun Telecom specializes in providing one-stop total fiber optic solutions for all fiber optic application industries worldwide. Contact us if you have any needs.
