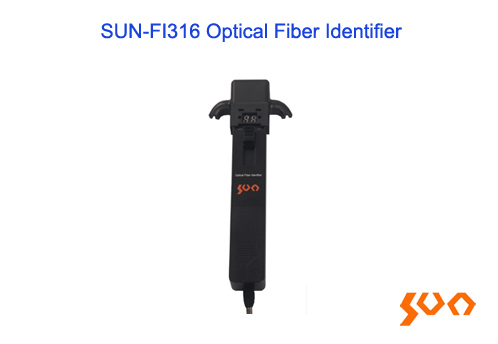

SUN-FI316 Optical Fiber Identifier

Position: Home > Products > Test Equipment > Fiber Identifiers

Model: SUN-FI316

This fiber identifer can identifer SM fiber without damaging the fiber

Key Features

Efficiently identifies the traffic direction and frequency tone (270Hz, 1KHz, 2KHz) without any damage of the fibers
Displays the core power of the fibers (-50~+0dBm)
Low bending loss and highly efficient output
Easy-to-replace adaptors (0.25mm, 0.9mm, 2.0mm, 3.0mm to match various optical cables)
Mechanical damp design of adapter heads to ensure the fiber without damage
KEY operation design, easy-to-sue

Description
Specifications
Ordering Information
Applications
FAQ
Product Video

　Sun Telecom’s SUN-FI316 Optical Fiber Identifier is an essential installation and maintenance instrument.

By inserting the fiber into its adapter head, SUN-FI316 Optical Fiber Identifier can identify SM optical fibers without any damage by detecting the optical signals being transmitted through them so as to avoid the opening of the fiber at the splice point for identification and thus avoids the interruption of the service.

In the presence of traffic, the intermittently audible tone is activated. The SUN-FI316 Optical Fiber Identifier also allows relative core power display and identification of the 270Hz, 1 kHz and 2 kHz frequencies. When they are used to detect the frequency, the continuously audible tone is activated. There are four types of adapter heads available: 0.25mm, 0.9mm, 2.0mm, and 3.0mm.

Specifications:

Parameters	Specifications
Identified Wavelength Range (nm)	800-1700
Identified Signal Type	CW, 270Hz±5%
Detector Type	Ø1mm InGaAs 2PCs
Adaptor Type	Ø 0.25 (Applicable for Bare Fiber)
	Ø 0.9 (Applicable for Ø 0.9 Cable)
	Ø 2.0 (Applicable for Ø 2.0 Cable)
	Ø 3.0 (Applicable for Ø 3.0 Cable)
Signal Direction	Left & Right LED
Optical Power Reading (dBm)	-50~+0
Signal Frequency (Hz)	270, 1K, 2k
Power Supply	One 9V Alkaline Battery
Sensitivity (dB)	-50
Relative Humidity	0 to 90%
Allowable Attenuation	≤1dB
Operating Temperature (°C)	-10~+60
Storage Temperature (°C)	-25~+70
Dimensions (mm)	195 x 30x 27
Weight (g)	235

Standard Package:

Model	Contents	QTY	Unit
SUN-FI316	SUN-FI316 Optical Fiber Identifier	1	Piece
	Adaptors Heads	4	Piece
	Alkaline Battery	1	Piece
	Instruction Manual	1	Copy
	Cotton Tampon and Soft Carrying Case	1	Set

Model Name Description

SUN-FI316 Optical Fiber Identifier Identified wavelength range: 800-1700nm; Identified signal type: CW, 270Hz, 1kHz, 2kHz
● Maintenance in Telecom
● Maintenance CATV
● Test Lab of optical fibers
● Other Fiber Optic Measurements
