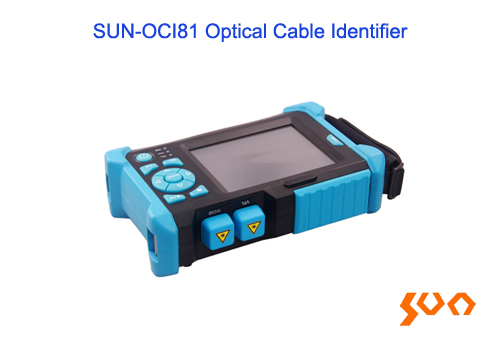

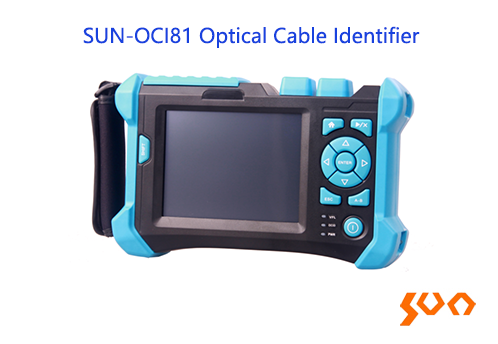

SUN-OCI81 Optical Cable Identifier

Model: SUN-OCI81

Optical cable identifier, cables locating and identifying by audio and visual, distance up to 40 km

    Key Features

  • Fiber optic cables locating and identifying by audio and visual signals
  • Detection distance up to 40 km
  • High efficiency and accuracy
  • No damage to the cables
  • Easy to operate (Large touch screen and shortcut keys)
  • Continuous work ≥14 hours
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ

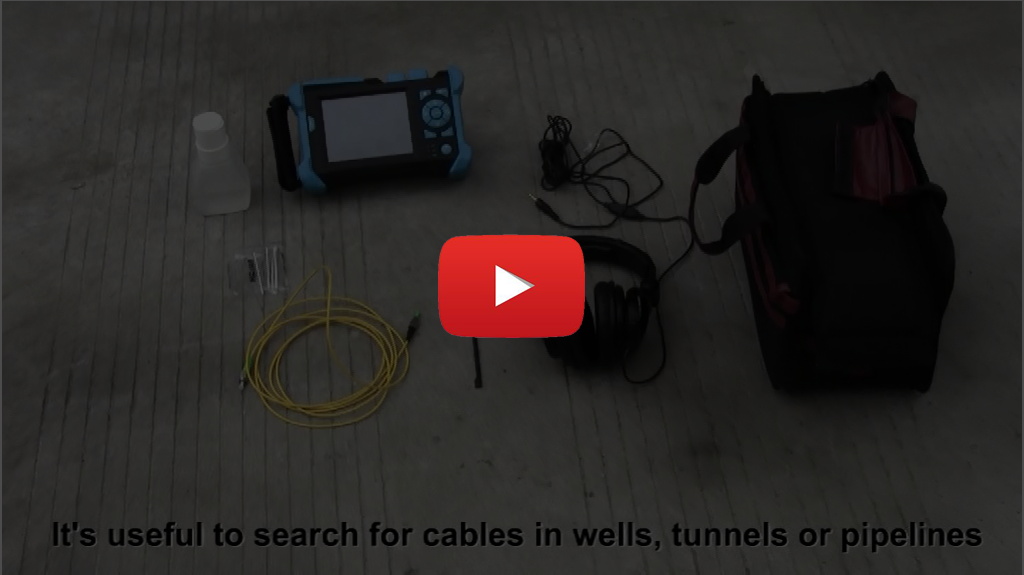

  • Product Video

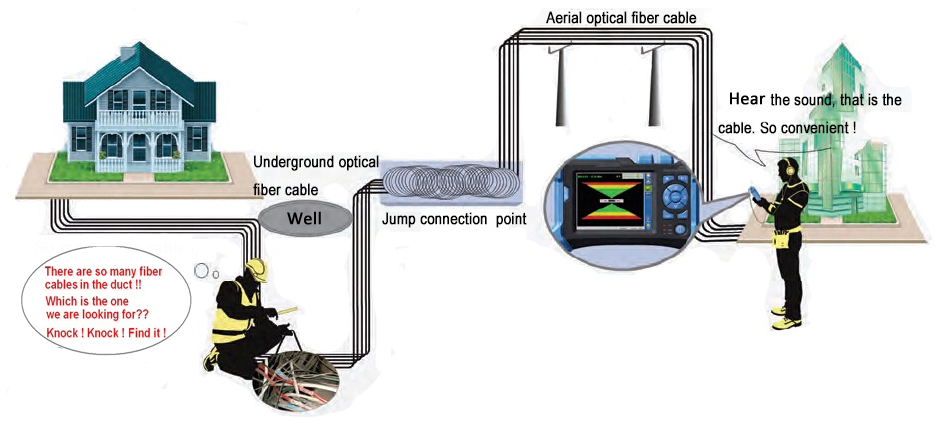

  •  Sun Telecom’s SUN-OCI81 series of optical cable identifier can locate and identify desired fiber optic cables in manholes, tunnel conduits, aerial installations, etc. by converting vibration signals to visual and audio signals. SUN-OCI81 series of optical cable identifier is easy to operate and has no damage to the cables.
  • Specifications
    Parameters Specification
    Model SUN-OCI8110-20 SUN-OCI8110-40 SUN-OCI8120-40
    Test Method Single Fiber
    Wavelength (nm) 1550
    Min. Optical Power (dBm) -15 -8 -15
    Unidirectional Fiber Loss (dB) ① 5 10 10
    Max. Detection Distance (km) ② 20 40 40
    Dead Zone None
    Fiber End Return Loss (dB) ≤20
    SNR (dB) >40 >25
    Fiber Type SM
    Optical Interface FC/SC/ST interchangeable port
    Visual Fault Locator (VFL) Wavelength: 650nm
    Output power: ≥-3 dBm
    Max. testing distance: 3km
    No
    Display 5.6’ LCD touch screen
    Output Mode Visual: vibration amplitude on touch screen LCD
    Audio: sound in headphone
    Power Supply DC 12V/3A
    Battery Lithium battery (7.4V, 10.4Ah), ≥14 hours of continuous work
    Power (W) <6
    Operation Temperature (°C) -10~+50
    Storage Temperature (°C) -40~+70
    Dimensions (mm) 235(L) × 150(W) × 65(H)
    Weight (kg) 1.5 (with battery)
    Note:
    ① Increase 5dB with a reflector at fiber end (if reflected value >-3 dB) (only for SUN-OCI8110)
    ② Increase 20km with a reflector at fiber end (if reflected value >-3 dB) (only for SUN-OCI8110)

    Standard Package

    No. Product Unit Quantity
    1 Optical Cable Identifier set 1
    2 Power Adapter piece 1
    3 CD piece 1
    4 FC Adapter piece 1
    5 Headphone piece 1
    6 Fiber Reflector (only for SUN-OCI8110) piece 1
    7 FC/UPC-FC/APC Patchcord piece 1
    8 Knocking Stick piece 1
    9 Bag piece 1

  • Model Name Description
    SUN-OCI8110-20 Optical Cable Identifier SM, FC/APC optical port; Detection distance: 20km; VFL (Visual Fault Locator) function included; Suitable for cables with a connector (UPC) at another end
    SUN-OCI8110-40 Optical Cable Identifier SM, FC/APC optical port; Detection distance: 40km; VFL (Visual Fault Locator) function included; Suitable for cables with a connector (UPC) at another end
    SUN-OCI8120-40 Optical Cable Identifier SM, FC/APC optical port; Detection distance: 40km; Suitable for cables with a connector (UPC or APC) at another end
