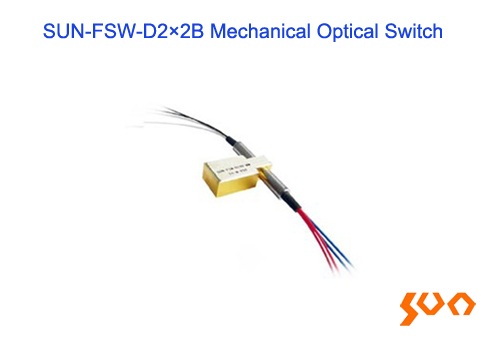

SUN-FSW-D2×2B Mechanical Optical Switch

Model: SUN-FSW-D2×2B

850nm and 1260nm~1650nm; High reliability, Low insertion loss

    Key Features

  • Unmatched Low Cost
  • Low insertion Loss
  • High Channel Isolation
  • High Stability, High Reliability
  • Epoxy-free on Optical Path
  • Latching or Non-latching
  • Description
  • Specifications

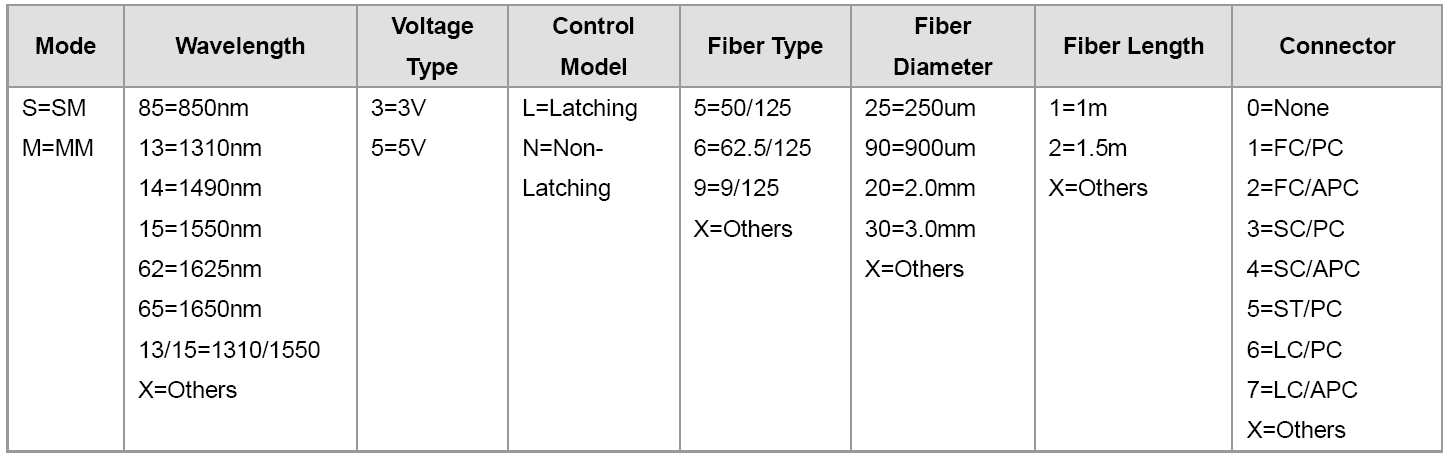

  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  • 　SUN-FSW-D2X2B Mechanical Optical Switch is used to turn on, turn off and switch optical signal. The D2x2B Mechanical Optical Switchis based on Advanced Optoelectronic Integrated Technology. With the development of optical communication, Optical Switch device is thekey to a new generation of all-optical network in near future.

    SUN-FSW-D2X2B Mechanical Optical Switch is not affected by the polarization and wavelength. It supports all wavelength at 850nm and 1260nm~1650nm, and It provides high reliability, low insertion loss, fast switching speed and bi-directional performance. They are widely used for multiplex OADM, cross connectors OXC, system testing and protection.
  • Specifications

    Parameters SUN-FSW-D2X2B
    Wavelength Range (nm) 850±40 1260 ~ 1650
    Test Wavelength (nm) 850 1310 / 1550
    Insertion Loss (dB) Typ : 1.0, Max: 1.5
    Return Loss (dB) MM ≥ 30, SM ≥ 50
    Crosstalk (dB) MM ≥ 30, SM ≥ 55
    PDL (dB) ≤ 0.05
    WDL (dB) ≤ 0.25
    Repeatability (dB) ≤ ±0.02
    Power Supply (V) 3.0 or 5.0
    Durability (Cycles) ≥ 10 Million
    Switching Time (ms) ≤8
    Optical Power (mW) ≤500
    Operating Temperature (℃) -20 ~ +70
    Storage Temperature (℃) -40 ~ +85
    Relative Humidity (%) 5 ~ 95
    Dimension (mm) (L)27×(W)12×(H)8.2

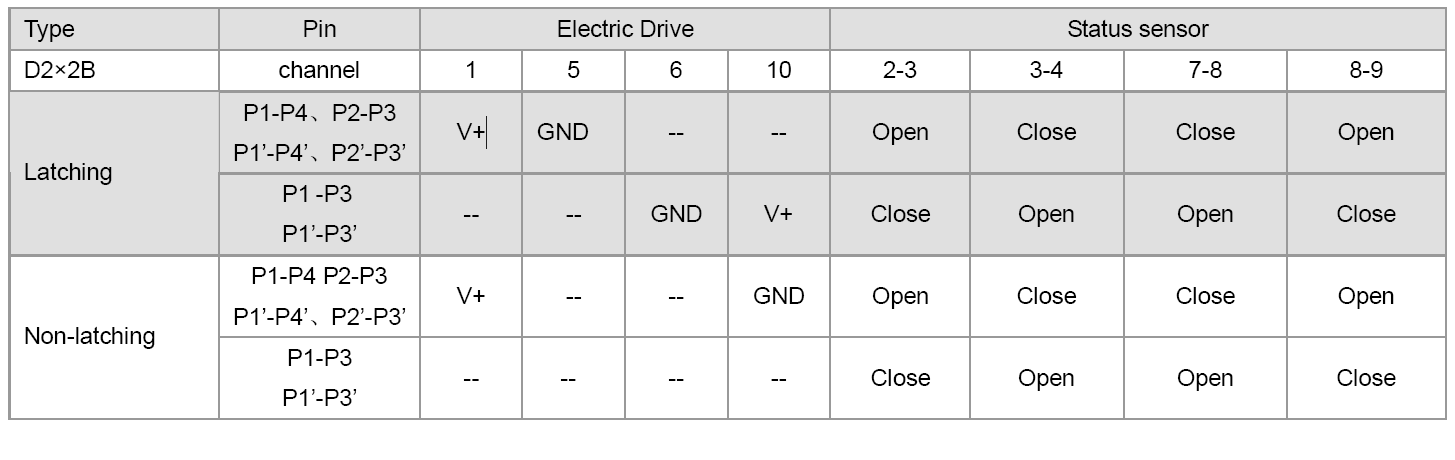

    PIN

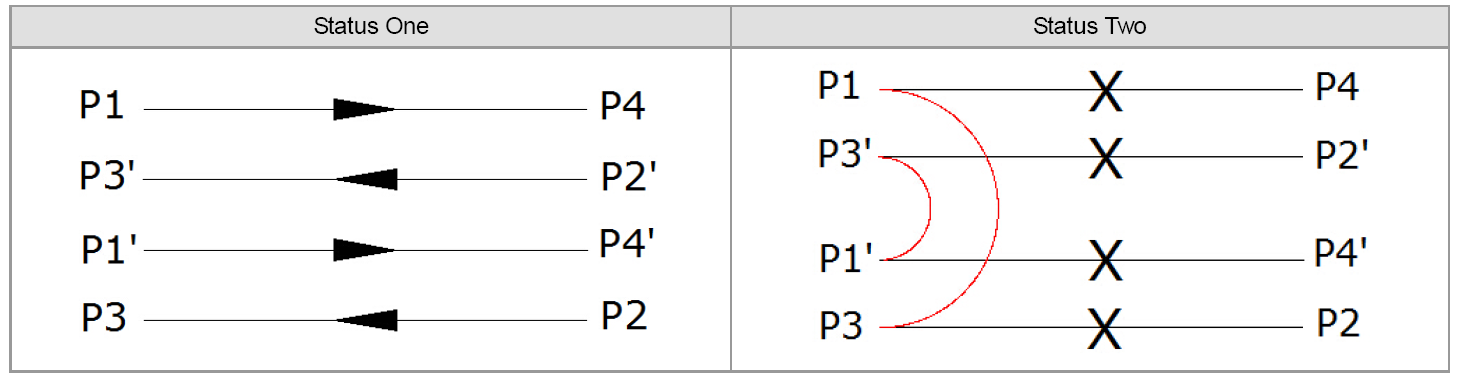

    Optical Route

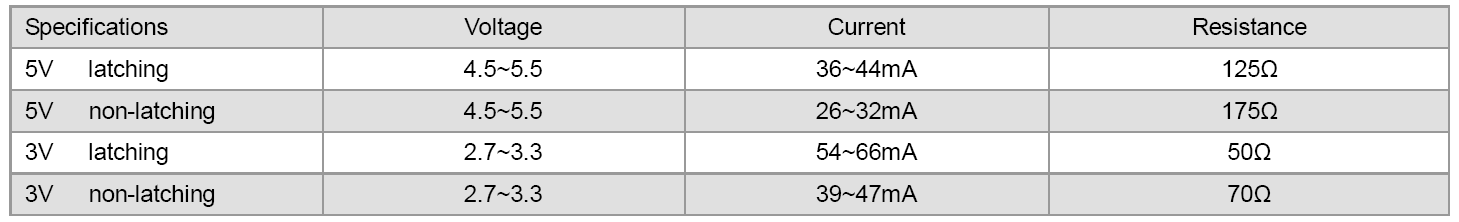

    Electric

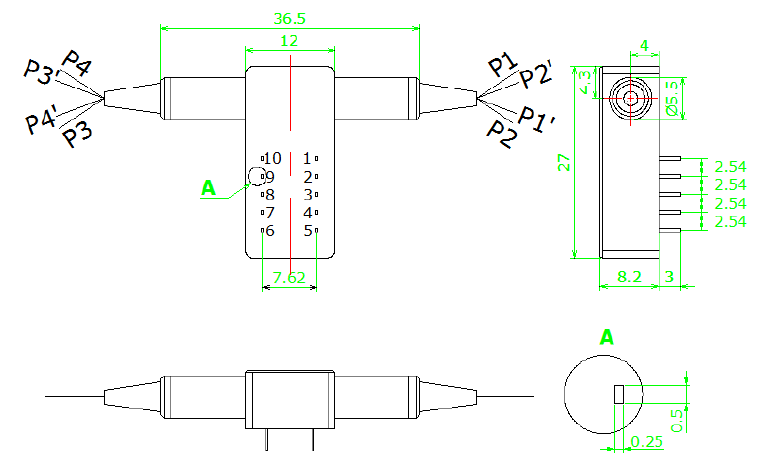

    Dimension




  • ● Ring Network
    ● Protection/Restoration
    ● Remote Monitoring in Optical Network
    ● Configurable Optical Add/Drop
    ● Transmitter and receiver protection
    ● Network Test System
