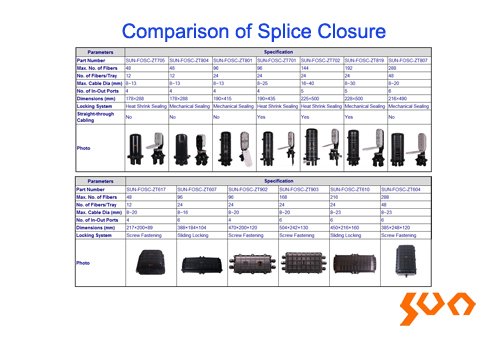

| Parameters | Specification | ||||||
| Part Number | SUN-FOSC-ZT705 | SUN-FOSC-ZT804 | SUN-FOSC-ZT801 | SUN-FOSC-ZT701 | SUN-FOSC-ZT702 | SUN-FOSC-ZT819 | SUN-FOSC-ZT807 |
| Max. No. of Fibers | 48 | 48 | 96 | 96 | 144 | 192 | 288 |
| No. of Fibers/Tray | 12 | 12 | 24 | 24 | 24 | 24 | 48 |
| Max. Cable Dia (mm) | 8~13 | 8~13 | 8~13 | 8~25 | 16~40 | 8~30 | 8~20 |
| No. of In-Out Ports | 4 | 4 | 4 | 4 | 5 | 5 | 6 |
| Dimensions (mm) | 178×288 | 178×288 | 190×415 | 190×435 | 225×500 | 228×500 | 216×490 |
| Locking System | Heat Shrink Sealing | Mechanical Sealing | Mechanical Sealing | Heat Shrink Sealing | Heat Shrink Sealing | Mechanical Sealing | Mechanical Sealing |
| Straight-through Cabling | No | No | No | Yes | Yes | Yes | No |
| Photo |  |
 |
 |
 |
 |
 |
 |
| Parameters | Specification | |||||
| Part Number | SUN-FOSC-ZT617 | SUN-FOSC-ZT607 | SUN-FOSC-ZT902 | SUN-FOSC-ZT903 | SUN-FOSC-ZT610 | SUN-FOSC-ZT604 |
| Max. No. of Fibers | 48 | 96 | 96 | 168 | 216 | 288 |
| No. of Fibers/Tray | 12 | 24 | 24 | 24 | 24 | 48 |
| Max. Cable Dia (mm) | 8~20 | 8~16 | 8~20 | 8~20 | 8~23 | 8~23 |
| No. of In-Out Ports | 4 | 6 | 4 | 6 | 6 | 6 |
| Dimensions (mm) | 217×200×89 | 388×184×104 | 470×200×120 | 504×242×130 | 450×216×160 | 385×248×120 |
| Locking System | Screw Fastening | Sliding Locking | Screw Fastening | Screw Fastening | Sliding Locking | Screw Fastening |
| Photo |  |
 |
 |
 |
 |
 |
