SFP+ (Small Form-factor Pluggable Plus) is a hot-swappable transceiver connected to the SFP+ port of a network switch, converting electrical signals to optical signals at the selected wavelength and vice versa. XGS-PON SFP+ transceiver is ideal for a symmetric 10Gigabit capable passive optical network (XGS-PON) system. It delivers 10G passive fiber internet access to meet the market requirements for a high-speed performance experience at a low cost. This article provides a quick guide to understanding XGS-PON SFP+ transceivers.
What is an XGS-PON and XGS-PON SFP+ Transceiver?
XGS-PON is an updated standard for PON (Passive Optical Network) that can support high-speed 10 Gbps symmetrical data transfer and is part of the family of standards known as Gigabit-capable PON, or GPON. GPON stands for Gigabit-capable Passive Optical Network (Gigabit PON), typically supporting downstream 2.5 Gbps and upstream 1.25 Gbps. The “X” in XGS represents the number 10, “G” stands for Gigabit, and the letter “S” stands for symmetrical, XGS-PON = 10 Gigabit Symmetrical PON. XGS-PON network components include XGS-PON OLT, XGS-PON ONT/ONU and XGS-PON SFP+.

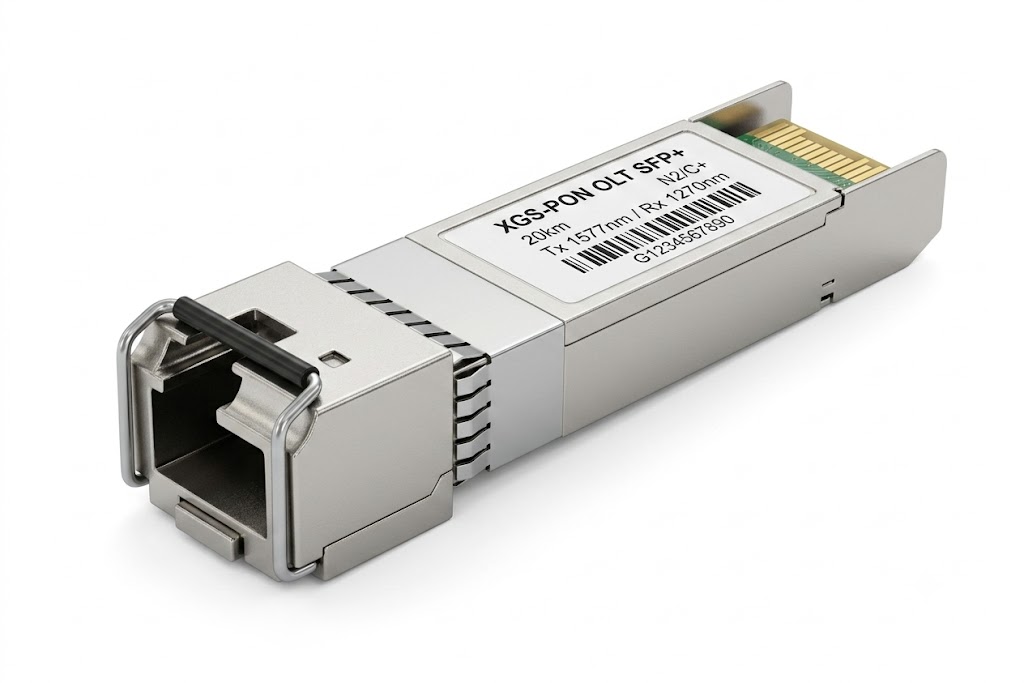

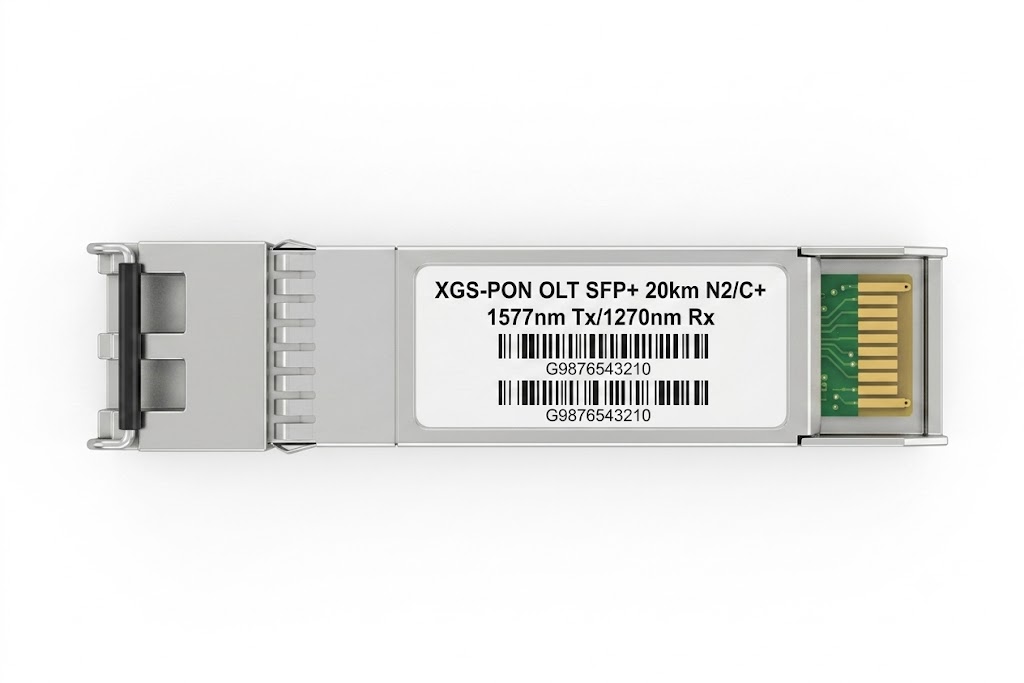

XGS-PON SFP+ transceiver is a hot-pluggable optical transceiver module designed for a 10Gigabit capable passive optical network (XGS-PON) system. It integrates bidirectional data transmission over one single-mode optical fiber (SMF). In addition, it provides a symmetric 9.953 Gbps upstream and 9.953 Gbps downstream data rate, reaching a stream up to 20km via an SC connector.
What Are the Features and Benefits of XGS-PON SFP+ Transceiver?
XGS-PON SFP+ transceiver provides the following features and benefits :
·Single fiber bi-directional data streams with downstream: 9.953Gbps, upstream: 9.953Gbps
·Low EMI (Electromagnetic Interference) design and cost-effective solution for FTTx deployment
·SFP+ package with SC receptacle connector
·1577nm (downstream) /1270nm (upstream)
·Hot-pluggable capability
·Operating case temperature range of 0 ~ 70°C
·Digital diagnostic monitor interface
Applications
XGS-PON SFP+ transceiver is used in XGS-PON OLT, point-to-multipoint (P2MP), FTTx, 10 Gigabits access networks, etc.
Conclusion
In conclusion, the XGS-PON SFP+ transceiver is designed for XGS-PON streams on up to 20km of SMF. It can provide users with a symmetric 9.953Gbps downstream/upstream and better support for applications that need to continuously occupy upstream bandwidth.
Sun Telecom specializes in providing one-stop total fiber optic solutions for all fiber optic application industries worldwide. Contact us if you have any needs.
