400G OSFP Optical Transceiver Module Solution for Data Center

Position : Home> News & Tutorial >Products

Date: 2026-07-29 09:46:27

Data centers are beginning to grow from 100G to higher speeds, higher bandwidth, and lower latency. 400G OSFP (Octal Small Form-Factor Pluggable ) has become the next-generation backbone upgrade and new construction direction. This article will give an introduction to OSFP optical transceiver modules.

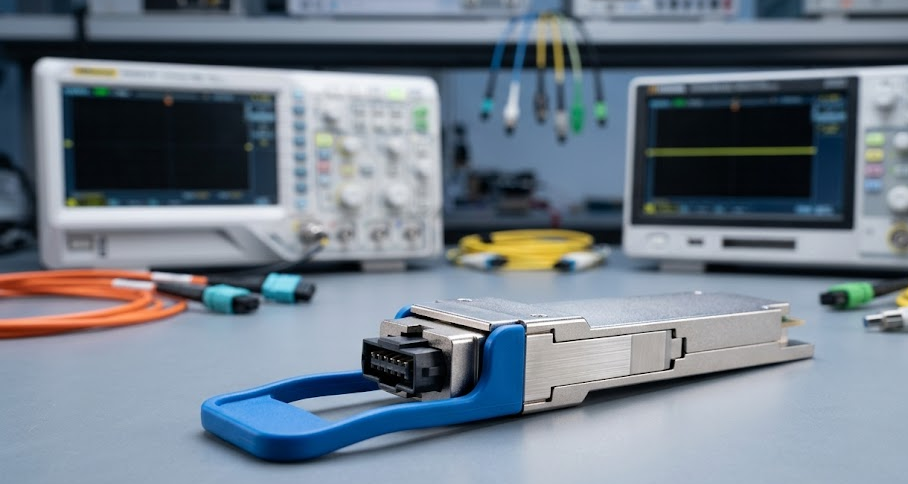

What is the OSFP Optical Transceiver Module?
OSFP is a new pluggable form factor with eight high-speed electrical lanes that support 400 Gbps via 8×50G (using PAM4 modulation). It is slightly broader and deeper than the QSFP-DD but still supports 36 OSFP ports per 1U front panel and 14.4 Tbps per 1U front-panel slot (36 × 400G). OSFP is designed with improved signal integrity and thermal performance to help the next generation of 800G optical transceiver modules that use eight lanes of 100Gbps (8×100G), allowing us to upgrade easily from 400G to 800G. Unlike QSFP-DD, OSFP does not offer native backward compatibility with 100G QSFP optics, as the physical form factor and electrical pinout are different. In addition, OSFP is available in single-mode (SM) and multi-mode (MM) fiber optic cables and includes digital diagnostics monitoring (DDM) to monitor parameters such as power, temperature, and voltage. 400G OSFP optical transceiver modules are available in OSFP SR8, OSFP DR4, OSFP DR4+, OSFP FR4, OSFP 2FR4, and OSFP LR4.

Application Scenarios and Connections
400G OSFP optical transceiver module is used in 400G Ethernet, data centers, telecommunications networks, cloud networks, enterprise networking, LAN, 5G, 4K video, Internet of Things( IoT), etc. Below are the steps to connect 400G OSFP optical transceiver modules.

Features and Benefits
·Hot-pluggable OSFP form factor
·Maximum link length of 80km over SMF
·Maximum data rate of 1600Gbps (8x 200 Gbps)
·Various connector (MPO/MTP, LC , CS)
·Operating temperature (0 to 70℃)

Conclusion

400G OSFP optical transceiver module provides a good solution for 400Gbps optical deployments in data centers and broadband access connectivity. It will meet rapidly growing customer demand for analytics, machine learning, and content delivery applications.
Sun Telecom specializes in providing one-stop total fiber optic solutions for all fiber optic application industries worldwide. Contact us if any needs.
