A Closer Look at SFP Port on Gigabit Switch

Date: 2026-07-22 13:48:25

SFP (Small Form Factor Pluggable) ports are essential in various network and storage devices, such as switches, servers, and routers. Gigabit switches often feature multiple SFP ports. What is the SFP port on a Gigabit switch? Find the answer in this article.

\

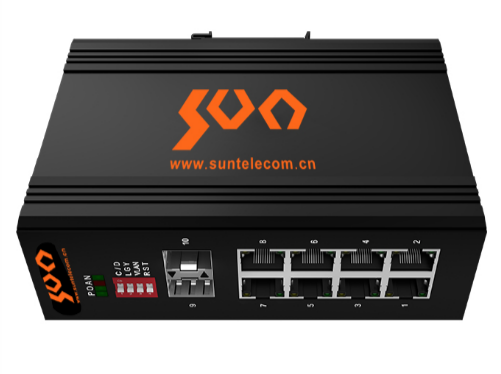

What is a Gigabit Switch?
A Gigabit switch, or Gigabit Ethernet switch, is an Ethernet network switch that allows devices to connect to a LAN at speeds up to 1 Gbps or higher. It delivers 1000Mbps on each of the ports on the switch. In addition, it has 8/16/24/48 port options and supports 10/100/1000BASE-T Ethernet. It is constructed with multiple RJ45 interfaces, SFP ports, and works well with twisted-pair copper cables and SFP optical transceivers.
\

What is the SFP Port on a Gigabit Switch?

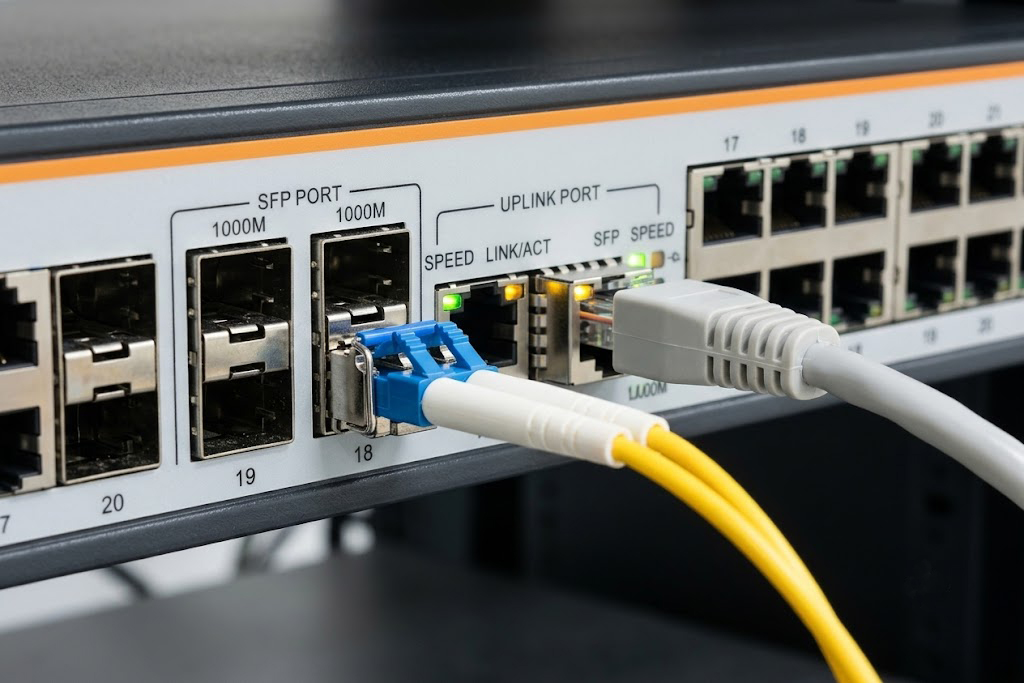

The SFP port on a Gigabit switch is a slot designed for use with SFP connectors to enable data transmission. It provides high speed and physical compactness. The SFP port allows optical or copper links on a Gigabit switch across the insertion of the corresponding SFP modules (fiber SFP or copper SFP).  SFP port can house an SFP module with an optical or electrical port. Correspondingly, fiber or copper cable is required to achieve data transmission.
When a copper SFP module (RJ45 interface) is inserted into the SFP port, network cables such as Cat5e/Cat6/Cat7 cables are required for data transmission. However, when a fiber SFP module (optical interface) is plugged into the SFP port, fiber optic cables have to be used to support connections. The SFP port itself is medium-agnostic; the plugged-in module determines the physical medium. Therefore, RJ45 SFP modules are generally used for short-range uplinks to connect an all-SFP distribution switch to an all-copper edge switch. Fiber SFP modules are used for high-speed fiber uplink over longer distances.

Types of SFP Ports

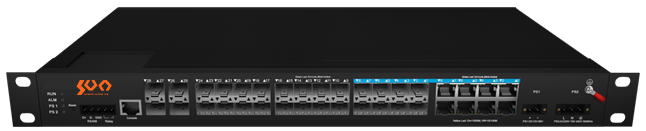

1) SFP Combo Ports
The combo port is a single interface with dual front ends (RJ45 or SFP port), supporting copper and optical SFP connections. However, these two physical interfaces (the fixed RJ45 port and the SFP slot) share the same switch port number and cannot be used simultaneously. Only one of them can be active at a time. Each SFP combo port is a single interface, offering a choice of two connections. One is an RJ-45 connection for a copper Ethernet cable, and the other is an SFP connection for a fiber optic cable.


\

2) SFP Uplink Ports
An SFP uplink port is a port for aggregation to higher links. It can connect to a regular port of another device. In a traditional 3-tier network topology, there is an access layer, distribution layer, and core layer from bottom to top. This means there are access, distribution, and core switches. An SFP downlink port is a downlink port for connecting to the end devices such as PCs; an uplink SFP port is to climb to a higher network layer for connecting to an upper-layer distribution or core switch. Note that a standard SFP uplink port on a Gigabit switch is limited to 1 Gbps. It can connect to an upper-layer switch's higher-speed port (e.g., 10G SFP+) only if the upper port explicitly supports 1G auto-negotiation or fallback; the physical link speed will still be capped at 1 Gbps. To achieve 10G/25G/40G uplinks, the switch must be equipped with corresponding SFP+/SFP28/QSFP+ slots, which are not standard SFP ports.
　　
Conclusion
An SFP port enables Gigabit switches to connect to a wide range of fiber and copper cables. It can extend the functions of switches across the network. It can support both copper RJ45 SFP modules and fiber SFP modules, offering flexible deployment choices depending on the transmission distance and cabling infrastructure.

Sun Telecom specializes in providing one-stop total fiber optic solutions for all fiber optic application industries worldwide. Contact us if you have any needs.
