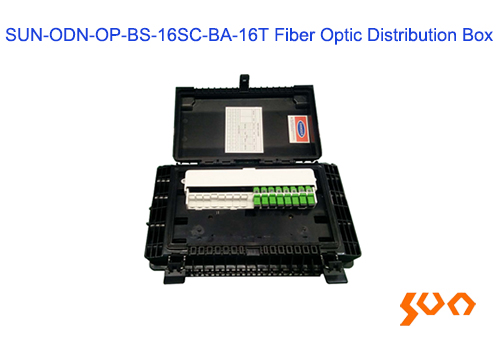

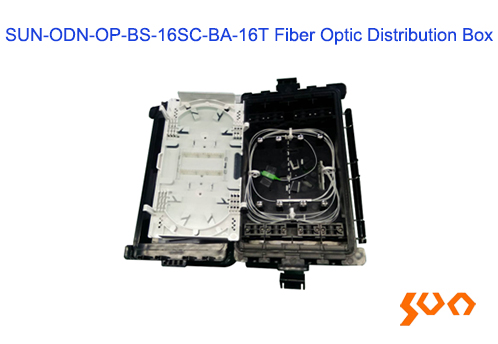

SUN-ODN-OP-BS-16SC-BA-16T Fiber Optic Distribution Box

Model: SUN-ODN-OP-BS-16SC-BA-16T

Can install two 1x8 PLC splitters and 16 pieces of SC or duplex LC (SC type) adapters, IP65

    Key Features

  • Compact size, light weight
  • Moisture-proof, dust-proof, water-proof (IP65), anti aging, anti corrosion, etc
  • Turn-over plate design, independent fiber route
  • 8 round cable ports applicable for max 12mm cables, and 16pcs ports for 2*3mm drop cables
  • Indoor or outdoor aerial mounted
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ

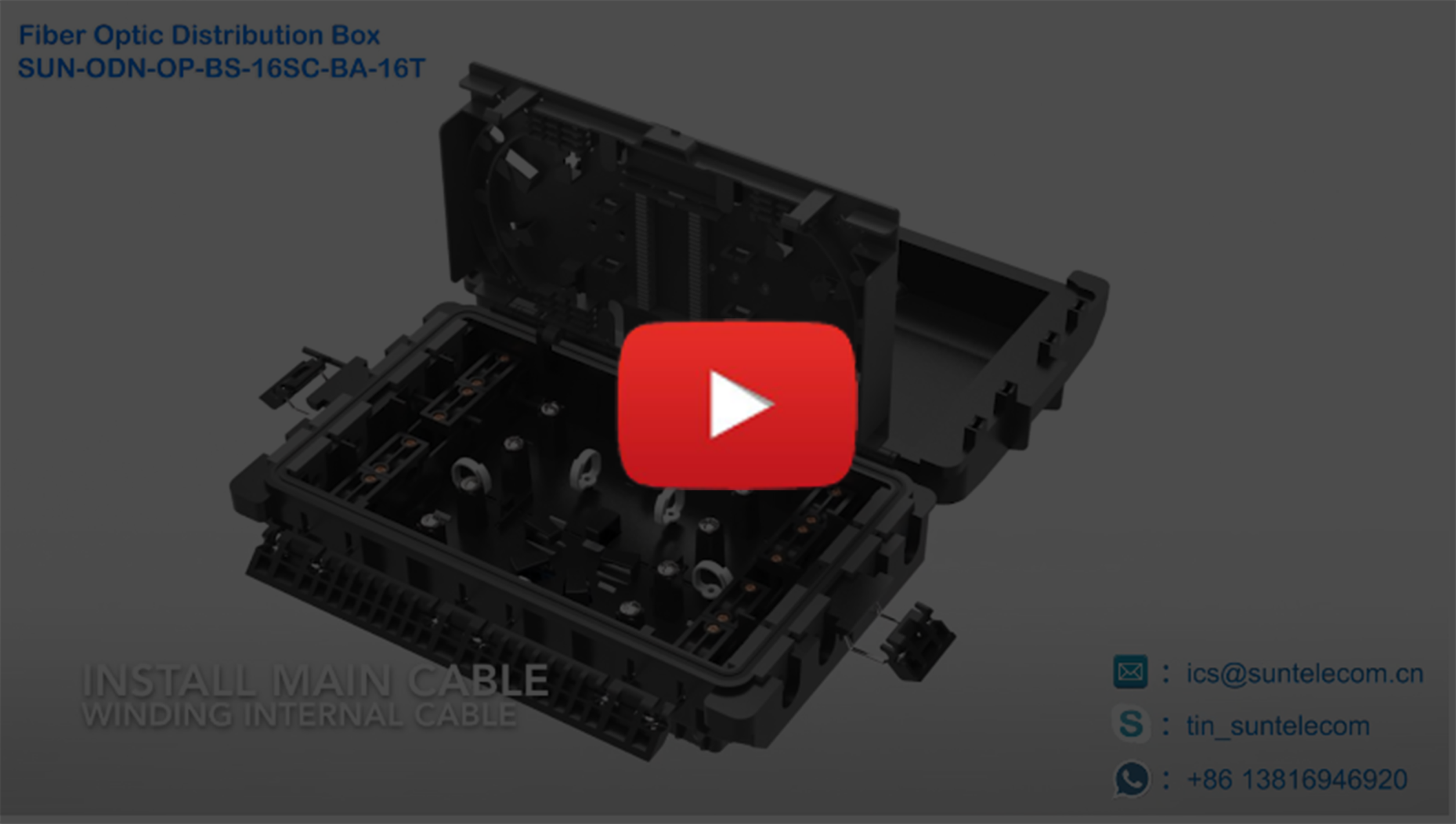

  • Product Video
  • Sun Telecom’s SUN-ODN-OP-BS-16SC-BA-16T fiber optic distribution box is widely used as a termination point for the connection of feeder cable and drop cable in FTTx communication network system. The fiber splicing, distribution, splitting, termination can be done inside the box. It provides solid protection and management for the FTTx networks.
    　
  • Parameters
    Specification
    Material
    Box
    PC+ABS
    Metallic Parts (Internal, external, aerial mount accessory)
    Stainless steel 304
    Splice Tray
    Type (cores/tray)
    24
    Quantity
    1
    Adapter Panel
    Adapter Type
    SC simplex or duplex LC (SC type)
    Quantity (pc)
    16
    Splitter
    Suitable Splitter Type
    1 x 8 blockless type PLC splitter
    Max. Quantity (pc)
    2
    Round Cable Port
    Max. Cable Diameter (mm)
    12
    Quantity (pc)
    8 (4pcs on left side, 4pcs on right side)
    Drop Cable Port
    Max. Cable Diameter (mm)
    2 x 3
    Quantity (pc)
    16
    IP Rating
    IP65
    Color
    Black
    Installation Method
    Aerial installation
    Temperature Range (°C)
    -20 ~ +85
    Relative Humidity (%) (+30°C)
    ≤85
    Atmospheric Pressure (Kpa)
    70~106
    Dimensions (mm)
    340(L) x 204(W) x 123(H)

    Standard Package
    No.
    Name
    Unit
    Quantity
    1
    Fiber Optic Distribution Box
    set
    1
    2
    Protective Sleeves (60mm)
    pieces
    24
    3
    Cable Ties
    pieces
    10
    4
    Fiber Protective Tube (Φ5mm)
    meter
    0.3
    5
    Aerial Mount Accessory
    set
    1
    6
    User's Manual
    piece
    1
    7
    Certificate
    piece
    1

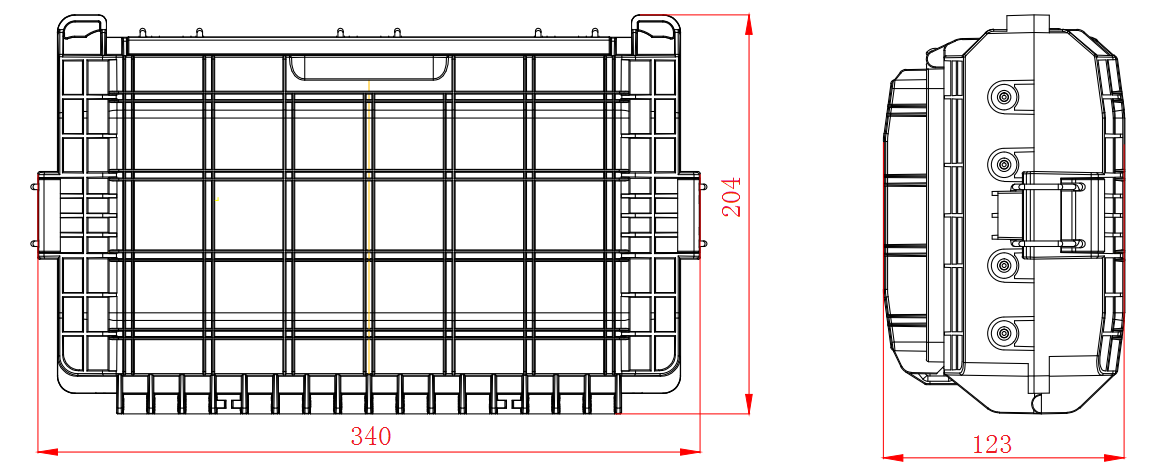

    Dimensions (unit: mm)

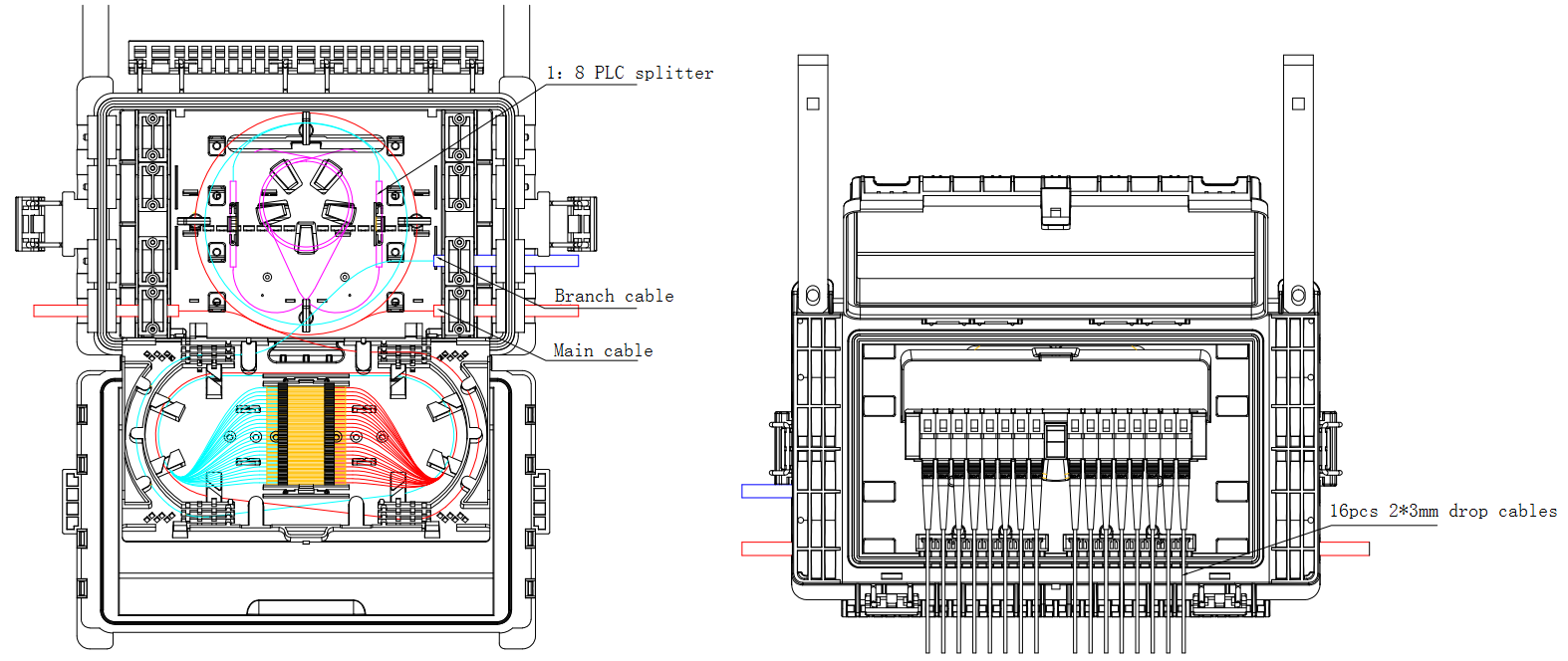

    Box structure and fiber route

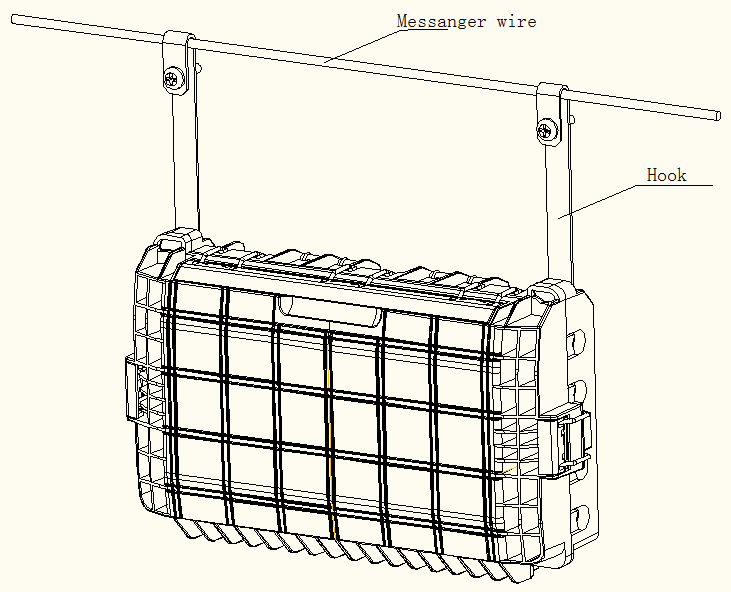

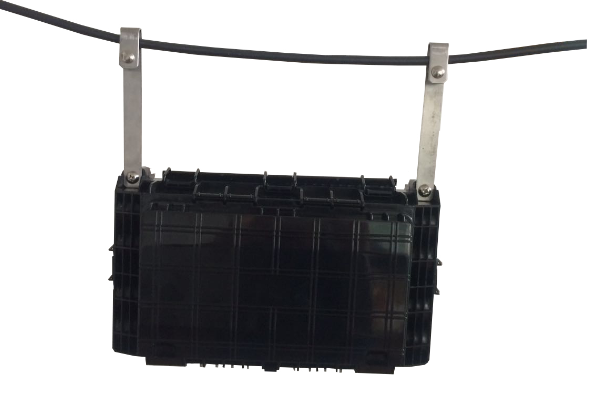

    Aerial installation
  •
    Model
    Name
    Description
    SUN-ODN-OP-BS-16SC-BA-16T
    Fiber Optic Distribution Box
    Black; Suitable for max 2 pieces of 1x8 blockless type PLC splitter; With the adaptor panel for max. 16 pieces of SC or duplex LC (SC type) adapters; Splitter and adapters NOT included; 8 cable input ports, 16 drop cable output ports; Material: PC+ABS; Dimensions (mm): 340(L) x 204(W) x 123(H); Aerial mounting accessories included


  • ● FTTH access networks
    ● Telecommunication networks
    ● CATV networks
    ● Local area networks
