Suitable for polishing FC ⁄ SC ⁄ ST ⁄ LC connectors
| No | Name | Model | Picture | Description | Quantity |
| 1 | Fiber Optic Stripper | SUN-FOT-101 |  |
Used for removing 2.0/3.0mm jackets | 1 |
| 2 | Fiber Optic Stripper | SUN-FOT-103 |  |
Used for removing coatings, buffers, and up to 3.0mm jackets | 1 |
| 3 | Fiber Optic Crimper | SUN-FOT-104P |  |
Used for crimping a variety of fiber optic connector parts (hexagon) | 1 |
| 4 | Fiber Optic Cable Slitter | SUN-FOT-201 |  |
Used for slitting central tubes and 2.0/3.0mm jackets | 1 |
| 5 | Fiber Optic Cable Slitter | SUN-FOT-203-1 |  |
Used for longitudinally or crosswise slitting cable outer jackets with 3.2 ~ 25mm diameters | 1 |
| 6 | Fiber Optic Cleaning Swab | SUN-FOT-304-2 |  |
2.5mm, sponge head; Used for cleaning adaptor sleeves or ferrule holes of polishing trays; 1pack (100pcs) | 1 |
| 7 | Fiber Optic Cleaning Wipe | SUN-FOT-305 |  |
IPA fiber cleaning wipes (Pre-moistened); 1pack (10pcs) | 1 |
| 8 | Fiber Optic Cleaning Wipe | SUN-FOT-307 |  |
Dust-free KimWipes, 1box (280pcs) | 1 |
| 9 | Fiber End-face Cleaner | SUN-FOT-310 |  |
Used for cleaning fiber optic connectors | 1 |
| 10 | Kevlar Scissors | SUN-FOT-403 |  |
Used for cutting Kevlar | 1 |
| 11 | Syringe | SUN-FOT-405-1 |  |
Apply to Semi-automatic Epoxy Injection Machine; 3ml, 1pack (10pcs) | 1 |
| 12 | Piano Wire | SUN-FOT-407 | Used for pushing the broken fiber out of the ferrule; 1box (3pcs) | 1 | |
| 13 | Tweezers | SUN-FOT-409 |  |
1 | |
| 14 | Bottle | SUN-FOT-411-100 |  |
Used to contain alcohol (Alcohol not included), 100ml | 1 |
| 15 | Glasses | SUN-FOT-413 |  |
1 | |
| 16 | Tape | SUN-FOT-414 |  |
1 | |
| 17 | Optical Fiber Scriber | SUN-FOT-415-S |  |
Blade material: tungsten steel | 1 |
| 18 | Knife | SUN-FOT-420 |  |
1 | |
| 19 | Mark Pen | SUN-FOT-421 |  |
Black | 1 |
| 20 | Bottle | SUN-FOT-426-60 |  |
Spray water bottle, 60ml | 1 |
| 21 | Fiber Optic Microscope | SUN-HMS400 |  |
400X, 2.5mm UPC universal male adaptor and 1.25mm UPC universal male adaptor included | 1 |
| 22 | Fiber Optic Heat Oven | SUN-HO-V24 |  |
Capacity: 24pcs of fiber optic connectors | 1 |
| 23 | Pointer Thermometer |  |
Pointer Thermometer for heat oven | 1 | |
| 24 | Polishing Tray | SUN-HPD-250 | 2.5mm ferrule universal handheld polishing tray | 1 | |
| 25 | Polishing Tray | SUN-HPD-ALC | LC/APC connector handheld polishing tray (after assembly) | 1 | |
| 26 | Polishing Pad | SUN-HPD-RP | Rubber, square | 1 | |
| 27 | Polishing Film | SUN-PM-F05-S | 0.5um, 140 x 113mm, used for hand polishing, 1pack (10pcs) | 1 | |
| 28 | Polishing Film | SUN-PM-F1-S | 1um, 140 x 113mm, used for hand polishing, 1pack (10pcs) | 1 | |
| 29 | Polishing Film | SUN-PM-F5-S | 5um, 140 x 113mm, used for hand polishing, 1pack (10pcs) | 1 | |
| 30 | Screw Driver |  |
4-IN-1 | 1 | |
| 31 | Parts Box | 1 | |||
| 32 | Tool Case | 430 x 330 x 135mm | 1 |
| Model | Name | Description |

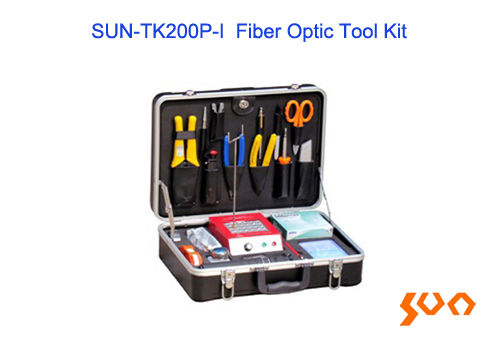

| SUN-TK200P-I | Fiber Optic Tool Kit | Suitable for polishing and solidifying FC/SC/ST/LC connectors (Fiber optic heat oven included) |
