Position: Home > Products > Test Equipment > OTDRs

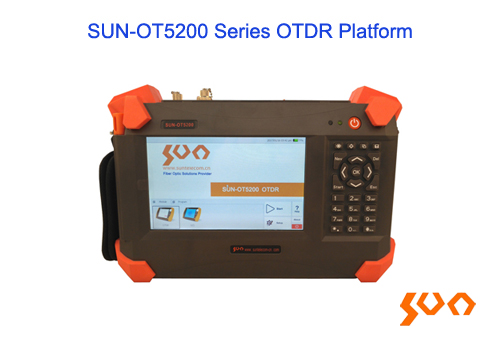

SUN-OT5200 OTDR Platform

Model: SUN-OT5200

OTDR platform, multi-function and high performance, dynamic range up to 50dB

    Key Features

  • Dynamic Range up to 50dB
  • Short zone: EDZ 0.8m, ADZ 4.5m
  • Auto/Manual test and analysis
  • Multi-wavelength testing
  • Visible laser source function
  • In-Line test and through Splitter test(1625/1650nm with filter)
  • OTDR module up to four wavelengths, SM/MM Option
  • Fault locating, fiber length/loss/return loss measurement, connector/ splice/ splitter/ macro bend/fiber-end detection
  • Direct printing function
  • Remote/local control by PC
  • Optimized power management: 10 hours continuous operation
  • Fast power up and off with Windows CE
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  • Sun Telecom's SUN-OT5200 series is the OTDR platform, which is specially designed for FTTX/WAN applications and can meet all test requirements of installers, contractors and service operators during network installation, construction, maintenance and troubleshooting. It is convenient and accurate for auto/manual testing, multi-wavelength testing and multi-functional analysis.

  • Specifications

       Parameters     Specification
    Display 8 inch TFT Touch Screen (800×480)
    Interface 2 x USB ports; 1 x 10/100Mbit/s RJ-45 port
    Memory 2GB flash card
    Power Rechargeable Li-Ion battery/ AC adapter
    Battery Operation Time (h) 10
    Operation Temp (°C) -20 ~ +50
    Storage Temp (°C) -40 ~ +60
    Humidity 0 ~ 95% (Non-Condensing)
    Dimensions (mm) 235×159×75mm
    Weight (kg) 1.5
    OTDR Module Wavelength (±20nm) Dynamic Range(dB)(1) EDZ (m) (2) ADZ(m) (2)
    SUN-OT5200-S2B 1310/1550 45/43 0.8 4
    SUN-OT5200-S3A-PL 1310/1550/1625 43/41/40 0.8 4
    SUN-OT5200-SM4A 850/1300/1310/1550 23/36/38/36 1 4.5/4.5/4/4
    Selectable Range (km) SM: 1.3, 2.5, 5, 10, 20, 40, 80, 160, 240
    MM: 1.3, 2.5, 5, 10, 20, 40
    Pulse Width SM: 5 ns, 10 ns, 30 ns, 100 ns, 300 ns, 1 µs, 2.5 µs, 10 µs, 20 µs
    MM: 5 ns, 10 ns, 30 ns, 1 µs, 2.5 µs
    Averaging Time Quick, 15s, 30s, 45s, 60s, 90s, 120s, 180s
    Emitter Type LD
    Connector FC/PC (Interchangeable SC, ST, LC)
    Distance Measure Accuracy ±(1m + 10-5 × distance + sampling spacing)
    Attenuation Detect Accuracy (dB) ± 0.05
    Reflection Detect Accuracy (dB) ± 4
    Visible Laser Source Output power: ≥ -3 dBm MOD frequency: 1 Hz Detecting range: 5 Km
    MCI100 Optical Connector Inspector Module (Optional)
    Field of View (µm) 400 x 300
    Resolution (µm) ≤ 1.5
    Focusing Manual Focus
    Microscope Dimensions (mm) Ø32 x 175
    LS100 Stabilized Laser Source (Optional)
    Wavelength (±20nm) Same as OTDR’s
    Output Power (dBm) ≥ -7
    PM100 Normal Power Meter Module(Optional)
    Calibrated Wavelength(nm) 850 /1300/1310/1490/1550/1625/1650
    Measurement Range (dBm) -70 ~ +6 (-60 ~ +6 @850 nm)
    Detector Type InGaAs
    Display Resolution (dB) 0.01
    Accuracy (nW) ± 5% ± 0.01 (±0.5 dB @850 nm)

     * Specifications subject to change without notice
    Notes:
    (1) Dynamic range measurement at 20 µs pulse width and 3min averaging time
    (2) Dead Zone measurement at 0.6km and reflection <-45 dB; EDZ measurement at 5 ns, ADZ measurement at 10 ns


    Standard Package

    No. Name Unit Quantity
    1 OTDR Platform set 1
    2 Lithium Battery piece 1
    3 USB Disk piece 1
    4 USB Cable piece 1
    5 Carrying Bag piece 1

    Optional Accessories
    No. Name Unit Quantity
    1 SC Adapter piece 1
    2 ST Adapter piece 1
    3 MCI Test Handle piece 1
    4 1.25mm Universal APC Male Adapter (Suitable for MCI Test Handle) piece 1
    5 2.5mm Universal APC Male Adapter (Suitable for MCI Test Handle) piece 1
    6 SC/APC Female Adapter (Suitable for MCI Test Handle) piece 1
    7 FC/APC Female Adapter (Suitable for MCI Test Handle) piece 1
    8 LC/APC Female Adapter (Suitable for MCI Test Handle) piece 1
    9 Link Image Software piece 1

  • Model Name Description
    SUN-OT5200-S2B OTDR Platform SM 1310/1550 nm, dynamic range: 45/43 dB, FC/UPC port; including VFL function
    SUN-OT5200-S3A-PL OTDR Platform SM 1310/1550/1625 nm, dynamic range: 42/41/40 dB, FC/UPC port; including VFL, In-Line test and through Splitter test
    SUN-OT5200-SM4A OTDR Platform SM&MM 850/1300/1310/1550 nm, dynamic range: 23/36/38/36 dB, FC/UPC port; including VFL function
    SUN-OT5200-P Optical Power Meter Module Wavelength: 850/1300/1310/1490/1550/1625/1650 nm; Measure range: -70 ~ +10 dBm (-60 ~ +10 dBm @850 nm); If need the function, should add "-P" behind the model
    SUN-OT5200-L Light Source Module The wavelength is same as the OTDR; Output power: ≥ -7 dBm; If need the function, should add "-L" behind the model
    SUN-OT5200-M MCI Module If need this function, add “-M” behind the model

  • ● Optical network installation and troubleshooting
    ● Backbone optical network
    ● WAN, Access network and LAN fiber test
