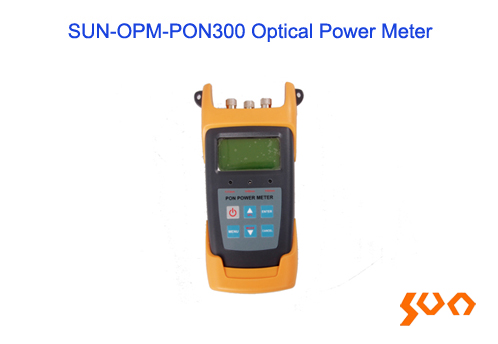

SUN-OPM-PON300 Optical Power Meter

Position: Home > Products > Test Equipment > Power Meters

Model: SUN-OPM-PON300

FC ⁄ SC ⁄ ST, EPON GPON test, USB port

Key Features

EPON/GPON test
Measurement of all three wavelengths (1310nm ,1490nm, 1550nm) on the fiber simultaneously
USB connection for data transfer
Optional normal optical power meter and visual fault locator modules

Description
Specifications
Ordering Information
Applications
FAQ
Product Video

　Sun Telecom’s SUN-OPM-PON300 series of optical power meter can test the optical power values of voice, data and video signals, supporting EPON/GPON test. It is ideal for PON network construction and maintenance.

Specifications

Parameters	Specification
1310nm Upstream Measurement
Wavelength Range (nm)	1260~1360
Measurement Range (dBm)	-35~10
Input Power (max) (dBm)	15
Isolation@1490/1550 (dB)	>40
Burst Mode Measurement Error (dB)	<±0.5
1490nm Downstream Measurement
Wavelength Range (nm)	1470~1505
Measurement Range (dBm)	-35~10
Input Power (max) (dBm)	15
Isolation@1310/1550nm (dB)	>40
1550nm Downstream Measurement
Wavelength Range (nm)	1535~1570
Measurement Range (dBm)	-35~10
Input Power (max) (dBm)	25
Isolation@1310/1490nm (dB)	>40
Measurement Accuracy
Uncertainty (dB)	±0.5
Linearity (dB)	±0.1
Insertion Loss (dB)	<1.5
General Information
Detector Type	InGaAs
Optical Port	FC/SC/ST interchangeable port
Fiber Type (um)	SM 9/125
Measurement Unit	dB/dBm/xW
Resolution (dB)	0.01
Power Supply (V)	3*AA1.5V Battery
Continuously Operation Time (h)	PON: 90; OPM: 100; VFL: 50
Operation Temperature (°C)	-10~60
Storage Temperature (°C)	-25~70
Dimensions (mm)	192(L) x 102(W) x 50(H)
Normal Optical Power Meter Module (Optional)
Connatural Uncertainty (dB)	±0.5
Linearity (dB)	±0.1
Measurement Range (dBm)	-70~6
Measurement Unit	dB/dBm
Resolution (dB)	0.01
Calibration Wavelength (nm)	1310/1490/1550/1625
Detector Type	InGaAs
Red Light Source (VFL) Module (Optional)
Output Power (mW)	>0.5
Wavelength (nm)	650
Fiber Type	SM/MM

Standard Accessories

No.	Product	Unit	Quantity
1	Optical Power Meter	set	1
2	AA 1.5V Battery	pieces	3
3	Software CD	piece	1
4	Soft Bag	piece	1
5	FC/PC Adapter	piece	1

Optional Accessories

No.	Product	Unit	Quantity
1	SC/PC Adapter	piece	1
2	ST/PC Adapter	piece	1

Model	Name	Description
SUN-OPM-PON300	Optical Power Meter	Handheld, FC/SC/ST interchangeable port; PON Optical Power Meter Functions, 1310/1490/1550nm; Measurement range: -35~+10dBm
SUN-OPM-PON300P	Optical Power Meter	Handheld, FC/SC/ST interchangeable port; Including: (1) PON Optical Power Meter Functions, 1310/1490/1550nm; Measurement range: -35~+10dBm; (2) Normal Optical Power Meter Functions; 1310/1490/1550/1625nm; Measuring range: -70~+6dBm
SUN-OPM-PON300V	Optical Power Meter	Handheld, FC/SC/ST interchangeable port; Including: (1) PON Optical Power Meter Functions, 1310/1490/1550nm; Measurement range: -35~+10dBm; (2) Red Light Source (VFL) Module: 650nm; Output power: >0.5mW
SUN-OPM-PON300VP	Optical Power Meter	Handheld, FC/SC/ST interchangeable port; Including: (1) PON Optical Power Meter Functions, 1310/1490/1550nm; Measurement range: -35~+10dBm; (2) Normal Optical Power Meter Functions; 1310/1490/1550/1625nm; Measuring range: -70~+6dBm; (3) Red Light Source (VFL) Module: 650nm; Output power: >0.5mW

● Communications network
● FTTx Engineering
