SUN-ODN-JZ24N Series Fiber Optic Distribution Box

Model: SUN-ODN-JZ24N

    Key Features

  • Protection rating IP65
  • Moisture-proof, water-proof and anti-aging
  • Indoor or outdoor wall/pole mount
  • SC adapter panel
  • Fast connector applicable
  • Suitable for blockless type PLC splitter
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  • Sun Telecom’s SUN-ODN-JZ24N series fiber optic distribution boxes are widely used as a termination point for the feeder cable to connect with the drop cable in the FTTx communication network system. The fiber splicing, splitting and distribution can be done in these boxes. These series of boxes provide solid protection and management for the FTTx networks.
  • Parameters Specification
    No. of Fibers/Tray 24 (two sleeves per slot)
    Max. no. of Splice Tray (pieces) 8
    Max. Capacity of Fibers 1 192
    Splitter Type Blockless type
    Max. No. of Splitter 2 1pc of 1:16 blockless type splitter
    or 1pc of 1:8 blockless type splitter
    or 1pc of 1:16 and 1pcs of 1:8  blockless type splitter
    Adaptor Type SC, DLC (SC type)
    No. of Adapters 24
    Box Material PC+ABS
    No. of Inlet and Outlet Ports 4 in 24 out
    Cable Gland Size PG13.5
    Qty 2
    Mid-span  Support
    Max. Cable Diameter of mid-span port (mm) 13.5
    Suitable Cable Type of output ports (mm) 2x3mm drop cable or ≤4.5mm round cable or upon customer request
    Environmental Temperature (°C) -25 ~ +55
    Color Gray, (black color is optional but with MOQ)
    Mounting Method Wall mounting or pole mounting
    Dimensions (mm) 353(L)x212(W)x106(H)
    Note: 1 The max capacity of fibers not including the situation of installing blockless type PLC splitter.

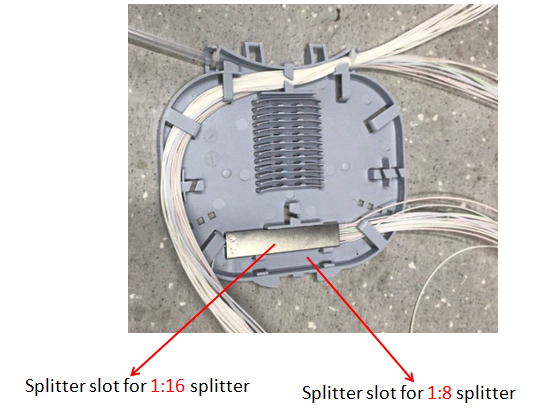

              2 There are two different sizes of splitter slots on the splice tray (see below picture), so it can fix 1pc of 1:16 or 1pc of 1:8 or 1pc of 1:16 and 1pc of 1:8 at the same time. But it can’t fix 2pcs of 1:16 or 2pcs of 1:8 at the same time.


    Standard Package
    No. Product Unit Quantity
    1 Box set 1
    2 Ties pieces According to no. of trays
    3 Key piece 1
    4 Protective Sleeves pieces According to no. of fibers
    5 Protective Tube (0.3 meter) piece 1
    6 Wall Mount Accessory set 1

    Optional Accessories
    No. Product Unit Quantity
    1 Pole Mount Accessory set 1

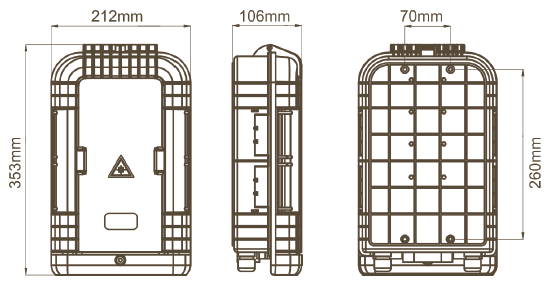

    Structure Drawing (mm)
  • Model Name Description
    SUN-ODN-JZ24N-F-48-GW Fiber Optic Distribution Box 48 fibers, 3 trays of 24 fibers/tray (12 slots/tray) included: 2 tray for splicing and 1 tray for PLC splitter installation; Max.24 pieces of SC or duplex LC (SC type) adapters(adapters NOT included); Max 1 piece of 1:16 blockless type PLC splitter(splitter NOT included); 4 cable input ports(mid-span port included); 24pcs output ports; Material: PC+ABS, gray color, dimensions (mm): 353(L)x212(W)x106(H); Wall mount accessories included
    SUN-ODN-JZ24N-F-144-GW Fiber Optic Distribution Box 144 fibers, 7 trays of 24 fibers/tray (12 slots/tray) included: 6 tray for splicing and 1 tray for PLC splitter installation; Max.24 pieces of SC or duplex LC (SC type) adapters(adapters NOT included); Max 1 piece of 1:16 blockless type PLC splitter(splitter NOT included); 4 cable input ports(mid-span port included); 24pcs output ports; Material: PC+ABS, gray color, dimensions (mm): 353(L)x212(W)x106(H); Wall mount accessories included
    SUN-ODN-JZ24N-F-168-GW Fiber Optic Distribution Box 168 fibers, 8 trays of 24 fibers/tray (12 slots/tray) included: 7 tray for splicing and 1 tray for PLC splitter installation; Max.24 pieces of SC or duplex LC (SC type) adapters(adapters NOT included); Max 1 piece of 1:16 blockless type PLC splitter(splitter NOT included); 4 cable input ports(mid-span port included); 24pcs output ports; Material: PC+ABS, gray color, dimensions (mm): 353(L)x212(W)x106(H); Wall mount accessories included
    SUN-ODN-JZ24N-F-192-GW Fiber Optic Distribution Box 192 fibers, 8 trays of 24 fibers/tray (12 slots/tray) included: 7 tray only for splicing and 1 tray for both splicing and PLC splitter installation; Max.24 pieces of SC or duplex LC (SC type) adapters(adapters NOT included); Max 1 piece of 1:16 blockless type PLC splitter(splitter NOT included); 4 cable input ports(mid-span port included); 24pcs output ports; Material: PC+ABS, gray color, dimensions (mm): 353(L)x212(W)x106(H); Wall mount accessories included
    SUN-ODN-JZ24N-F-48-GP Fiber Optic Distribution Box 48 fibers, 3 trays of 24 fibers/tray (12 slots/tray) included: 2 tray for splicing and 1 tray for PLC splitter installation; Max.24 pieces of SC or duplex LC (SC type) adapters(adapters NOT included); Max 1 piece of 1:16 blockless type PLC splitter(splitter NOT included); 4 cable input ports(mid-span port included); 24pcs output ports; Material: PC+ABS, gray color, dimensions (mm): 353(L)x212(W)x106(H); Pole mount accessories included
    SUN-ODN-JZ24N-F-144-GP Fiber Optic Distribution Box 144 fibers, 7 trays of 24 fibers/tray (12 slots/tray) included: 6 tray for splicing and 1 tray for PLC splitter installation; Max.24 pieces of SC or duplex LC (SC type) adapters(adapters NOT included); Max 1 piece of 1:16 blockless type PLC splitter(splitter NOT included); 4 cable input ports(mid-span port included); 24pcs output ports; Material: PC+ABS, gray color, dimensions (mm): 353(L)x212(W)x106(H); Pole mount accessories included
    SUN-ODN-JZ24N-F-168-GP Fiber Optic Distribution Box 168 fibers, 8 trays of 24 fibers/tray (12 slots/tray) included: 7 tray for splicing and 1 tray for PLC splitter installation; Max.24 pieces of SC or duplex LC (SC type) adapters(adapters NOT included); Max 1 piece of 1:16 blockless type PLC splitter(splitter NOT included); 4 cable input ports(mid-span port included); 24pcs output ports; Material: PC+ABS, gray color, dimensions (mm): 353(L)x212(W)x106(H); Pole mount accessories included
    SUN-ODN-JZ24N-F-192-GP Fiber Optic Distribution Box 192 fibers, 8 trays of 24 fibers/tray (12 slots/tray) included: 7 tray only for splicing and 1 tray for both splicing and PLC splitter installation; Max.24 pieces of SC or duplex LC (SC type) adapters(adapters NOT included); Max 1 piece of 1:16 blockless type PLC splitter(splitter NOT included); 4 cable input ports(mid-span port included); 24pcs output ports; Material: PC+ABS, gray color, dimensions (mm): 353(L)x212(W)x106(H); Pole mount accessories included
