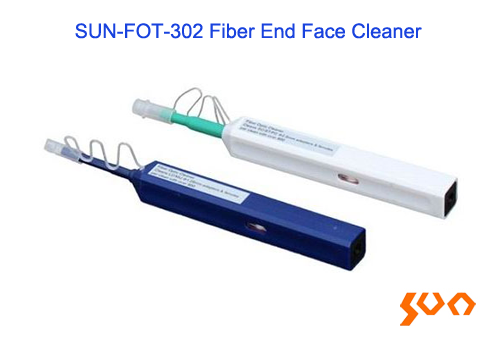

Pen type In-Adaptor ferrule cleaner with high performance and high efficiency
| Parameters | Specification | |
| Model Name | SUN-FOT-302-1 | SUN-FOT-302-2 |
| Applicable Connector Type | LC, MU | SC, FC, ST |
| Applicable Ferrule Diameter (mm) | 1.25 | 2.5 |
| Life Time | 800 times | |
| Model | Name | Description |

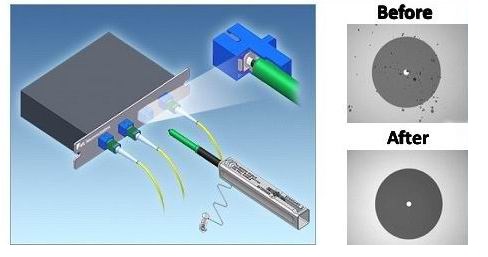

| SUN-FOT-302-1 | Fiber End Face Cleaner | One-click; Used for cleaning the male or female heads of 1.25mm universal ferrules |
| SUN-FOT-302-2 | Fiber End Face Cleaner | One-click; Used for cleaning the male or female heads of 2.5mm universal ferrules |

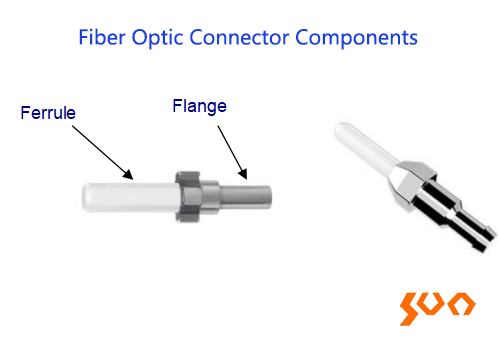

Fiber Optic Connector Components
Model:
LC ⁄ SC ⁄ FC ⁄ ST ⁄ E2000，SM ⁄ MM, APC ⁄ UPC, Low insertion loss high return loss, unassembled, pre-assembled
Features
Telecom network Data transmission network CATV, LAN & Access Network Fiber Optic Patch Cord & Pigtail
Fiber Optic Patch Cords and Pigtails
Model:
Different interface optional, Easy operation, Low insertion loss
Features
Low insertion loss High return loss Good repeatability High temperature stability
SUN-OT5000 OTDR
Model: SUN-OT5000
Can test SM and MM fibers, optional light source, VFL and power meter
Features
Quick startup FTTX in-service testing (Up to1:64 splitter) Built-in PON power meter for Triple-play testing High configuration series include optical light source, optical power meter, visual fault locator (VFL) and Optical Connector Inspector (MCI) modules USB data interface (PC software for batch data processing and report output) Dustproof and shockproof (2-meter drop test) Light weight, small size, rugged design and simple operation Visual link image software (Optional)
SUN-1000 Ethernet Media Converter
Model: SUN-1000
10 ⁄ 100 ⁄ 1000Mbps, 1xRJ45, 1xOptical port
Features
Compliance with IEEE standards MTBF of more than 50000 hours Full & half duplex operation and auto-negotiation Electric interface self-adapting parallel/crossover connections Longest 1552 byte data packet transmission QoS ensuring VoIP data packet transmission STP Spanning Tree forming a redundant network Low power consumption and low heat for longtime stable operation Single/Multi mode and Single/Dual fiber transmission modes Network Management Function (optional)
SUN-ODB-RM2C Fiber Optic Terminal Box
Model: SUN-ODB-RM2C
Used in CO as a cable termination 19-inch Rack mount sliding type
Features
19-inch standard structure Sliding design, rack mounted FC square/SC/DSC/ST adapter panel
SUN-HMS Fiber Optic Microscope
Model: SUN-HMS
200X 400X Optical Magnification, FC ⁄ SC ⁄ ST, LC ⁄ MU, SMA905 interfaces
Features
Both PC and APC end face inspection Built-in infrared attenuation filter for safety and reliability Momentary on/off switch control Precise focal length adjustment
SUN-OC-SLT-SP GYTS Cable
Model: SUN-OC-SLT-SP
GYTS, Loose Tube Light-armored (Steel Tape) Cable, 2-144cores
Features
Good mechanical and temperature performance High hydrolysis resistance and high strength loose tube Good crush resistance and flexibility High tensile strength ensured by steel wire Good moisture-proof ensured by PSP Gopher protected cable
