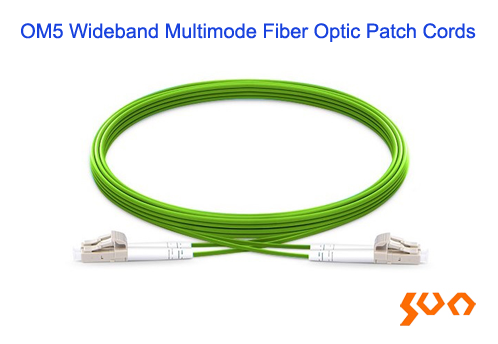

OM5 Wideband Multimode Fiber Optic Patch Cords

Model:

Low insertion loss, high return loss

    Key Features

  • Low insertion loss
  • High return loss
  • Good repeatability
  • High temperature stability
  • Meet IEC 60793-2-10 and TIA-492AAAE standards
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  • Sun Telecom's OM5 wideband multimode fiber optic patchcord is optimized for multi-wavelengths transmission systems which operate in the wavelength range of 850~950 nm. It supports the application of Shortwave Wavelength Division Multiplexing (SWDM), which can reduce parallel fiber count from 8 to 2, and improve fiber transmission efficiency. It can transmit up to 400m on the rate of 40 Gb/s or up to 150m on the rate of 100 Gb/s.
  • Fiber Optic Characteristics
    Parameters Specification
    Geometrical Characteristics
    Core Diameter (um) 50 ± 2.5
    Core Non-Circularity (%) ≤ 5.0
    Cladding Diameter (um) 125.0 ± 0.8
    Cladding Non-circularity (%) ≤ 0.6
    Coating Diameter (um) 245 ± 7
    Coating/cladding Concentricity Error (um) ≤ 10.0
    Coating Non-Circularity (%) ≤ 6.0
    Core/cladding Concentricity Error (um) ≤ 1.0
    Optical Characteristics
    Attenuation  (dB/km) 850nm ≤ 2.4
    953nm ≤ 1.7
    1300nm ≤ 0.6
    Overfilled Modal Bandwidth (MHz.km) 850nm ≥ 3500
    953nm ≥ 1850
    1300nm ≥ 500
    Effective Modal Bandwidth (MHz.km) 850nm ≥ 4700
    953nm ≥ 2470
    Application Support Distance (m) 40&100 Gigabit Ethernet @ 850nm 200
    10GBASE-SR @850nm 600
    1000BASE-SX @850nm 1100
    Effective Group Index of Refraction 850nm 1.482
    1300nm 1.477
    Zero Dispersion Wavelength (nm)
    Macro Bending Loss (dB) 2 turns @15mm radius ≤ 0.1 @850nm
    ≤ 0.3 @1300nm
    2 turns @7.5mm radius ≤ 0.2 @850nm
    ≤ 0.5 @1300nm

    Specifications
    Parameters Specification
    Fiber Type OM5
    Insertion Loss (dB) ≤ 0.3
    Return Loss (dB) ≥ 35
    Connector Type LC/UPC or SC/UPC
    Fiber Cores Simplex or Duplex
    Material of Outer Jacket PVC or LSZH
    Cable Length 1m, 3m, 10m, 30m, or customized
    Durability (dB) △IL≤ 0.2, 500 times
    Repeatability (dB) ≤ 0.1
    Tensile Strength (kg) ≥ 10
    Operating Temperature (℃) -40 ~ +85

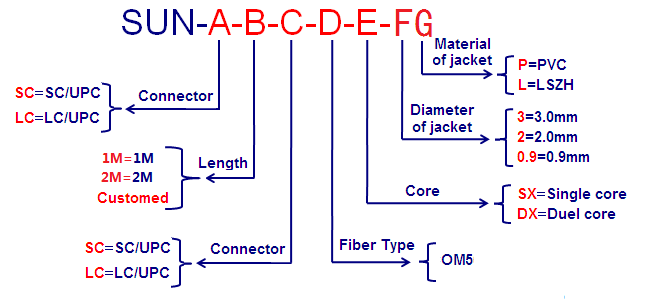

  • Example: SUN-SC-1M-SC-OM5-SX-3L
    SC/UPC-SC/UPC; Total length: 1M (Tolerance: 0~0.1M); OM5, Simplex, 3.0mm round cable, LSZH jacket

  • ● SWDM transceiver
    ● Fiber optic communication systems
    ● Fiber optic access network
    ● Fiber optic data transmission
