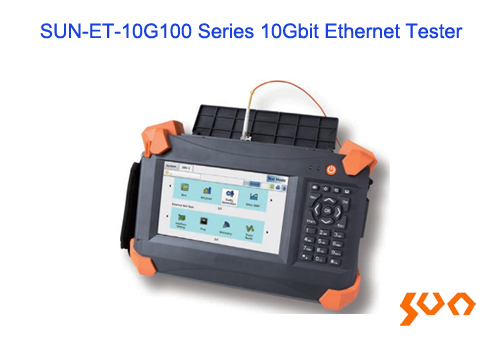

SUN-ET-10G100 10G Ethernet Tester

Model: SUN-ET-10G100

10Gbit Ethernet Tester, Wavelength: 850/1310/1550nm

    Key Features

  • 7 inch color LCD touch screen
  • PC remote control
  • Test profiles and data management, USB/FTP transfer
  • 10M~10Gb/s bandwidth,
  • Supporting LAN and WAN mode
  • Supporting Layer 1/2/3/4 BERT test
  • Supporting RFC2544 and Y.1564 test
  • Supporting VLAN and VLAN Q-in-Q test
  • Supporting MPLS test with multiple MPLS tags
  • Supporting QoS and ToS/DSCP priority testing
  • Intelligent detection and remote control loopback test
  • Lithium battery up to 4 hours continuous testing
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  • Sun Telecom's SUN-ET-10G100 series of 10Gbit Ethernet tester provides a test solution for next generation Ethernet. It can provide many kinds of test functions and can help clients to verify the performance of their Ethernet. It has two 10/100/1000M RJ45 ports , two 100/1000M SFP slots and two 10Gbps SFP+ slots, and provides services of installation, maintenance and activation.
  • Specification
    Item Specification
    Number of Interface 7 (2 x 1G Base-T Ports, 2 x 1.25G SFP Slots, 2 x 10G SFP+ Slots, 1 x Management Port)\
    SFP Optical Interface 1000Base-SX 1000Base-LX 1000Base-ZX
    Wavelength (nm) 850 1310 1550
    Laser Type/Connector/Slot VCSEL/LC/SFP FP/LC/SFP DFB/LC/SFP
    SFP+ Optical Interface 10G Base-SR/SW 10G Base-LR/LW 10G Base-ER/EW
    Wavelength (nm) 850 1310 1550
    Laser Type/Connector/Slot VCSEL/LC/SFP+ DFB/LC/SFP+ CML/LC/SFP+
    Copper Interface 10/100/1000 Base-T
    Others
    Screen 7 inch color LED touch screen, resolution: 960 x 480
    Language Chinese, English
    Interface USB 2.0, RJ-45
    Data Storage (GB) 8
    Battery Lithium battery (4400 mAh)
    Power Input: AC 100 ~ 240V, AC, 50/60 Hz, 2A
    Output: DC 24V
    Dimensions (mm) 282 (L) x 186 (W) x 75 (H)
    Weight (kg) 2.9

    Standard Package
    No. Name Unit Quantity
    1 10Gbit Ethernet Tester set 1
    2 Lithium Battery piece 1
    3 Power Adapter piece 1
    4 USB Disk piece 1
    5 Carrying Bag piece 1

    Optional Accessories
    No. Name Unit Quantity
    1 CAT6 Network Cable  piece 1
    2 LC-LC Duplex Patch Cord  piece 1
    3 10G SFP+ Module  piece 1
    4 1.25G SFP Module  piece 1
    5 QAM Testing Module  piece 1

  • Model Name Description
    SUN-ET-10G100A Ethernet Tester With 2 x 10G all function test ports; 7 inch color LCD touch screen; SFP and SFP+ module NOT included
    SUN-ET-10G100B Ethernet Tester With 1 x 10G all function test port and 1 x 10G loopback function test port; 7 inch color LCD touch screen; SFP and SFP+ module NOT included

  • ● Network engineering on-site installation and activation test
    ● Ethernet construction, deployment and maintenance
    ● Communication teaching and research
