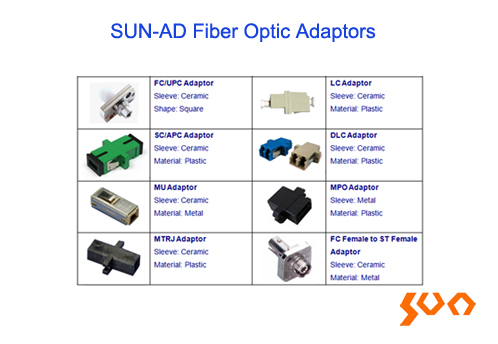

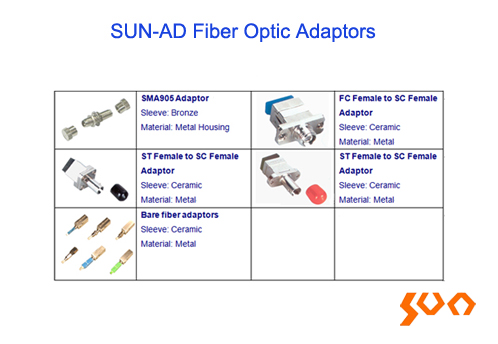

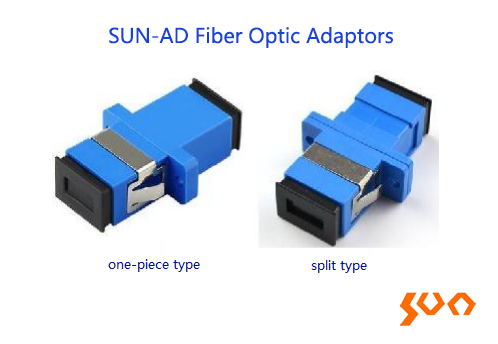

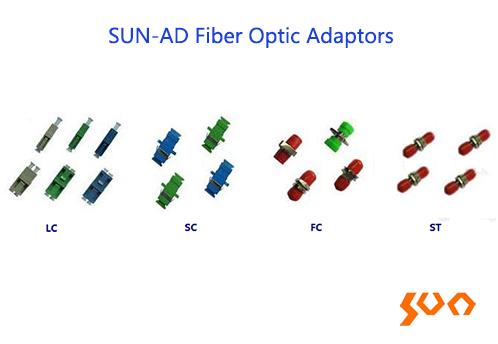

The adapters including FC, SC, ST, LC, MTRJ, MPO (PC ⁄ APC, SM ⁄ MM)
| Item | Specification |
| Insertion Loss (dB) | ≤0.2（AVG） |
| Repeatability（time） | ≥1000 |
| Interchangeability（dB） | ≤0.2 |
| Operating Temperature (°C) | -40 ~ + 75 |
| Storage Temperature (°C) | -40 ~ + 85 |
Fiber Optic Patch Cords and Pigtails
Model:
Different interface optional, Easy operation, Low insertion loss
Features
Low insertion loss High return loss Good repeatability High temperature stability
SUN-ODB-RM2C Fiber Optic Terminal Box
Model: SUN-ODB-RM2C
Used in CO as a cable termination 19-inch Rack mount sliding type
Features
19-inch standard structure Sliding design, rack mounted FC square/SC/DSC/ST adapter panel
SUN-ODN-JZ Distribution Box
Model: SUN-ODN-JZ
Outdoor, 1 1:16 or 2 1:8 splitters, Max adaptors: 16 ⁄ 24, SC, DLC adaptor
Features
Protection rating IP65 Moisture-proof, water-proof and anti-aging Indoor or outdoor wall mount SC adapter panel Fast connector applicable Suitable for one 1x16 PLC splitter or two 1x8 PLC splitters
SUN-DC240 FTTH Indoor Cable
Model: SUN-DC240
Drop Cable, 1-4 cores, G657, flame retardent, for FTTH application
Features
Good crush resistance ensured by parallel strength member Good tensile strength ensured by single steel wire Low smoke, zero halogen and flame retardant sheath Simple Structure, light weight and high practicability
SUN-1000 Ethernet Media Converter
Model: SUN-1000
10 ⁄ 100 ⁄ 1000Mbps, 1xRJ45, 1xOptical port
Features
Compliance with IEEE standards MTBF of more than 50000 hours Full & half duplex operation and auto-negotiation Electric interface self-adapting parallel/crossover connections Longest 1552 byte data packet transmission QoS ensuring VoIP data packet transmission STP Spanning Tree forming a redundant network Low power consumption and low heat for longtime stable operation Single/Multi mode and Single/Dual fiber transmission modes Network Management Function (optional)

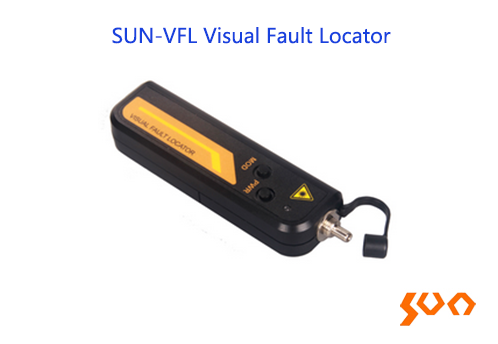

SUN-VFL Visual Fault Locator
Model: SUN-VFL
650nm laser source, portable size and easy to carry
Features
Portable size and easy to carry 650nm visible laser source Suitable for various optical fibers
SUN-OT5000 OTDR
Model: SUN-OT5000
Can test SM and MM fibers, optional light source, VFL and power meter
Features
Quick startup FTTX in-service testing (Up to1:64 splitter) Built-in PON power meter for Triple-play testing High configuration series include optical light source, optical power meter, visual fault locator (VFL) and Optical Connector Inspector (MCI) modules USB data interface (PC software for batch data processing and report output) Dustproof and shockproof (2-meter drop test) Light weight, small size, rugged design and simple operation Visual link image software (Optional)
