SUN-ADSS Fiber Optic Cable

Model: SUN-ADSS

ADSS, Double jacket, 2~144F

    Key Features

  • Can be installed without shutting off the power
  • Large span lengths
  • Good performance of tensile strength
  • Light weight and small diameter
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video

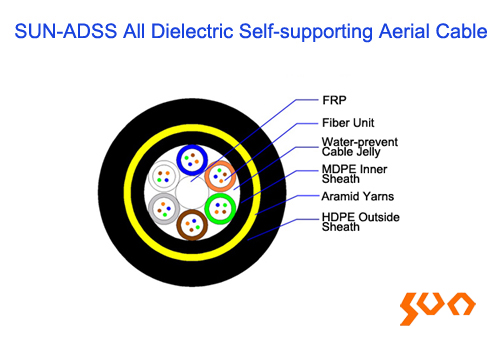

  • Sun Telecom's SUN-ADSS fiber optic cable construction is that 250um fibers are positioned in a loose tube which is made of high modulus plastics and filled with a water-resistant filling compound. A fiber reinforced plastic (FRP), sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a non-metallic strength member; Tubes are stranded around the strength member into a compact and circular cable core; The cable core is filled with the filling compound which protects it from water ingress and covered with a polyethylene (PE) inner sheath; After the aramid yarn is longitudinally applied over the inner sheath, the cable is completed with a polyethylene (PE) outer or AT (anti-tracking) outer sheath.
  • Standards
    Sun Telecom's SUN-ADSS ADSS fiber optic cable complies with standard IEEE1222 and IEC60794-1

    Fiber Optic Characteristics
    Parameters Specification
    Optical Characteristics
    Fiber Type G652.D
    Mode Field Diameter (um) 1310nm 9.1 ± 0.5
    1550nm 10.3 ± 0.7
    Attenuation Coefficient (dB/km) 1310nm ≤ 0.35
    1550nm ≤ 0.21
    Attenuation Non-uniformity (dB) ≤ 0.05
    Zero Dispersion Wavelength ( λ0) (nm) 1300 ～ 1324
    Max Zero Dispersion Slope (S0max) (ps/(nm2·km)) ≤ 0.093
    Polarization Mode Dispersion Coefficient (PMDQ) (ps/km1/2) ≤ 0.2
    Cut-off Wavelength (λcc) (nm) ≤ 1260
    Dispersion Coefficient (ps/ (nm·km)) 1288~1339nm ≤ 3.5
    1550nm ≤ 18
    Effective Group Index of Refraction (Neff) 1310nm 1.466
    1550nm 1.467
    Geometric characteristic
    Cladding Diameter (um) 125.0 ± 1.0
    Cladding Non-circularity (%) ≤ 1.0
    Coating Diameter (um) 245.0 ± 10.0
    Coating-cladding Concentricity Error (um) ≤ 12.0
    Coating Non-circularity (%) ≤ 6.0
    Core-cladding Concentricity Error (um) ≤ 0.8
    Mechanical characteristic
    Curling (m) ≥ 4
    Proof Stress (GPa) ≥ 0.69
    Coating Strip Force (N)  Average Value 1.0    5.0
    Peak Value 1.3 ~ 8.9
    Macro Bending Loss (dB) Ф60mm, 100 Circles, @ 1550nm ≤ 0.05
    Ф32mm, 1 Circle, @ 1550nm ≤ 0.05

    Cable Specifications
    Parameters Specification
    Fiber Count 2 6 12 24 60 144
    Loose Tube Material PBT
    Fibers per Tube 2 4 4 4 12 12
    Numbers 1 2 3 6 5 12
    Filler Rod Numbers 5 4 3 0 1 0
    Central Strength Member Material FRP FRP coated PE
    Water Blocking Material Water blocking yarn
    Additional Strength Member Aramid yarns
    Inner Jacket Material Black PE (Polythene)
    Thickness Nominal: 0.8 mm
    Outer Jacket Material Black PE (Polythene) or AT
    Thickness Nominal: 1.7 mm
    Cable Diameter (mm) 11.4 11.4 11.4 11.4 12.3 17.8
    Cable Weight (kg/km) 94 ~ 101 94 ~ 101 94 ~ 101 94 ~ 101 119 ~ 127 241 ~ 252
    Rated Tension Stress (RTS) (KN) 5.25 5.25 5.25 5.25 7.25 14.5
    Maximum Working Tension (40%RTS) (KN) 2.1 2.1 2.1 2.1 2.9 5.8
    Everyday Stress (15-25%RTS) (KN) 0.78 ~ 1.31 0.78 ~ 1.31 0.78 ~ 1.31 0.78 ~ 1.31 1.08 ~ 1.81 2.17 ~ 3.62
    Allowable Maximum Span (m) 100
    Crush Resistance (N/100mm) Short time 2200
    Suiting Meteorological Condition Max wind speed: 25m/s
    Max icing: 0mm
    Bending Radius (mm) Installation 20D
    Operation 10D
    Attenuation (After Cable) (dB/km) SM Fiber @1310nm ≤ 0.36
    SM Fiber @1550nm ≤ 0.22
    Temperature Range Operation (℃) -40 ~ +70
    Installation (℃) -10 ~ +50
    Storage & Shipping (℃) -40 ~ +60

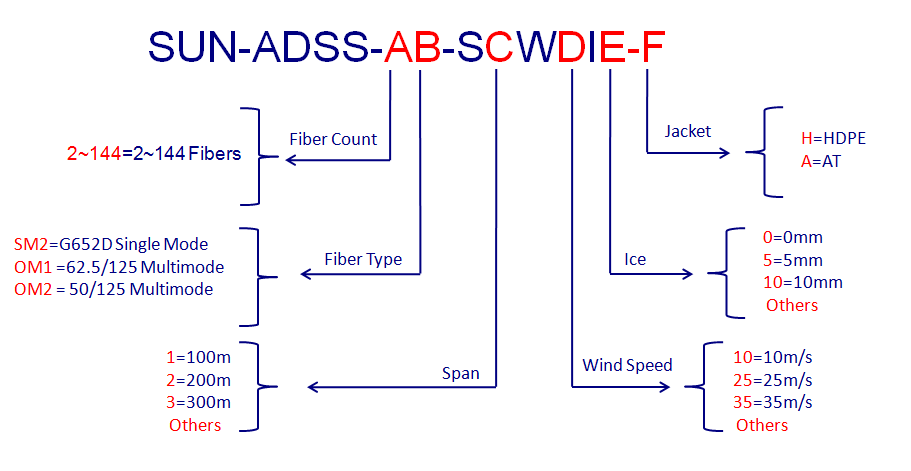

  • Example: SUN-ADSS-24SM2-S1W25I0-H
    ADSS outdoor cable; 24 fibers, G652D; Span: 100m, max wind speed: 25m/s, max icing: 0mm; HDPE outer jacket

  • ● Communication line of overhead high voltage transmission system
