SUN-ADSS-TC Series Tension Clamp

Model: SUN-ADSS-TC

Suitable for laying ADSS cable

    Key Features

  • Connecting with the pole or tower and bearing the line load
  • Distributing stress equally without intensive stress pivot
  • Improving the mechanical properties by Aluminum clad steel wires rod against corrosion
  • Pole/tower mounted
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video

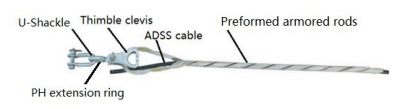

  • 　Sun Telecom’s SUN-ADSS-TC tension clamp bears the tension strength, connecting ADSS cable to pole or tower.

  • Specifications
    Item Parameter

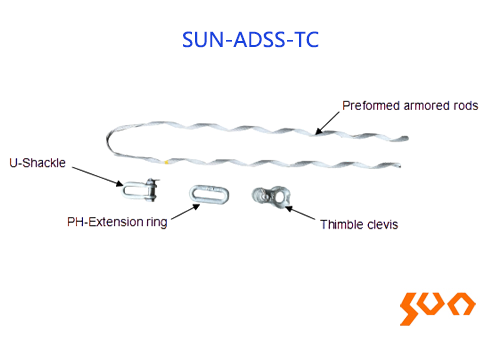

    Material Shackle, Thimble Clevis, Extension Ring Galvanized steel
    Preformed Armored Rods Aluminum clad steel wires (surface glue dipping and sand capping). (Galvanized steel wires are optional.)
    Breaking Load (KN) ≥10 ≥20 ≥30 ≥50 ≥60
    Grip Strength (KN) ≥95%*RTS of ADSS cable
    Max. Suitable Span (m) 100 200 300 500 600
    Suitable Cable Diameter (mm) 9.8~10.8
    10.9~11.8
    11.9~12.8, etc    		 12.9~13.8,etc 11.2~12.2
    12.3~13.3,etc    		 11.2~12.2
    13~14, etc    		 13~14, etc
    Connector Part Model U-3, TC-5, PH-3 U-7, TC-7, PH-7
    Layer of Preformed Armor Rods
    (Single Layer/ Double Layer)    		 Single layer Double layer
    Model Description
    SUN-ADSS-TC-S1-R10-D10.8 Tension clamp, suitable for max 100m span and cable diameter: 9.8~10.8mm ADSS cable; Breaking load: ≥10KN; Single layer of preformed armor rods
    SUN-ADSS-TC-S1-R10-D11.8 Tension clamp, suitable for max 100m span and cable diameter: 10.9~11.8mm ADSS cable; Breaking load: ≥10KN; Single layer of preformed armor rods
    SUN-ADSS-TC-S1-R10-D12.8 Tension clamp, suitable for max 100m span and cable diameter: 11.9~12.8mm ADSS cable; Breaking load: ≥10KN; Single layer of preformed armor rods
    SUN-ADSS-TC-S2-R20-D13.8 Tension clamp, suitable for max 200m span and cable diameter: 12.9~13.8mm ADSS cable; Breaking load: ≥20KN; Single layer of preformed armor rods
    SUN-ADSS-TC-S3-R30-D12.2-DR Tension clamp, suitable for max 300m span and cable diameter: 11.2~12.2mm ADSS cable; Breaking load: ≥30KN; Double layer of preformed armor rods
    SUN-ADSS-TC-S3-R30-D13.3-DR Tension clamp, suitable for max 300m span and cable diameter: 12.3~13.3mm ADSS cable; Breaking load: ≥30KN; Double layer of preformed armor rods
    SUN-ADSS-TC-S5-R50-D12.2-DR Tension clamp, suitable for max 500m span and cable diameter: 11.2~12.2mm ADSS cable; Breaking load: ≥50KN; Double layer of preformed armor rods
    SUN-ADSS-TC-S5-R50-D14-DR Tension clamp, suitable for max 500m span and cable diameter: 13~14mm ADSS cable; Breaking load: ≥50KN; Double layer of preformed armor rods
    SUN-ADSS-TC-S6-R60-D14-DR Tension clamp, suitable for max 600m span and cable diameter: 13~14mm ADSS cable; Breaking load: ≥60KN; Double layer of preformed armor rods



  • Ordering Information

  • Applications

    Pole mounted Tower mounted
