Unclosing the Value of DWDM Transceiver for Your DWDM Network Application

Date: 2025-10-16 13:50:45

DWDW(Dense Wavelength Division Multiplexing) is an optical multiplexing technology used to increase the bandwidth of existing fiber optic networks. It enables fiber optic networks to transmit signals of several wavelengths simultaneously. DWDM transceiver is a crucial part of the DWDM network system, which provides high-capacity and long-distance transmissions. Let’s take a closer look together.

\

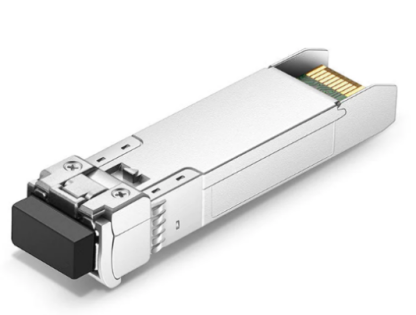

What is a DWDM Transceiver?
DWDM transceiver is a fiber optic transceiver with unique features and functions. It is designed for the DWDM network, serving as the backbone for efficient data transmission through optical fibers, harnessing multiple wavelengths of light. DWDM transceiver provides high speed, capacity, and reliable data transmission over long distances.

\

How Does DWDM Transceiver Work?
DWDM transceiver converts electrical signal to optical signal and vice versa. It can be plugged or embedded into another device within a data network that can send and receive signals. In addition, it uses DWDM technology to multiplex different wavelengths or several optical signals onto a single fiber to save valuable fiber resources. DWDM transceiver is designed for single-mode fiber and operates at a nominal DWDM wavelength from 1528.38 to 1563.86 nm (Channel 17 to Channel 61) as specified by the ITU-T. DWDM transceiver provides high-capacity and long-distance transmission, supports data rates up to 10 Gbps, and spans distances of up to 120 km.

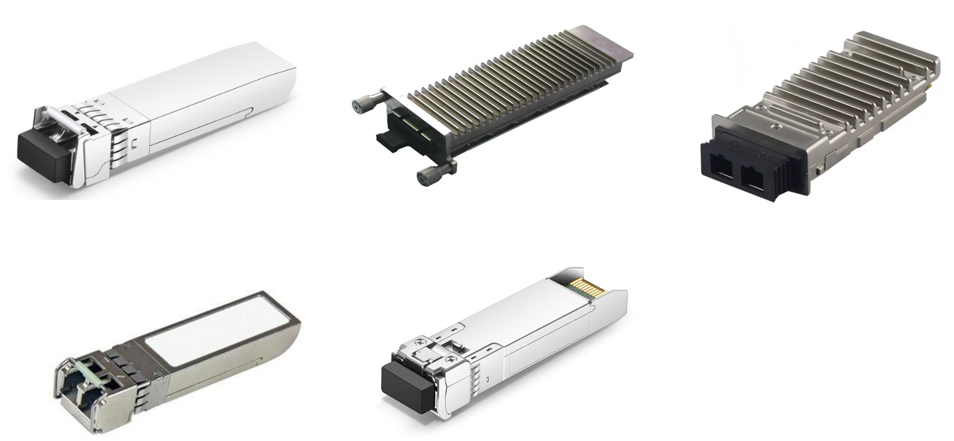

What are the Types of DWDM Transceiver?
1) DWDM SFP Transceiver
DWDM SFP transceivers provide a high-speed serial link at signaling rates from 100 Mbps to 2.5 Gbps. The DWDM SFP modules meet the requirements of the IEEE802.3 gigabit ethernet standard and ANSI fiber channel specifications and are suitable for interconnections in gigabit ethernet and fiber channel environments.

2) DWDM XENPAK Transceiver
DWDM XENPAK is the first 10GbE transceiver ever to support DWDM. It supports 32 different channels for up to 200 km with EDFAs.

3) DWDM X2 Transceiver
DWDM X2 transceiver is a high-performance, serial optical transponder module for high-speed, 10G data transmission applications. The optical module is fully compliant with IEEE 802.3ae standard for ethernet, making it ideally suited for 10GbE datacom applications.

4) DWDM XFP Transceiver
DWDM XFP transceiver complies with the current XFP MSA specification. It supports SONET/SDH, 10GbE, and 10-Gigabit fiber channel applications. It is small in size and low cost.

5) DWDM SFP+ Transceiver
DWDM SFP+ transceiver is designed for carriers and large enterprises that require a cost-effective, scalable, flexible network system. It is also smaller in comparison to the previous XFP. Moreover, it is the best choice for 10 Gigabits' highest bandwidth application.

6) Fixed Wavelength DWDM Transceiver
Fixed wavelength DWDM transceiver can only transmit a certain number of wavelengths, typically at 1310nm and 1550nm for 10G data transmission applications.

7) Tunable  DWDM Transceiver
The tunable DWDM transceiver enables a flexible selection of working wavelengths or channels. It is typically used as “spare optics” in case of emergency.

\

Application
DWDM transceiver is used in DWDM networks, telecommunications networks, data centers, gigabit ethernet, fiber channels, enterprise networks, SAN networks, LAN, MAN, etc.

Conclusion
DWDM transceiver provides high speed and density, small size, and low power consumption and cost. Furthermore, it offers a popular way to help you quickly ramp up to 10G transmission.
Sun Telecom specializes in providing one-stop total fiber optic solutions for all fiber optic application industries worldwide. Contact us if you have any needs.
