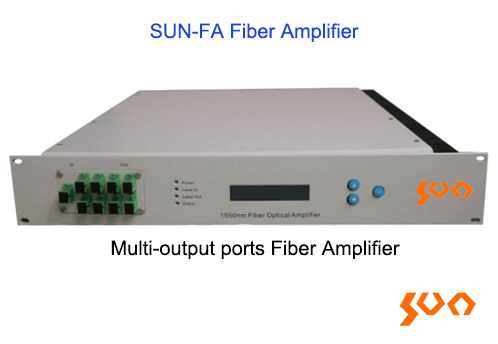

EDFA with low power input, high optic power output
| Parameters | Specification | |

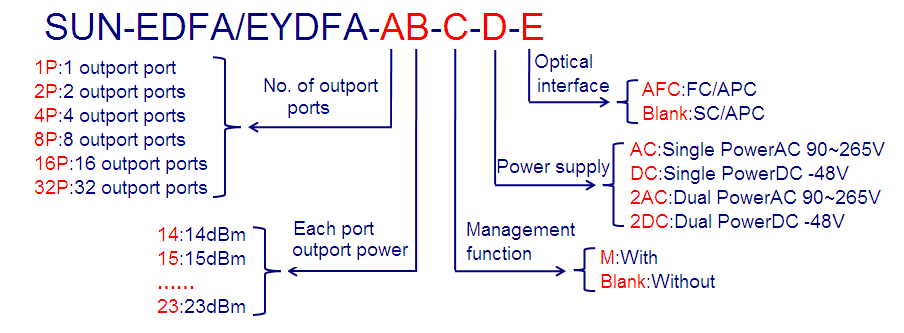

| Model | SUN-EDFA | SUN-EYDFA |
| Total Output Power (dBm) | 13 ~ 28 | 29 ~ 44 |
| No. of Output Ports | 1/2/4 | 8/16/32/64 |
| Each Port Output Power (dBm) | 13 ~ 28 | 16 ~ 23 |
| Input Power (dBm) | -10 ~ 10 | |
| Wavelength (nm) | 1550 ± 20 | |
| Output Power Stability (dB) | < ±0.2 | |
| Bias Oscillation Sensitivity (dB) | < 0.2 | |
| Bias Oscillation Dispersion (PS) | < 0.5 | |
| Return Loss (dB) | ≥ 45 | |
| Optical Connector | FC/APC or SC/APC | |
| Noise Ratio (dB) | < 5.0 (0 dBm optical input) | |
| Interface | RJ45 (SNMP), RS232 or RS485 | |
| Power (W) | 50 | |
| Operation Voltage (V) | AC: 90 ~ 265 DC: -48 |
|
| Working Temperature (°C) | -20 ~ +85 | |
| Dimensions (mm) | 483 (L) x 380 (W) x 44.5 (H) | 483 (L) x 380 (W) x 89 (H) |
| Weight (kg) | 5 | 7 |
| No. | Name | Unit | Quantity |
| 1 | Fiber Amplifier | set | 1 |
| 2 | Power Adapter | piece | 1 or 2 |
SUN-CATV-T15 Optical Transmitter
Model: SUN-CATV-T15
CATV transmitter, RF input, multiple fiber ports output
Features
DFB lasers support maximum output power 16mW Perfect pre-distortion circuit AGC automatic gain control LED displays the working conditions and trouble alarm
SUN-PLC Fiber Optic Splitter
Model: SUN-PLC
Splitting ratio: 1x2, 1(2)x4, 1(2)x8, 1(2)x16, 1(2)x32, 1(2)x64
Features
Low insertion loss Low PDL High reliability and stability Good channel uniformity
Fiber Optic Patchcord
Model:
Different interface optional, Easy operation, Low insertion loss
Features
Low insertion loss High return loss Good repeatability
SUN-OPM200 Optical Power Meter
Model: SUN-OPM200
FC ⁄ SC ⁄ ST, REF, backlight control, USB port
Features
User self-calibration function Power measurements in dBm or mW Auto power off after 10 minutes without operation Standard FC/SC/ST interchangeable port Backlight LCD display for night operation REF setting function Intelligent backlight control Auto wavelength and frequency identification High storage capacity USB communication port for data transfer
SUN-OC-SLT-AP GYTA Cable
Model: SUN-OC-SLT-AP
GYTA , light armored cable, 2~144cores
Features
Good mechanical and temperature performance High hydrolysis resistance and high strength loose tube Good crush resistance and flexibility High tensile strength ensured by steel wire APL moisture barrier
