SUN-OC-SLT-AP GYTA Cable

Model: SUN-OC-SLT-AP

GYTA , light armored cable, 2-144cores

    Key Features

  • Good mechanical and temperature performance
  • High hydrolysis resistance and high strength loose tube
  • Good crush resistance and flexibility
  • High tensile strength ensured by steel wire
  • APL moisture barrier
  • Description
  • Specifications

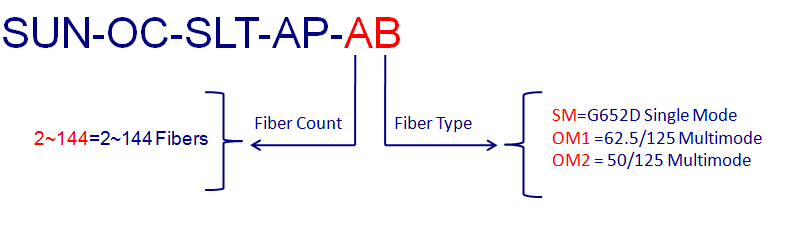

  • Ordering Information
  • Applications
  • FAQ
  • Product Video

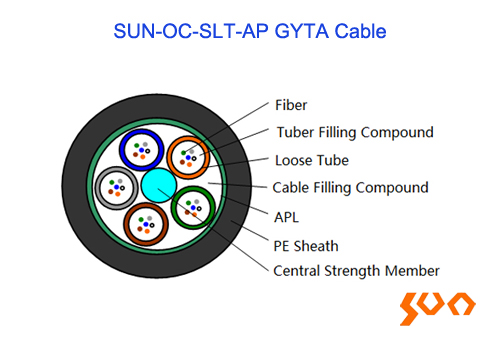

  • 　Sun Telecom’s SUN-OC-SLT-AP stranded loose tube light-armored (Aluminum Tape) cable (GYTA) construction is that 250um fibers are positioned in a loose tube which is made of high modulus plastic and filled with a water-resistant filling compound; A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member; Tubes are stranded around the strength member into a compact and circular cable core; The APL (Aluminum Tape) is longitudinally applied over the cable core which is filled with the filling compound to protect it from water ingress; The cable is completed with a polyethylene (PE) sheath.
  • Standards
    Sun Telecom’s SUN-OC-SLT-AP stranded loose tube light-armored (Aluminum Tape) cable (GYTA) complies with standard YD/T901 and IEC60794-1.


    Fiber Optic Characteristics
    Parameters Specification
    Fiber Type G.652D (9/125μm) G651A1
    (50/125μm)    		 G651A1b
    (62.5/125μm)
    Attenuation (dB/km) @850nm   ≤3.0 ≤3.3
    @1300nm   ≤1.0 ≤1.0
    @1310nm ≤0.36
    @1550nm ≤0.22
    Bandwidth (MHz·km) @850nm   ≥500 ≥200
    @1300nm   ≥500 ≥500
    Numerical Aperture   0.200±0.015NA 0.275±0.015NA
    Cable Cut-off Wavelength (nm) ≤1260

    Cable Specifications
    Parameters Specification
    Fiber Count 2~30 32~36 38~60 62~72 74~96 98~120 122~144
    Cable Diameter (mm) (±0.3 ) 9.4 9.6 10.1 10.6 11.8 13.2 14.6
    Cable Weight (kg/km) 83 94 96 113 133 157 181
    Tensile Strength (N) Short Term 1500
    Long Term 600
    Crush Resistance (N) Short Term 1000
    Long Term 300
    Bending Radius (mm) Dynamic 20D
    Static 10D
    Attenuation (dB/km) MM Fiber @850nm ≤3.0 (50/125μm)
    ≤3.3 (62.5/125μm)
    MM Fiber @1300nm ≤1.0
    SM Fiber @1310nm ≤0.36
    SM Fiber @1550nm ≤0.22
    Operating Temperature (°C) -40 ~ +70
    Storage Temperature (°C) -40 ~ +70


  •  ● Core network
     ● Metropolitan area network
     ● Access network
