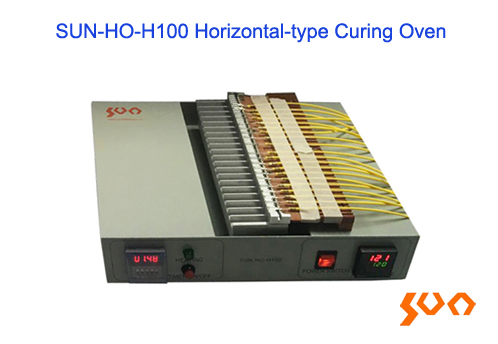

Horizontal type, Capacity: 100pcs of 1.25/2.5mm ferrules
| Parameters | Specification |
| Power Supply (V) | AC 220 |
| Power Consumption (W) | 200 |
| Max. Heating Temperature (°C) | 300 |
| Normal Curing Temperature (°C) | 80 ~ 120 |
| Normal Curing Time (min) | 30 ~ 45 |
| No. Curing Ferrule/Connector (pcs) | 100/40 |
| Dimensions (mm) | 400 (L) x 320 (W) x 130 (H) |
| Weight (kg) | 7.5 |
| No. | Name | Unit | Quantity |
| 1 | Fiber Optic Heat Oven | set | 1 |
| 2 | Curing Boards (Suitable for 2.5mm Ferrules) | pieces | 2 |
| 3 | Power Cable | piece | 1 |
| 4 | User’s Manual | piece | 1 |
| Model | Name | Description |
| SUN-HO-H100 | Fiber Optic Heat Oven | Horizontal type; Capacity: 40pcs of connectors or 100pcs of 2.5mm ferrules (2pcs of curing boards for placing 50pcs of 2.5mm ferrules each included); Power supply: AC 220V |
| SUN-HO-H100-B1 | Curing Board | Used for SUN-HO-H100, with a capacity of placing 50pcs of 1.25mm ferrules |
| SUN-HO-H100-B2 | Curing Board | Used for SUN-HO-H100, with a capacity of placing 50pcs of 2.5mm ferrules |
Fiber Optic Patchcord
Model:
Different interface optional, Easy operation, Low insertion loss
Features
Low insertion loss High return loss Good repeatability
SUN-GE9100B-VS Optical Line Terminal (OLT)
Model: SUN-GE9100B-VS
2/4/8/16 PON ports
Features
Space saving Convenient for installation and maintenance Maximum 16×PON, 8×Gigabit optical uplink and 8×Gigabit copper uplink ports
SUN-OT5000 OTDR
Model: SUN-OT5000
Can test SM and MM fibers, optional light source, VFL and power meter
Features
Quick startup FTTX in-service testing (Up to1:64 splitter) Built-in PON power meter for Triple-play testing (Only for SUN-OT5000-PON) High configuration series include optical light source, optical power meter, visual fault locator (VFL) and Optical Connector Inspector (MCI) modules USB data interface (PC software for batch data processing and report output) Dustproof and shockproof (2-meter drop test) Light weight, small size, rugged design and simple operation Visual link image software (Optional)
SUN-IRL-A Insertion and Return Loss Tester
Model: SUN-IRL-A
In-built multiple-wavelength light source: 650/850/1310/1550nm
Features
Intelligent microprocessor-controlled equipment Insertion and return loss testing of the optical active devices and passive components In-built multiple-wavelength light source: 650/850/1310/1550nm In-built high stability light source (US import detector) Large color LCD screen
SUN-1000 Media Converter
Model: SUN-1000
10/100/1000Mbps, 1xRJ45, 1xOptical port
Features
1000Mbps transmission rate Compliance with IEEE standards MTBF of more than 50000 hours Full & half duplex operation and auto-negotiation Electric interface self-adapting parallel/crossover connections Longest 1552 byte data packet transmission QoS ensuring VoIP data packet transmission STP Spanning Tree forming a redundant network Low power consumption and low heat for longtime stable operation Single/Multi mode and Single/Dual fiber transmission modes Network Management Function (optional)

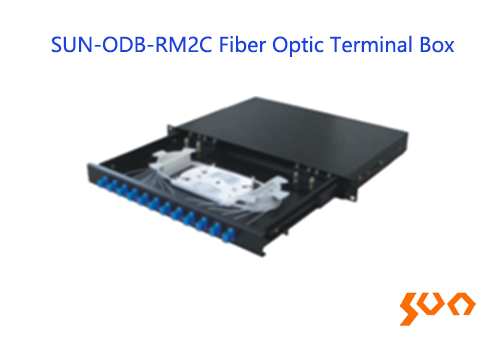

SUN-ODB-RM2C Fiber Optic Terminal Box
