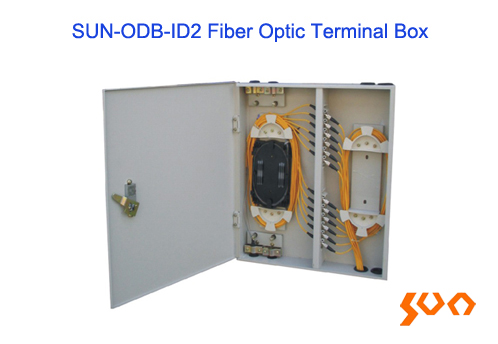

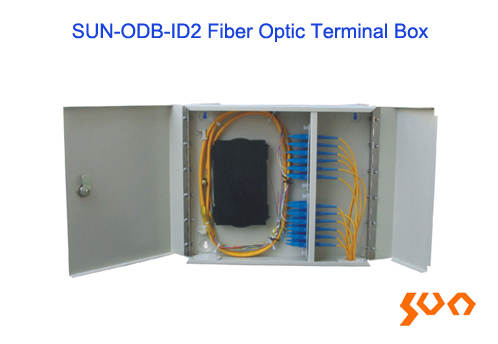

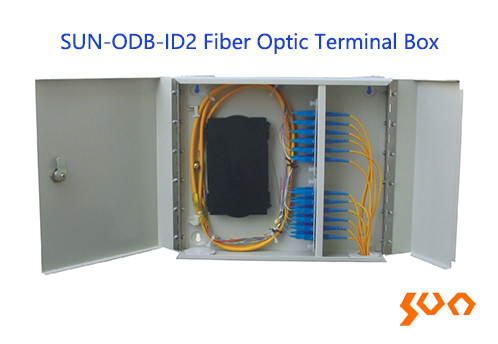

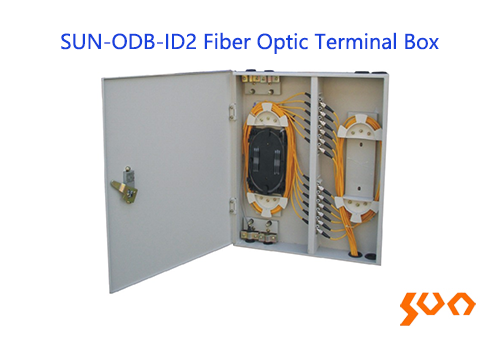

Indoor wall mount, max cores: 12 ⁄ 24 ⁄ 48 ⁄ 72
| Parameters | Specification | |||
| Model | SUN-ODB-ID2D-12 | SUN-ODB-ID2D-24 | SUN-ODB-ID2A-48 | SUN-ODB-ID2A-72 |
| Maximum Number of Cores | 12 | 24 | 48 | 72 |
| Adapter Type | FC square, SC, DLC (SC type), ST | |||
| Box Material | Cold-rolled steel | |||
| Dimensions(mm) | 350(L) x 300(W) x 80(H) | 350(L) x 300(W) x 80(H) | 455(L) x 405(W) x 120(H) | 455(L) x 405(W) x 150(H) |
| Weight (kg) | 3.6 | 3.85 | 8.5 | 9 |
| No. | Product | Unit | Quantity |
| 1 | Box | set | 1 |
| 2 | Protective Sleeves | pieces | 12, 24, 48 or 72 |
| 3 | Keys | pieces | 2 |
| 4 | Screw Set | set | 1 |
| 5 | Ribbon | pieces | 2~3 |
| Model | Name | Description |
| SUN-ODB-ID2D-12FC | Fiber Optic Terminal Box | Indoor type; Max. 12 cores, FC square panel; Adapters NOT included |
| SUN-ODB-ID2D-12SC | Fiber Optic Terminal Box | Indoor type; Max. 12 cores, SC/duplex LC (SC type) panel; Adapters NOT included |
| SUN-ODB-ID2D-12ST | Fiber Optic Terminal Box | Indoor type; Max. 12 cores, ST panel; Adapters NOT included |
| SUN-ODB-ID2D-24FC | Fiber Optic Terminal Box | Indoor type; Max. 24 cores, FC square panel; Adapters NOT included |
| SUN-ODB-ID2D-24SC | Fiber Optic Terminal Box | Indoor type; Max. 24 cores, SC/duplex LC (SC type) panel; Adapters NOT included |
| SUN-ODB-ID2D-24ST | Fiber Optic Terminal Box | Indoor type; Max. 24 cores, ST panel; Adapters NOT included |
| SUN-ODB-ID2A-48FC | Fiber Optic Terminal Box | Indoor type; Max. 48 cores, FC square panel; Adapters NOT included |
| SUN-ODB-ID2A-48SC | Fiber Optic Terminal Box | Indoor type; Max. 48 cores, SC/duplex LC (SC type) panel; Adapters NOT included |
| SUN-ODB-ID2A-48ST | Fiber Optic Terminal Box | Indoor type; Max. 48 cores, ST panel; Adapters NOT included |
| SUN-ODB-ID2A-72FC | Fiber Optic Terminal Box | Indoor type; Max. 72 cores, FC square panel; Adapters NOT included |
| SUN-ODB-ID2A-72SC | Fiber Optic Terminal Box | Indoor type; Max. 72 cores, SC/duplex LC (SC type) panel; Adapters NOT included |
| SUN-ODB-ID2A-72ST | Fiber Optic Terminal Box | Indoor type; Max. 72 cores, ST panel; Adapters NOT included |
