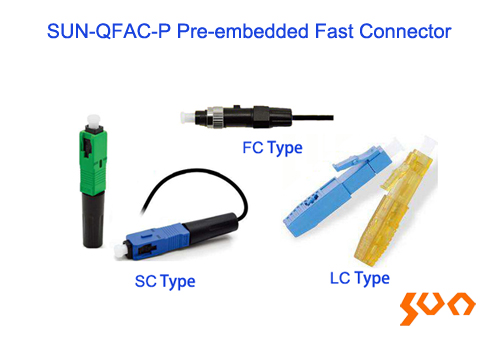

SUN-QFAC-P Pre-embedded Fast Connector

Model: SUN-QFAC-P

Pre-embedded,SC/FC/LC optional,Average Insertion Loss:≤0.25dB, Applicable for 3.0mmx2.0mm drop cable or 0.9mm Fiber Optic Cable

    Key Features

  • Pre-embedded fiber and pre-polished ceramic ferrule (UPC/APC) ensures excellent optical performance
  • Easy to assembly
  • Over 98% splicing success rate for single time assemble, total splicing success rate more than 99%
  • More than 5 times for re-assembling
  • Life Span over 15 years
  • Description
  • Specifications

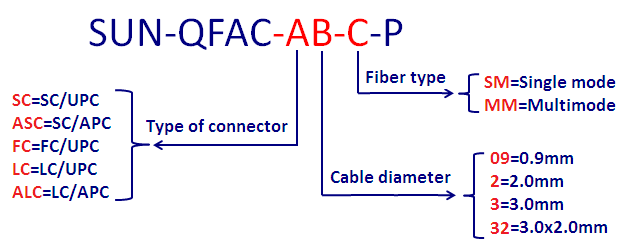

  • Ordering Information
  • Applications
  • FAQ

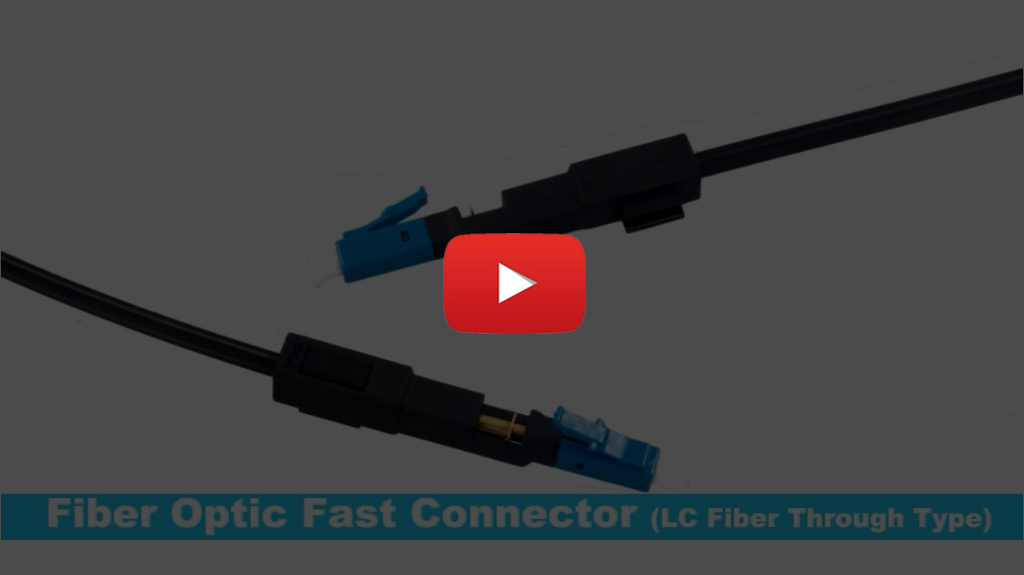

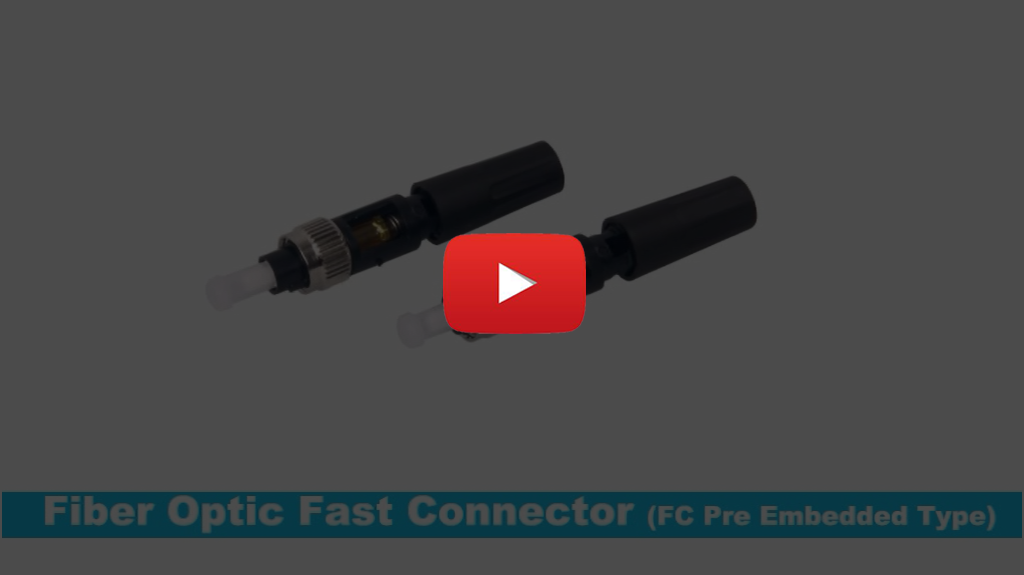

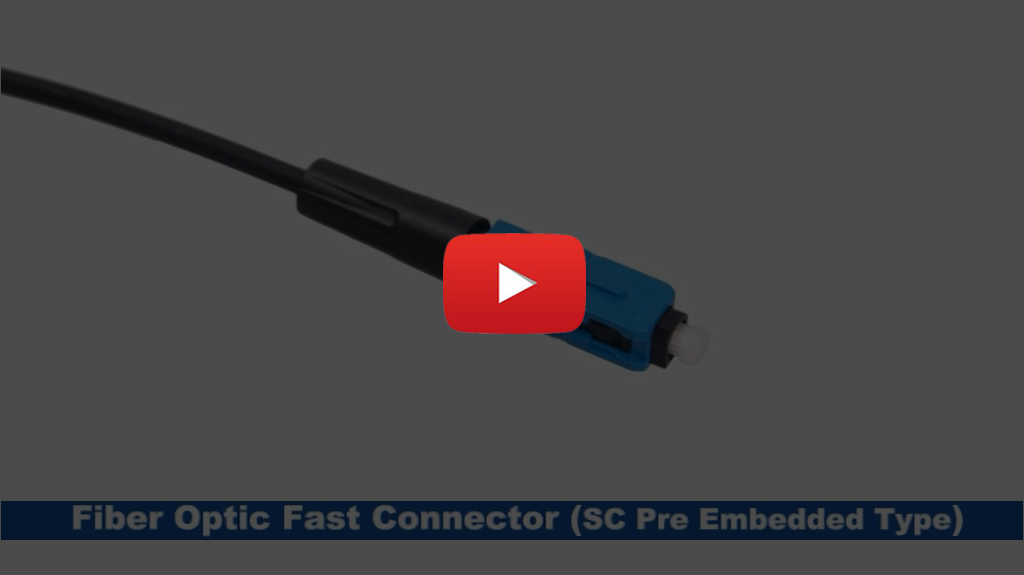

  • Product Video
  •  Sun Telecom's SUN-QFAC-P pre-embedded fast connector is easy to operate and carry. It is fast installing in the FTTH projects.
  • Parameters Specifications
    Applicable Cable 3.0*2.0mm drop cable or 0.9mm round cable (2.0,3.0mm cable optional )
    Fiber Diameter (um) 125
    Tight Fiber Diameter (um) 250
    Fiber Mode SM / MM
    Average Insertion Loss (dB) ≤0.25
    Return Loss (dB ) ≥50 (SM UPC)
    ≥60 (SM APC)
    ≥35 (MM)
    Operating Temperature ( ) -20 ~ +75
    Vibration and Impaction at 500 times (dB) △IL≤ 0.25
    △RL ≤ 5

  • ● FTTH Project
    ● Cabling system
