SUN-OPGW Fiber Optic Cable

Model: SUN-OPGW

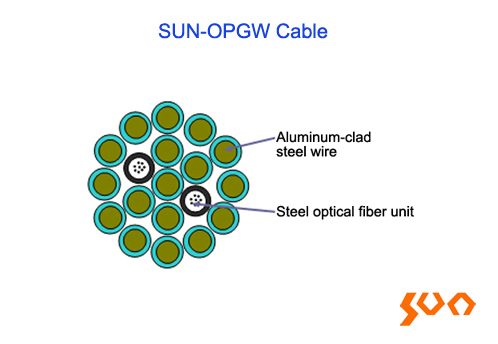

OPGW Cable, Stainless-steel optical fiber unit, Aluminum-clad steel wire, 2~48 cores

    Key Features

  • Stainless-steel optical fiber unit with layer stranding structure
  • Aluminum alloy wire and aluminum clad steel wire armored
  • Coated with anticorrosive grease between layers
  • Heavy load capacity and long span installation
  • Used in constructing high pressure line over 110KV
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  • Sun Telecom's SUN-OPGW fiber optic cable is a dual functioning cable performing the duties of a ground wire and also providing a patch for the transmission of voice, video or data signals. The cable is designed to be installed on transmission and distribution lines. The fibers are protected from environmental conditions (lightning, short circuit, loading) to ensure the reliability of signal transmission.
  • Fiber Optic Characteristics
    Parameters Specification
    Mode Field Diameter (um) B1.1 (G652.D) 9.1 ~ 10.3 ± 0.7
    B4 (G655) 9.6 ± 0.7
    Cladding Diameter (um) 125.0 ± 1
    Cladding Non-Circularity (%) ≤ 1.0
    Coating Diameter (um) 245 ± 10
    Attenuation (dB/km) 1310nm < 0.35
    1550nm B1.1 (G652.D) < 0.21
    B4 (G655) < 0.21
    Dispersion Coefficient (Ps(nm.km)) 1288~1339nm < 3.5
    1550nm < 18
    Zero Dispersion Wavelength (nm) 1300 ~ 1324
    Zero Dispersion Slop (Ps(nm2.km)) 0.093
    Cable Cut-off Wavelength (nm) B1.1 (G652) ≤ 1260
    B4 (G655) ≤ 1480

    Cable Specifications
    Parameters Specification
    Total-Cross Area (mm²) 81.43 88.36 92.68
    Fiber Count 16 24 48
    Cable Diameter (mm) 12 12.5 13.2
    Cable Weight (kg/km) 541 612 641
    Center Layer-Aluminum Clad Steel Wire Quantity/Diameter (piece/mm) ACS wire 1/2.4 1/2.5 1/2.6
    Inner Layer- Aluminum Clad Steel Wire Quantity/Diameter (piece/mm) ACS wire 5/2.4 5/2.5 4/2.5
    SST 1/2.4 1/2.5 2/2.5
    Inner Layer-Stranding Left
    Outer Layer-Aluminum Clad Steel Wire Quantity/Diameter (piece/mm) ACS wire 12/2.4 12/2.5 11/2.8
    Outer Layer-Stranding Right
    Attenuation (After Cable) (dB/km) SM Fiber @1310nm ≤0.36
    SM Fiber @1550nm ≤0.22
    Mechanical Specifications
    Young's Modulus (kN/ mm²) 149.7 162 162
    Rated Tensile Strength (RTS) (kN) 94 109 112
    Short-Circuit Current (40~2000.25s) (kA) 12.48 12.43 13.42
    Maximum Allowable Tension (MAT) (N/ mm²) 465 496.8 486
    Everyday Tension (EDS) (N/ mm²) 174-290 186-310 182-303
    Coefficient of Thermal Expansion (10-6/) 12.9 13 13
    20°C DC Resistance (Ω/km) 0.943 0.976 0.931
    Short Circuit Current Capacity (kA2s) 38.92 38,64 45.04
    Bending Radius (mm) Dynamic 250 240 264
    Static 188 180 198
    Operating Temperature (°C) -10 ~ +50
    Storage Temperature (°C) -40 ~ +70
    Note: Total-cross area, short circuit current capacity, rated tensile strength (RTS) can be customized according to customer requirements.

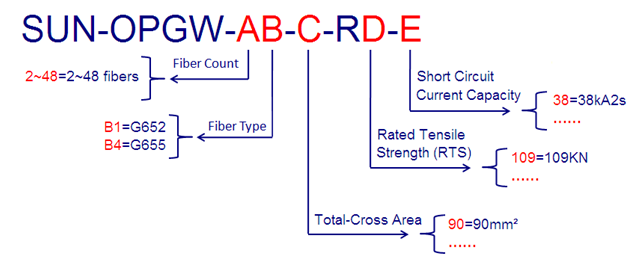

  • Example: SUN-OPGW-24B1-90-R109-38
    OPGW outdoor cable; 24 fibers, G652D; Total cross area: 90mm², related tensile strength (RTS): 109KN, short circuit current capacity: 38kA2s
