Position: Home > Products > Fiber Optic Cable Management > MPO/MTP Patch Panel & Cassette

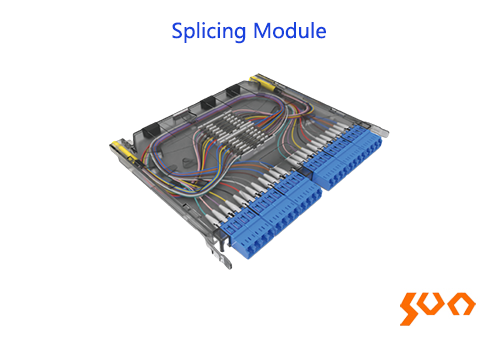

Splicing Module

Model: MPO

19" Standard rack structure, 1U/2U/4U height, high capacity, sliding design, supports 24-core MPO cassettes or splicing modules

    Key Features

  • 19-inch standard structure
  • Sliding design, rack mounted
  • 6 pcs 12DLC 24-core MPO cassettes or 24-core splicing modules
  • 1U 144 cores, 2U 288 cores, 4U 576 cores
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  • 　Sun Telecom’s SUN-MPO-SP series fiber optic terminal boxes are widely applied in Local Central Office. These are used for fiber optic cable fixation, protection, cable termination, patching etc.
  • Specifications
    Parameters
    Specification
    Model
    SUN-MPO-SP6M1
    SUN-MPO-SP12M2
    SUN-MPO-SP24M4
    Max. No. of Cores
    144LC
    288LC
    576LC
    Max. No. of Module
    6
    12
    24
    Box Material
    Cold-rolled steel (SPCC) and aluminum alloy
    Dimensions (mm)
    482.6(L) x 455(D) x 44.3(H)
    482.6(L) x 455(D) x 88.1(H)
    482.6(L) x 455(D) x 177(H)

  • Ordering Information
    Part Number
    Name
    Description
    SUN-MPO-SP6M1
    Fiber Optic Terminal Box
    19-inch, 1U sliding type rack mounted chassis, material: cold-rolled steel (SPCC) and aluminum alloy, black color; Max 6pcs 24-core MPO modules (modules and blank panels NOT included); Dimensions (mm): 482.6(L) x 455(D) x 44.3(H); Cable Management included
    SUN-MPO-SP12M2
    Fiber Optic Terminal Box
    19-inch, 2U sliding type rack mounted chassis, material: cold-rolled steel (SPCC) and aluminum alloy, black color; Max 12pcs 24-core MPO modules (modules and blank panels NOT included); Dimensions (mm): 482.6(L) x 455(D) x 88.1(H); Cable Management included
    SUN-MPO-SP24M4
    Fiber Optic Terminal Box
    19-inch, 4U sliding type rack mounted chassis, material: cold-rolled steel (SPCC) and aluminum alloy, black color; Max 24pcs 24-core MPO modules (modules and blank panels NOT included); Dimensions (mm): 482.6(L) x 455(D) x 177(H); Cable Management included
    SUN-AMPOML-12DLC-2-SMA1-G24-U
    MPO Cassette
    24-core MPO cassette, PC; 2pcs of "12-core MPO/APC male connector (with PIN, IL≤0.35dB)-LC/UPC" patch cord included, SM G657A1; 12pc duplex LC adapters and 2pc of MPO adapters (Type A, key up-key down) included; Suitable for SUN-MPO-SP series chassis; Universal polarity (1-1, 2-12, 3-2, 4-11, 5-3, 6-10, 7-4, 8-9, 9-5, 10-8, 11-6, 12-7)
    SUN-AMPOML-12DLC-2-SMA1-G24-A
    MPO Cassette
    24-core MPO cassette, PC; 2pcs of "12-core MPO/APC male connector (with PIN, IL≤0.35dB)-LC/UPC" patch cord included, SM G657A1; 12pc duplex LC adapters and 2pc of MPO adapters (Type A, key up-key down) included; Suitable for SUN-MPO-SP series chassis; Type A polarity (1-1, 2-2, 3-3, 4-4, 5-5, 6-6, 7-7, 8-8, 9-9, 10-10, 11-11, 12-12)
    SUN-MPO-SP-BP-G24
    Blank Panel
    Material: PC+ABS, black color; Dimensions (mm): 200.2 (W) x 125 (D) x 11.8(H); Suitable for SUN-MPO-SP series chassis
    SUN-MPO-SC-24LC-SMA1-G24
    Splicing Module
    24-core splice cassette, PC; Including 12pcs DLC/UPC SM adapters and 24pcs LC/UPC pigtails (SM, G657A1 fiber) and splice sleeves; Suitable for SUN-MPO-SP series chassis

  • ●  FTTH access networks
    ●  Telecommunication networks
    ●  CATV networks
    ●  Local Area Networks
