Position: Home > Products > Fiber Optic Cable Management > MPO/MTP Patch Panel & Cassette

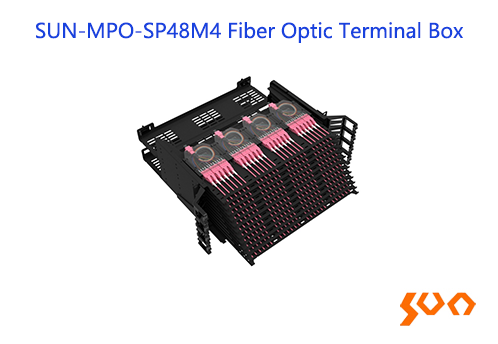

SUN-MPO-SP48M4 Fiber Optic Terminal Box

Model: SUN-MPO-SP48M4

19" Standard rack structure, 1U/2U/4U height, high capacity, sliding design, supports 12-core MPO cassettes or splicing modules

    Key Features

  • 19-inch standard structure
  • Sliding design, rack mounted
  • 12 pcs 6DLC 12-core MPO cassettes or 12-core splicing modules
  • 1U 144 cores, 2U 288 cores, 4U 576 cores
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  • 　Sun Telecom’s SUN-MPO-SP series fiber optic terminal boxes are widely applied in Local Central Office. These are used for fiber optic cable fixation, protection, cable termination, patching etc.
  • Specifications
    Parameters
    Specification
    Model
    SUN-MPO-SP12M1
    SUN-MPO-SP24M2
    SUN-MPO-SP48M4
    Max. No. of Cores
    144LC
    288LC
    576LC
    Max. No. of Module
    12
    24
    48
    Box Material
    Cold-rolled steel (SPCC) and aluminum alloy
    Dimensions (mm)
    482.6(L) x 455(D) x 44.3(H)
    482.6(L) x 455(D) x 88.1(H)
    482.6(L) x 455(D) x 177(H)

  • Ordering Information
    Part Number
    Name
    Description
    SUN-MPO-SP12M1
    Fiber Optic Terminal Box
    19-inch, 1U sliding type rack mounted chassis, material: cold-rolled steel (SPCC) and aluminum alloy, black color; Max 12pcs MPO modules (modules and blank panels NOT included); Dimensions (mm): 482.6(L) x 455(D) x 44.3(H); Cable Management included
    SUN-MPO-SP24M2
    Fiber Optic Terminal Box
    19-inch, 2U sliding type rack mounted chassis, material: cold-rolled steel (SPCC) and aluminum alloy, black color; Max 24pcs MPO modules (modules and blank panels NOT included); Dimensions (mm): 482.6(L) x 455(D) x 88.1(H); Cable Management included
    SUN-MPO-SP48M4
    Fiber Optic Terminal Box
    19-inch, 4U sliding type rack mounted chassis, material: cold-rolled steel (SPCC) and aluminum alloy, black color; Max 48pcs MPO modules (modules and blank panels NOT included); Dimensions (mm): 482.6(L) x 455(D) x 177(H); Cable Management included
    SUN-AMPOFL-6DLC-1-SMA1-C9512-U
    MPO Cassette
    9512 series MPO cassette, PC; 1pc of "12-core MPO/APC female connector (without PIN, IL≤0.35dB)-LC/UPC" patch cord included, SM G657A1; 6pc duplex LC adapters and 1pc of MPO adapter (Type A, key up-key down) included; Suitable for SUN-MPO-SP series chassis; Universal polarity (1-1, 2-12, 3-2, 4-11, 5-3, 6-10, 7-4, 8-9, 9-5, 10-8, 11-6, 12-7)
    SUN-MPO-SP-AM-3DMPOA-SM
    Adapter Module
    6 ports MPO adapter module; Material: cold-rolled steel, black color; Dimensions (mm): 84.6 (W) x 127.8 (D) x 11.2(H); 3pcs SM duplex MPO adapters, Type A (key up-key down) included; Suitable for SUN-MPO-SP series chassis
    SUN-MPO-SP-AM-3DMPOB-SM
    Adapter Module
    6 ports MPO adapter module; Material: cold-rolled steel, black color; Dimensions (mm): 84.6 (W) x 127.8 (D) x 11.2(H); 3pcs SM duplex MPO adapters, Type B (key up-key up) included; Suitable for SUN-MPO-SP series chassis
    SUN-MPO-SP-AM-3DMPOA-MM
    Adapter Module
    6 ports MPO adapter module; Material: cold-rolled steel, black color; Dimensions (mm): 84.6 (W) x 127.8 (D) x 11.2(H); 3pcs MM duplex MPO adapters, Type A (key up-key down) included; Suitable for SUN-MPO-SP series chassis
    SUN-MPO-SP-AM-3DMPOA-OM3
    Adapter Module
    6 ports MPO adapter module; Material: cold-rolled steel, black color; Dimensions (mm): 84.6 (W) x 127.8 (D) x 11.2(H); 3pcs OM3 duplex MPO adapters, Type A (key up-key down) included; Suitable for SUN-MPO-SP series chassis
    SUN-MPO-SP-AM-3DMPOA-OM4
    Adapter Module
    6 ports MPO adapter module; Material: cold-rolled steel, black color; Dimensions (mm): 84.6 (W) x 127.8 (D) x 11.2(H); 3pcs OM4 duplex MPO adapters, Type A (key up-key down) included; Suitable for SUN-MPO-SP series chassis
    SUN-MPO-SP-BP-AL
    Blank Panel
    Material: Aluminum, black color; Dimensions (mm): 84.6 (W) x 98 (D) x 11.2(H); Suitable for SUN-MPO-SP series chassis
    SUN-MPO-SC-12LC-SMA1-SP
    Splicing Module
    12-core splice cassette, PC; Including 6pcs DLC/UPC SM adapters and 12pcs LC/UPC pigtails (SM, G657A1 fiber) and splice sleeves; Suitable for SUN-MPO-SP series chassis

  • ● FTTH access networks
    ● Telecommunication networks
    ● CATV networks
    ● Local Area Networks
