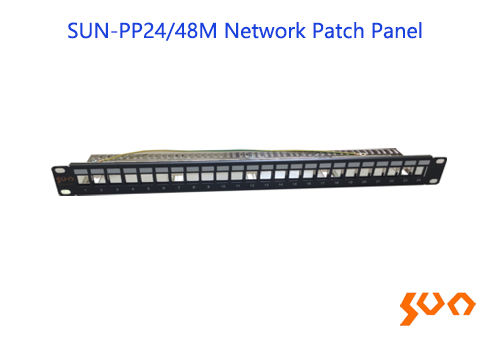

SUN-PP24/48M Network Patch Panel

Model: SUN-PP24/48M

Max 48 ports, 19" standard rack size

    Key Features

  • Modular design, easy to install and manage
  • 19’’ rack mounted
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  • Sun Telecom’s SUN-PP24/48M series of network patch panel are 19’’ standard rack and cabinet mountable. The finished product is available in 24 or 48 ports.
  • Specifications
    Parameters Specification
    No. of Ports 24 48
    Height (U) 1U 2U
    Category Cat5E or Cat6 or Cat6A

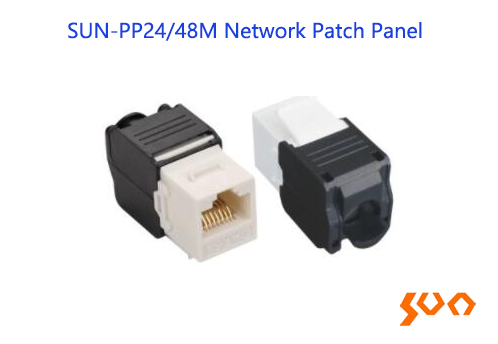

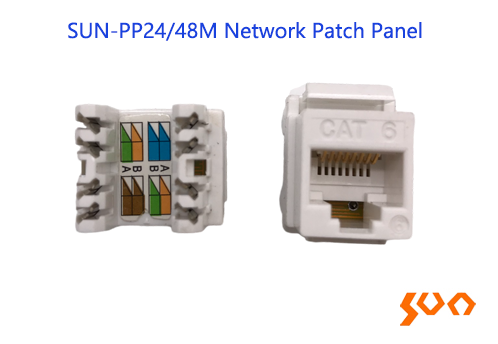

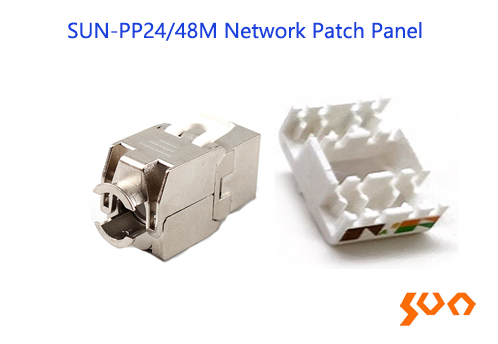

    Individual Module Type Punch-down type or toolless type, UTP or FTP
    Rear Cable Management Bar Included
    Frame Color Black
    Temperature Range (°C) -10~+60

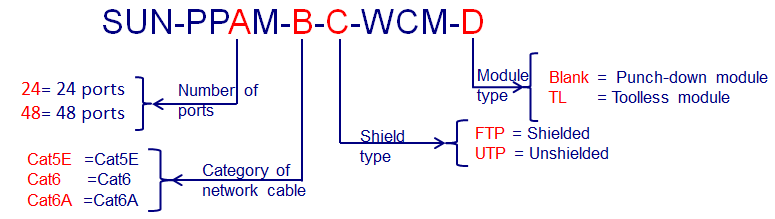

  • Ordering Information

    For Example:
    SUN-PP24M-CAT6-UTP-WCM
    Patch Panel
    1U Module Type; 24 ports; Cat6 UTP; with 24 pcs of individual punch-down type module and cable management

    SUN-PP48M-CAT6-FTP-WCM-TL
    Patch Panel
    2U Module Type; 48 ports; Cat6 FTP; with 48 pcs of individual toolless type module (SUN-KJ-CAT6-FTP-TL) and cable management
  • Application
    ●Copper network
