Position: Home > Products > Networking > Networking

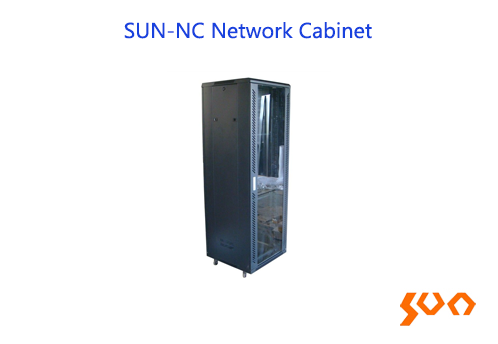

SUN-NC Network Cabinet

Model: SUN-NC

4~47U, Cold rolled steel, Black

    Key Features

  • Optional doors, glass, grid or steel plate door
  • Un-assembled, easy for trasnportaion
  • More space for cable management
  • High loading capacity
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  • Sun Telecom's SUN-NC network cabinet is used to combine installation panels, plug-ins, sub-boxes, electronic components, devices, and mechanical parts and components to form an integral installation box. According to the type, there are server cabinets, wall-mounted cabinets, network cabinets, standard cabinets. The capacity value is between 4U and 42U.
  • Specifications
    Parameters Specification
    Type ≤18U >18U
    Capacity (U) 4U、6U、9U、12U、15U、18U 22U、27U、32U、37U、42U、47U
    Dimensions (mm) 600(W) x 450(D)
    600(W) x 550(D)
    600(W) x 600(D)    		 600(W) x 800(D)
    600(W) x 1000(D)
    800(W) x 800(D)
    800(W) x 1000(D)
    Material Cold rolled steel sheet (SPCC)
    Max Load Capacity (kg) 40 800
    Material of Door Ordinary steel(Steel mesh/Tempered glass optional)
    Quantity of Shelf Plate (pcs) Optional 1~2 Optional 1~3
    Quantity of Fans (pcs) Optinal 1~2 Optional 1~4
    Quantity of PDU (pcs) Optinal 1~2 Optional 1~3
    Color Black

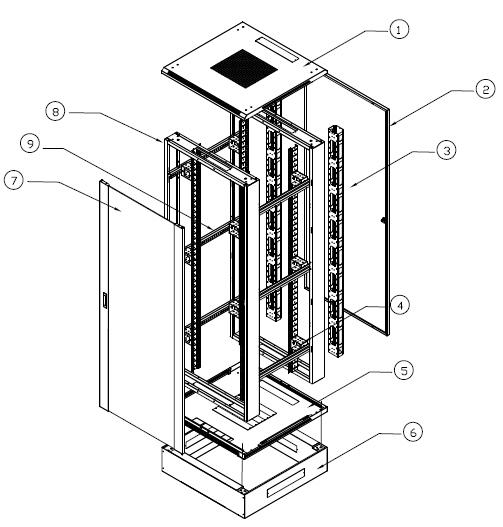

    Standard Configuration Table
      No. Part Name Material Qty.
    1 Top cover SPCC 1.0mm 1
    2 Rear door SPCC 1.2mm 1
    3 Vertical cable
    management rail    		 SPCC 1.2mm 2
    4 Connection box SPCC 1.2mm 12
    5 Bottom panel SPCC 1.0mm 1
    6 Rack base SPCC 2.0mm 1
    7 Front door SPCC 1.2mm 1
    8 Door frames SPCC 2.0mm 2
    9 Horizontal beam SPCC 1.5mm 6
      Side door
    (Not shown on
    the picture)    		 SPCC 1.0mm 2

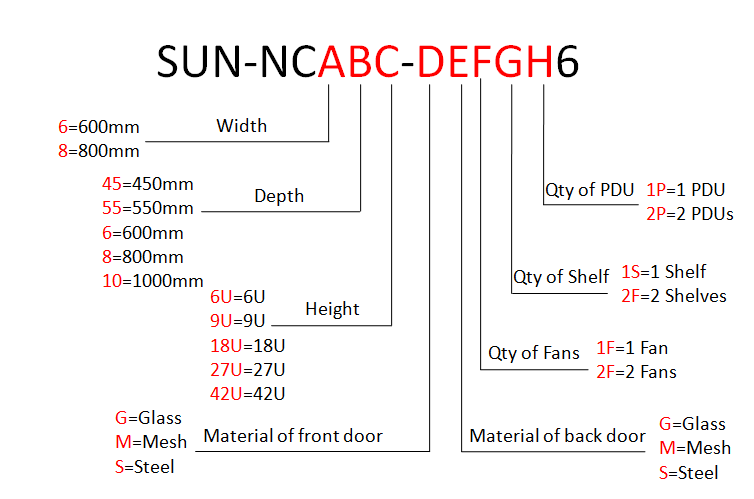

  • For Example:
    SUN-NC6627-MM2F1S1P6
    Network Cabinent; 27U, 600(W) x 600(D); with 1 plate, 1 PDU(6 ports), 2 fans, steel mesh doors (both front and back); 4 wheels; Floor type.
