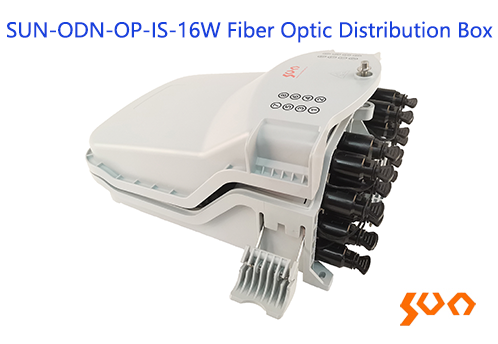

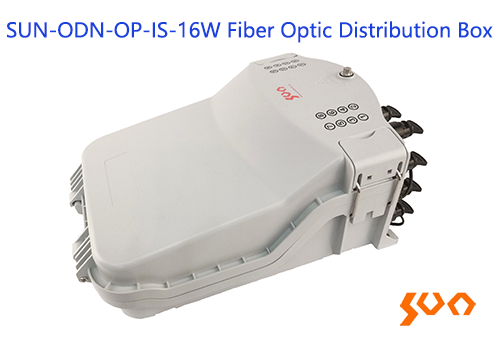

SUN-ODN-OP-IS-16W Fiber Optic Distribution Box

Position: Home > Products > Fiber Optic Cable Management > Fiber Optic Distribution Boxes

Indoor or outdoor, max 1*1:16 or 2*1:8 PLC splitters ( blockless type ) , max adapter, outdoor waterproof adapter

Key Features

　Sun Telecom’s SUN-ODN-OP-IS-16W fiber optic distribution box is widely used as a termination point for the connection of feeder cable and drop cable in FTTx communication network system. The fiber splicing, distribution, splitting, termination can be done inside the box. It provides solid protection and management for the FTTx networks.

Box Specifications

Parameters		Specification
Material	Box	PC+ABS
	Internal Metallic Parts	Stainless steel 304
	Metallic Parts (External, installation accessory)

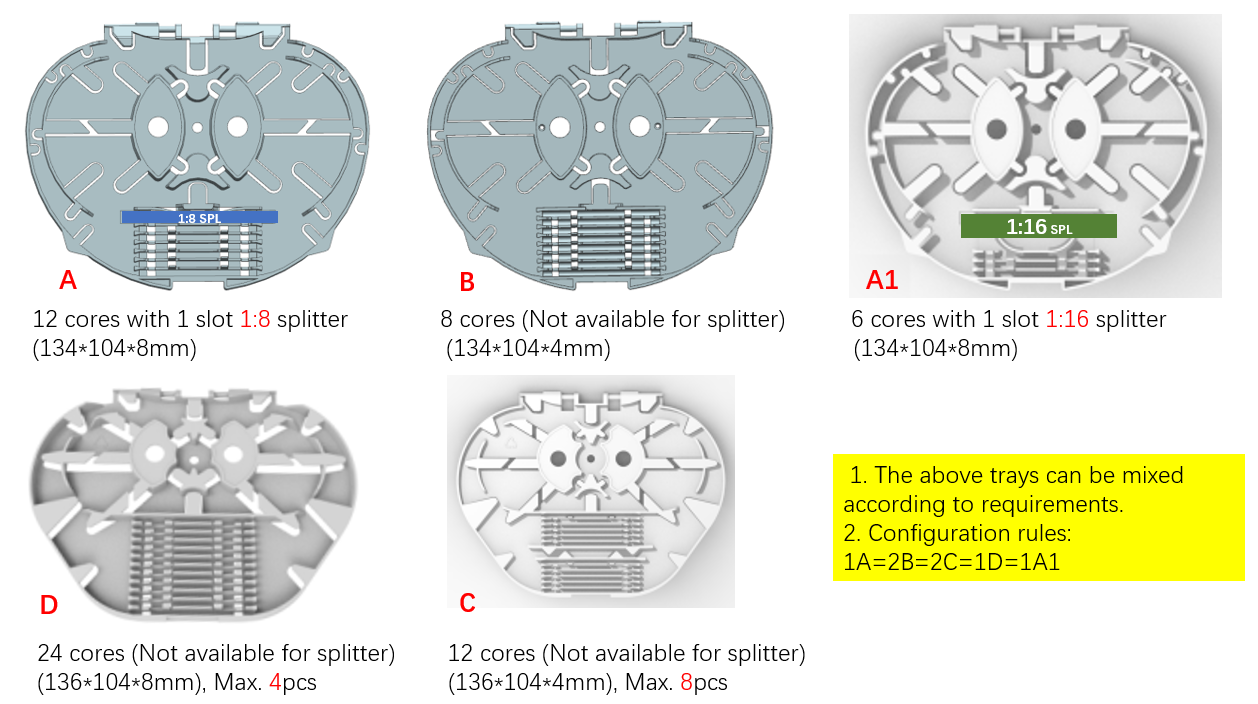

Type of Splice Tray¹		12 cores/tray with 1 slot for 1:4/1:8 splitter; 6 cores/tray with 1 slot for 1:16 splitter; 8 cores/tray without slot for splitter; 12 cores/tray without slot for splitter; 24 cores/tray without slot for splitter; Others
Max. no. of Splice Tray (pcs)		4~8
Max. Capacity of Splicing (cores)		Depend on different type of splice tray
Splitter	Suitable Type	1:4, 1:8 or 1:16blockless type splitter (Different type splice trays for choice)
	Dimensions (mm)	60x7x4 (1:4, 1:8); 60x12x4 (1:16)
	Max. qty of Splitter/tray (pc)	1
InputMid-span Port	Qty (pc)	1
	Cable Diameter (mm)	8~16
Output Branch Port³	Qty (pcs)	2
	Suitable Cable Diameter (mm)	8~16
Waterproof Adapter	Suitable Adapter Type²	SC outdoor water-proof adapter
	Quantity (pcs)	16
IP Rate		IP65
Color		Gray
Installation Method		Wall mounted, pole mounted or aerial mounted
Temperature Range (°C)		-20 ~ +60
Relative Humidity (%) (+30°C)		≤85
Atmospheric Pressure (Kpa)		70~106
Dimensions (mm)		319.3(L) x 214(W) x 133(H)

Note: 1. Different type of splice tray

2. SC outdoor water-proof adapter

3. Input and output adapter ports

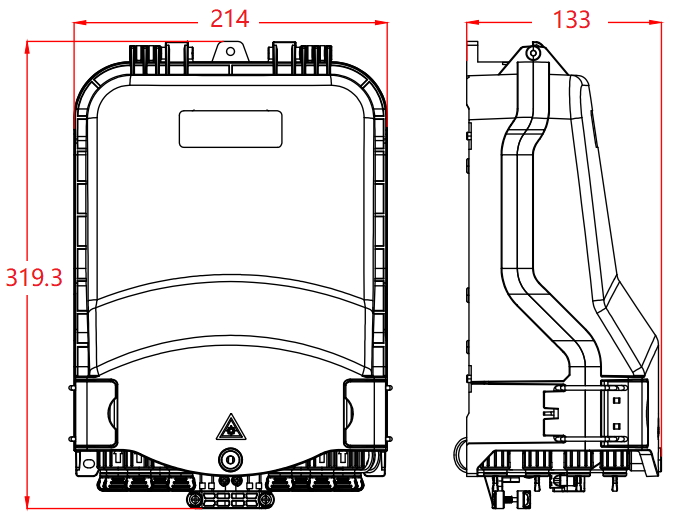

Dimensions (mm)

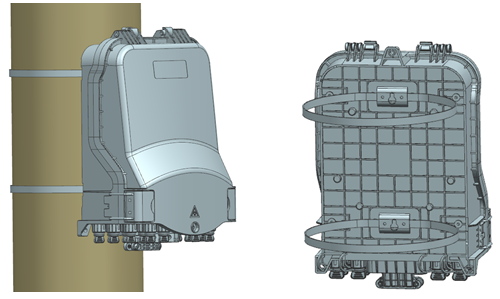

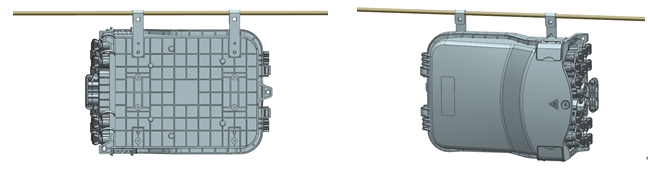

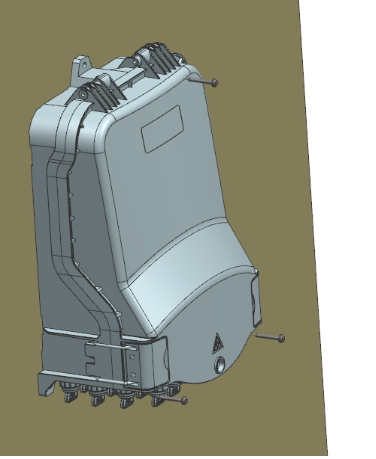

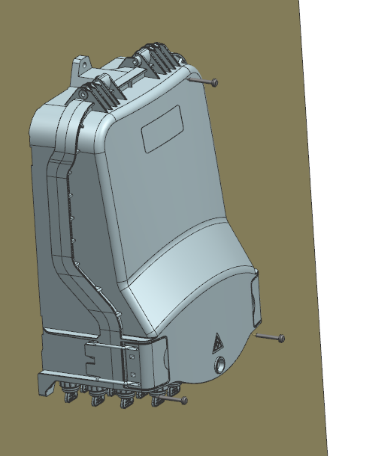

Installation for Reference

Cable Route

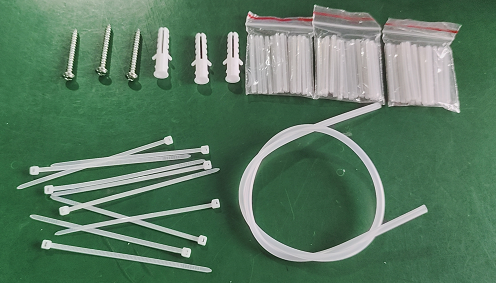

Optional Accessory

Ordering Information

Model	Name	Description
SUN-ODN-OP-IS-16W-2SPL18-48GP-2TD	Fiber Optic Distribution Box	Gray; 4 trays included: 2 trays for 1:8 splitter (tray A) and 2 trays of 24 cores/tray (Tray D) for splicing, max. splicing 48 cores; 16 pieces of outdoor waterproof adapter ports (splitter and waterproof adapters not included); Box material: PC+ABS; External metallic parts and mounting accessory: SUS304; Dimensions (mm): 319.3(L) x 214(W) x 133(H); Pole mounting accessories
SUN-ODN-OP-IS-16W-SPL116-72GP-3TD	Fiber Optic Distribution Box	Gray; 4 trays included: 1 tray for 1:16 splitter (tray A1) and 3 trays of 24 cores/tray (Tray D) for splicing, max. splicing 72 cores; 16 pieces of outdoor waterproof adapter ports (splitter and waterproof adapters not included); Box material: PC+ABS; External metallic parts and mounting accessory: SUS304; Dimensions (mm): 319.3(L) x 214(W) x 133(H); Pole mounting accessories
*SUN-AD-ASCWP-B23-FT-N120**	Fiber Optic Adapter	Out-door waterproof adapter, SC/APC, simplex, Ceramic sleeve, black cap, 3 proud design; including waterproof housing ,suitable for 2*3mm drop cable; SC/APC fast connector not included

● FTTH access networks
● Telecommunication networks
● CATV networks
● Local area networks

SUN-ODN-OP-BS-16SC-BA-16T Fiber Optic Distribution Box

Model: SUN-ODN-OP-BS-16SC-BA-16T

Can install two 1x8 PLC splitters and 16 pieces of SC or duplex LC (SC type) adapters, IP65

Features

Compact size, light weight
Moisture-proof, dust-proof, water-proof (IP65), anti aging, anti corrosion, etc
Turn-over plate design, independent fiber route
8 round cable ports applicable for max 12mm cables, and 16pcs ports for 2*3mm drop cables
Indoor or outdoor aerial mounted

Learn More
