Position: Home > Products > Fiber Optic Cable Management > Fiber Optic Splice Closures

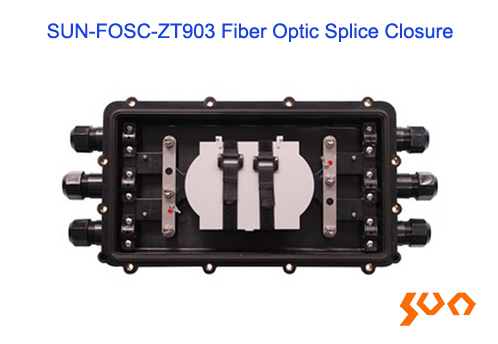

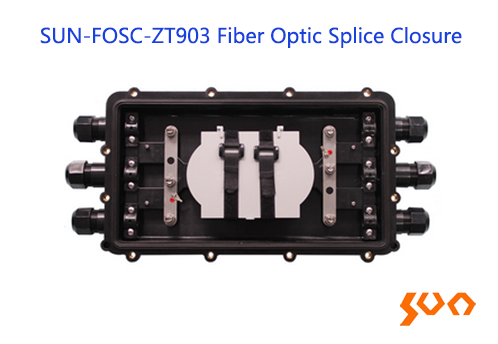

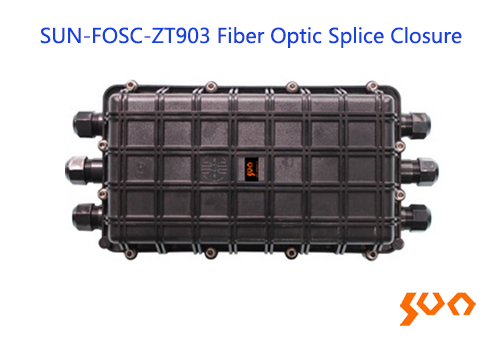

SUN-FOSC-ZT903 Splice Closure

Model: SUN-FOSC-ZT903

Max 168 fibers, 24 fiber tray, 8-20mm cable, 6 ports, screw fastening

    Key Features

  • Advanced internal design with enough space for fiber splicing and storage
  • Long lasting body with high-strength PC plastic material
  • Protection rating IP68
  • Usable for multiple number of times
  • Lower and upper cases with screw fastening locking
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  • 　Sun Telecom's SUN-FOSC-ZT903 fiber optic splice closure is used for outdoor cable distribution, splicing, storage and splicing point protection. This type of closure can be used in aerial mounting, wall mounting, direct buried and pipeline laying installations.
  • Specifications
    Parameters Specification
    Material PC
    Protection Rating IP68
    No. of In-out Ports 6
    Cable Diameter (mm) 8~20
    No. of Fibers/Tray 24
    Max. Capacity of Fibers                   168
    Dimensions (mm)                                                                       504(L) × 242(W) × 130(H)

    Standard Package
    No. Product Unit Quantity
    1 Closure Box set 1
    2 Protective Sleeves pieces According to no. of fibers
    3 Ties pieces 4* no. of trays
    4 Insulation Tape piece 1
    5 Drying Agent piece 1
    6 Ground Wire piece 1
    7 Emery Cloth piece 1
    8 Numbering Paper piece According to no. of fibers
    9 Special Wrenches pieces 3 (Butterfly style wrench, small plastic wrench for cable in/out ports, and Allen wrench)

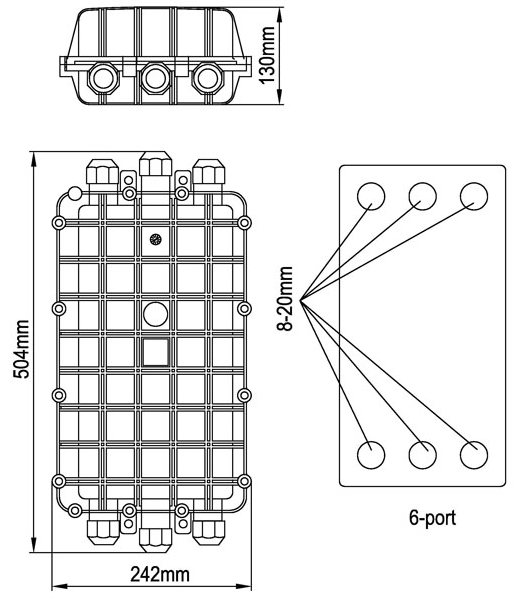

    Structural Drawing


    Optional Accessories
     No.  Product Unit Quantity
    1 Earthing Deriving Device set 1
    2 Valve piece 1
    3 Protection Tube piece 1
    4 Aerial Mounting set 1
    5 Wall Mounting                                  set       1

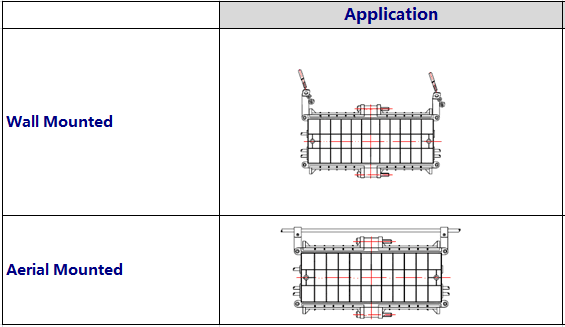

    Installation

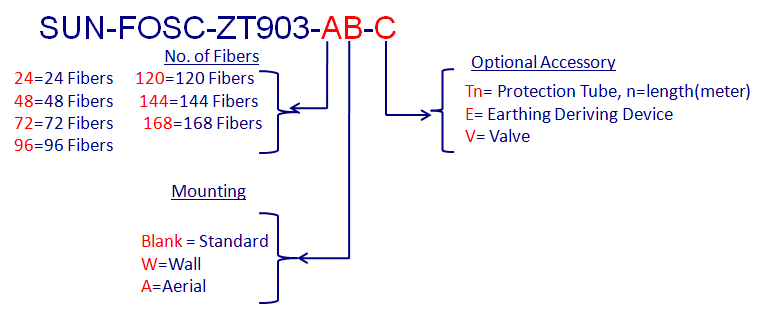

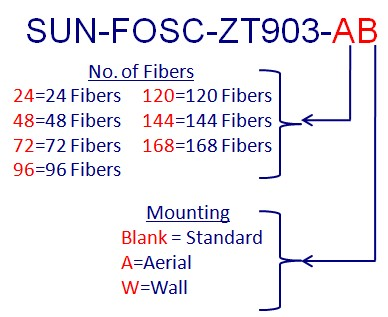

  • Example 1:
    Model Name Description
    SUN-FOSC-ZT903-24A Fiber Optic Splice Closure In-line type, screw fastening, mechanical sealing; 24 fibers, 1 tray of 24 fibers/tray (12 slots/tray) included; 6 cable ports, max capacity: 168 fibers; IP68, material: PC, dimensions (mm): 504 (L) x 242 (W) x 130 (H); With accessories for aerial application

     Example 2:
    Model Name Description
    SUN-FOSC-ZT903-48W Fiber Optic Splice Closure In-line type, screw fastening, mechanical sealing; 48 fibers, 2 trays of 24 fibers/tray (12 slots/tray) included; 6 cable ports, max capacity: 168 fibers; IP68, material: PC, dimensions (mm): 504 (L) x 242 (W) x 130 (H); With accessories for wall mounting

  • ● FTTH access networks
    ● Telecommunication networks
    ● CATV networks
    ● Local Area Networks
