As data traffic continues to explode, data centers are under immense pressure to increase port density and transmission speeds while minimizing physical footprint. Traditional cabling methods often lead to "cable spaghetti," hindering airflow and complicating maintenance. Enter the MPO (Multi-fiber Push-On) Chassis and Cassette system—the gold standard for modern, scalable, and high-performance network infrastructure.
1. What is an MPO Chassis and Cassette?
At its core, the MPO system is a modular connectivity solution designed to bridge the gap between high-fiber-count backbone cables and standard equipment interfaces.

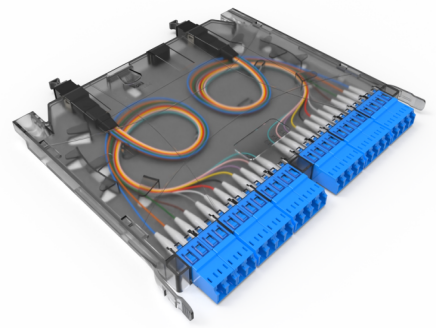

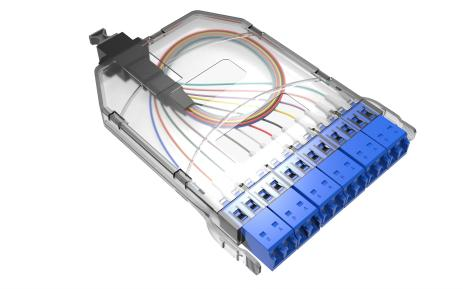

MPO Cassette: This is a pre-terminated, "plug-and-play" module. Inside the cassette, a high-density MPO/MTP connector (which can hold 12 or 24 fibers) is transitioned to standard LC or SC duplex connectors. It acts as the "translator" between the multi-fiber backbone and your servers or switches.

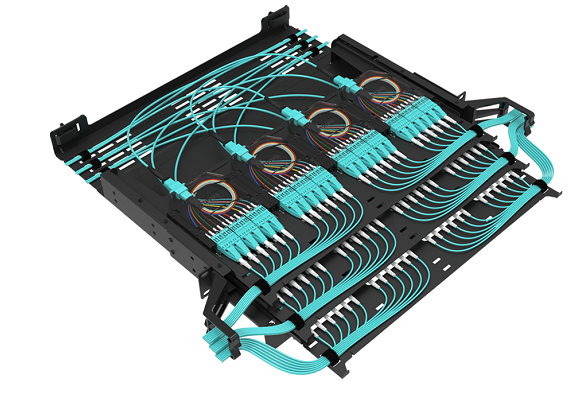

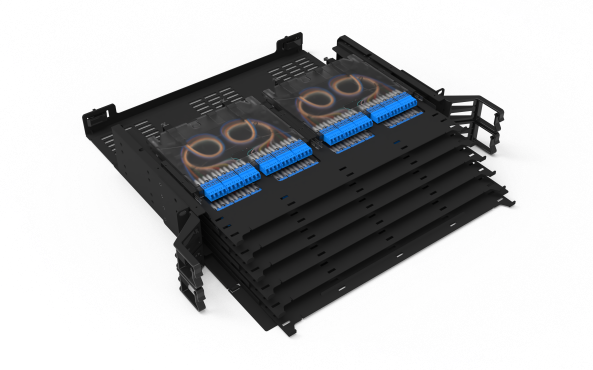

MPO Chassis: This is the rack-mountable enclosure (usually 1U, 2U, or 4U) that houses multiple MPO cassettes. It provides a structured environment to organize, protect, and manage the fiber connections.
2. What are the Benefits?
Transitioning to an MPO-based modular system offers several strategic advantages for data center managers:
1.Extreme High Density: By using MPO connectors, you can pack hundreds of fibers into a single rack unit (RU), significantly saving valuable floor space.
2.Rapid Deployment: Since cassettes are pre-terminated and tested in the factory, there is no need for complex field splicing. You simply "plug and play," reducing installation time by up to 75%.
3.Superior Airflow & Cooling: Modular cabling is significantly thinner than traditional bundles. This reduces congestion in cable trays and behind racks, allowing for better thermal management and lower energy costs.
4.Future-Proofing: As you migrate from 10G to 40G, 100G, or even 400G, you often only need to swap the cassettes or patch cords rather than replacing the entire backbone infrastructure.
3. Applications
The versatility of MPO chassis and cassettes makes them indispensable in various high-demand environments:
1.Enterprise Data Centers: Ideal for organizing large-scale storage area networks (SAN) and core switching layers.
2.Cloud Computing Providers: Supports the rapid expansion and massive throughput required by hyper-scale facilities.
3.Telecommunications Central Offices: Used to manage high-density fiber distributions in space-constrained environments.
4. Conclusion
In the race to build faster, more efficient networks, the MPO Chassis and Cassette system stands out as the ultimate solution. It combines the speed of pre-terminated components with the flexibility of modular design, ensuring your data center is organized, scalable, and ready for the future of high-speed data transmission.
Sun Telecom specializes in providing one-stop total fiber optic solutions for all fiber optic application industries worldwide. Contact us if you have any needs.
