GYTY53, Loose Tube Armored & Double Sheathed Cable, 2~144 cores

    Key Features

  • Good mechanical and temperature performance
  • High hydrolysis resistance and high strength loose tube
  • Perfect crush resistance
  • High tensile strength ensured by steel wire
  • Good moisture-proof ensured by PSP
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  • Sun Telecom's SUN-OC-SLT-SP2 stranded loose tube armored and double sheathed cable (GYTY53) construction is that 250um fibers are positioned in a loose tube which is made of high modulus plastic and filled with a water-resistant filling compound; A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member; Tubes are stranded around the strength member into a compact and circular cable core; The cable core is filled with the filling compound to protect it from water ingress and covered with a polyethylene (PE) inner sheath; After the PSP (Steel Tape) is longitudinally applied over the inner sheath, the cable is completed with a polyethylene (PE) outer sheath.
  • Standards
    Sun Telecom's SUN-OC-SLT-SP2 stranded loose tube armored and double sheathed cable (GYTY53) complies with standard YD/T901 and IEC60794-1
    Fiber Optic Characteristics

    Parameters Specification
    Fiber Type G.652D (9/125μm) G651A1 (50/125μm) G651A1b (62.5/125μm)
    Attenuation (dB/km) @850nm   ≤ 2.3 ≤ 2.7
    @1300nm   ≤ 0.6 ≤ 0.6
    @1310nm ≤ 0.35
    @1550nm ≤ 0.21
    Bandwidth (MHz·km) @850nm   ≥ 500 ≥ 200
    @1300nm   ≥ 500 ≥ 500
    Numerical Aperture   0.200±0.015NA 0.275±0.015NA
    Cable Cut-off Wavelength (nm) ≤ 1260
    Cable Specifications

    Parameters Specification
    Fiber Count 2~36 38~60 62~72 74~96 98~120 122~144
    Cable Diameter (mm) (±0.3) 11.4 12.3 12.3 13.6 14.8 16.0
    Cable Weight (kg/km) 178 205 205 200 216 245
    Tensile Strength (N) Short Term 3000
    Long Term 1000
    Crush Resistance (N) Short Term 3000
    Long Term 1000
    Bending Radius (mm) Dynamic 25D
    Static 12.5D
    Attenuation (After Cable) (dB/km) MM Fiber @850nm ≤ 3.0 (50/125μm)
    ≤ 3.3 (62.5/125μm)
    MM Fiber @1300nm ≤ 1.0
    SM Fiber @1310nm ≤ 0.36
    SM Fiber @1550nm ≤ 0.22
    Operating Temperature (°C) -40 ~ +70
    Storage Temperature (°C) -40 ~ +70

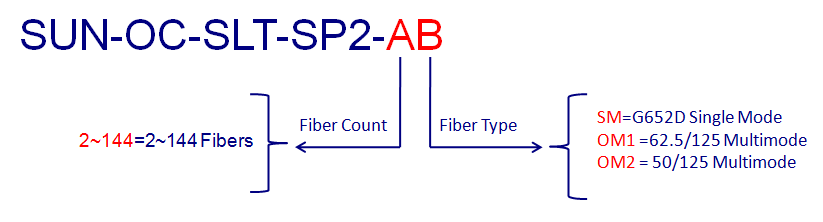

  • Example: SUN-OC-SLT-SP2-12SM-I
    GYTY53 outdoor cable, stranded loose tube, steel wire central strength member, single PSP armor and double PE jacket; 12 fibers, G652D

  • ● Core network
    ● Metropolitan area network
