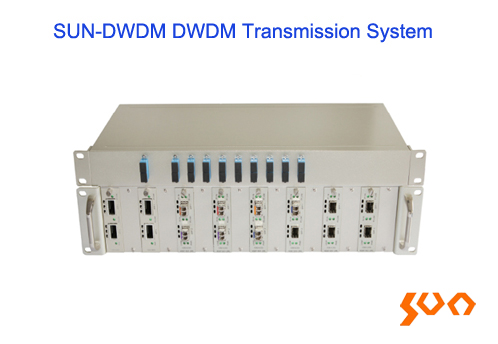

SUN-DWDM DWDM Transmission System

Model: SUN-DWDM

48 transmission channels in maximum, speed rate can reach 40Gbit s in a single channel

    Key Features

  • Large capacity
  • Using optical fiber with single mode at present, the transmission rate of each channel can reach 10Gbit/s. And the total capacity can be 160Gbit/s.
  • 1+1 backup system for heat redundancy of power supply
  • Flexible and transparent access for various rates and services
  • It provides various rate and service accesses which can support the services of Ethernet, PDH, SDH, and CATV and etc.
  • The interfaces of the plug and play customer service module cards can be both optical fiber port and RJ 45 Ethernet port.
  • Customers can choose its type flexibly according to their requirement.
  • Support single fiber, Bidi and dual fiber, Bidi transmission at the COM port of this system.
  • Flexible network management configuration and management mode
  • This system has high efficiency and eminence performance to protect customers’ benefit and investment.
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  • 　SUN Telecom' s DWDM system is a high speed and large capacity transmission system. With 48 transmission channels in maximum, the speed rate can reach 40Gbit/s in a single channel, and the total capacity can be 1920Gbit/s. it can fully meet the requirement of telecom operator in super large capacity and long distant transmission, offer a firm platform for the transmission in multi-service and the upgrade for the network in the future. It is the best solution for the shortage of fiber cable at present.

    DWDM Transmission System  (2U + 1U)
    This series 2U+1U rack-type DWDM equipment adopts the flexible expanding framework, supports modular on-line upgrade. It is easy to expand the capacity and maintain the system. By network management function in in-band and out-band, it is easy to manage. With various service interface, flexible configuration, economic network structure and stable operating, this system can effectively meet the demand of the large transmission capacity in the MAN in new period.
  • Parameter Specifications
    Max. Capacity 4-channel  (4X10G)
    8-channel  (8X10G)
    16-channel  (16X10G)
    32-channel  (32X10G)
    40-channel  (40X10G)
    48-channel  (48X10G)
    Wavelength Range Compliant with standard of ITU-I G.695
    Access Service Type PDH, ATM
    STM-256/STM-64/STM-16/STM-4/STM-1
    OC-768/OC-192/OC-48/OC-12/OC-3
    FE, GE, 10GE
    FICON/ESCON/FIBER Channel/CATV
    Transmission Mode at Optical Interface Adopts 2R transmission mode, each channel supporting transparent transmission at a rate below 2.5Gbit/s.
    Adopts 3R transmission mode, each channel supports the rate such as 155Mbit/s, 622Mbit/s, 1.25Gbit/s, 2.5Gbit/s, and 10Gbit/s,
    40Gbits (Optional)
    Topological Structures Point to point; point to multi-points; chain; ring; single fiber
    Bidirectional
    Optical Fiber Type G.652 G.653 G.655
    Network Management Mode CLI , TELNET, SNMP, WEB
    Dimensions (mm) 25 (W) × 88 (H) × 116 (D)  (2U OTU card)
    440 (W) × 44 (H) × 230 (D)  (1U passive chassis)
    428 (W) × 88 (H) × 322 (D) (2U chassis)
    Operation Temp.  (°C) -10 ~ 60
    Storage Temp.  (°C) -40 ~ 80
    Relative Humidity 5% ~ 95% (non-condensing)
    Power Supply (Standard) 220V AC, 50Hz,; -48V DC (Optional)
    Safety and EMC Compliant with FCC, UL, CE, TUV, CSA
    Consumption 85W (10G DWDM 150W)

  • SUN-DWDM-A-B-C-D-E-F
    A B C D E F
    Rate The number of channel Transmission technology Client interface Management system Power
    0=155M
    1=1.25G
    2=2.5G
    3=10G
    4=40G    		 04=4 channel
    08=8 channel
    16=16 channel
    32=21 channel
    40=40 channel
    48=48 channel    		 1=two-fiber bidirectional
    2=bidirectional
    3=single fiber unidirectional    		 SS=Single-Mode Single-fiber LC
    MS=Multi-mode Single-fiber LC    		 M=Managed
    Blank=Unmanaged    		 2AC1=Dual power AC 110v
    2AC2=Dual power AC 220V
    2DC= Dual power DC

  • ● Line Monitoring
    ● WDM Network
    ● Telecommunication
    ● Cellular Application
    ● Fiber Optical amplifier
    ● Access Network
