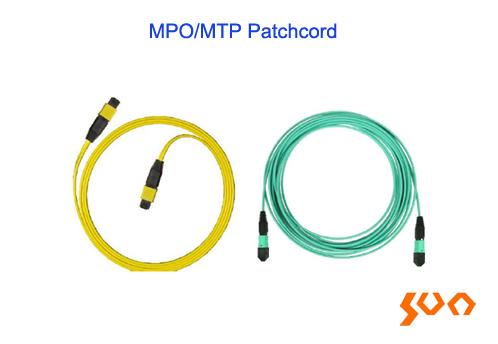

SUN-MPO Fiber Optic Patchcord

Model: SUN-MPO

    Key Features

  • Low insertion loss
  • High return loss
  • Good durability
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  • Sun Telecom's SUN-MPO patch cord is multi-fiber cable with MPO connector terminated at both ends. With low insertion loss, high return loss, and good durability, it is used for high-density fiber patching in data centers and other high fiber environments which need space saving and reduce cable management troubles.

  • Parameters Specification
    Fiber Type Single mode Multimode
    G652D (G657A/G657B optional) OM3/OM4 (OM1/OM2 optional)
    Insertion Loss (dB)  ≤ 0.7 (0.35 optional)
    Return Loss (dB) UPC ≥ 45 ≥ 20
    APC1 (8.0°±0.2°)
     (Down-angled)    		 ≥ 55 /
    Durability (dB) 500 mating times △IL ≤ 0.2, △RL ≤ 5
    Cable Type Round cable (flat ribbon cable optional)
    Jacket Material PVC (LSZH optional)
    Outer Diameter (mm) 3.0
    Temperature Range(°C) -20 ~ +70
    Note: 1 MPO APC 8-degree is usually down-angled (IEC 61754-7-1 2014, Figure 7).


                                     Down-angled                                                               Up-angled


                            (IEC 61754-7-1:2014 Figure 7&8)

    Application NOTE: Generally a type B (key up – key up) MPO adapter WILL NOT be used to connect two MPO APC connectors.


    Cable Structure



    Fiber Identification and Polarization Classification (12 cores)
    Polarization A: Straight through connection, key up – key down, 1-1…12-12



    Polarization B: Cross over connection, key up – key up, 1-12…12-1




    Polarization C: Pair cross connection, key up – key down, 1-2, 2-1…11-12, 12-11




    Fiber Identification and Polarization Classification (24 cores)
    Polarization A: Straight through connection, key up – key down, 1-13…12-24…13-1… 24-12


    Polarization B: Cross over connection, key up – key up, 1-24…12-13…13-12…24-1



    Polarization C: Pair cross connection, key up – key down, 1-14…12-23…13-2…24-11



    Another type Polarization C: Pair cross connection, key up – key down, 1-2…12-11…13-14…24-23





  • Example: SUN-AMPOF-10M-AMPOF-SM-12C-3R-C-L
    MPO/APC (Female) - MPO/APC (Female); Total length: 10M (Tolerance:0~0.1M); SM G652D, 12 cores, 3.0mm round cable, LSZH jacket; Cross connection (Type B, 1-12,2-11….11-2,12-1)
