FC ⁄ SC ⁄ ST, backlight control, adjustable output power
|
Parameters
|
Specification
|
|
|
Wavelengths (nm)
|

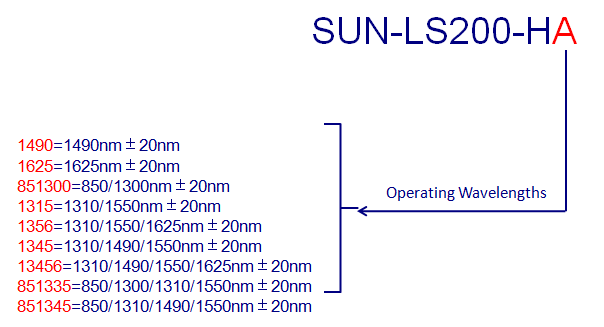

650/850/1300/1310/1490/1550/1625, up to 4 selectable wavelengths
|
|
|
Fiber Type
|
SM/MM
|
|
|
Emitter Type
|
FP-LD
|
|
|
Output Power (dBm)
|
10mw (for 650nm)
|
-12~-5 adjustable (except 650nm )
|
|
Adjustable Step Size (dBm)
|
<0.5
|
|
|
Stability (dB, 30min, 20 °C)
|
0.15
|
|
|
Modulation Frequency CW (Hz)
|
270/330/1K/2K
|
|
|
Optical Port
|
FC/SC/ST interchangeable port
|
|
|
Power Supply
|
3*AA 1.5V batteries
|
|
|
Battery Life (Hours)
|
45
|
|
|
Operating Temperature (°C)
|
-10~60
|
|
|
Storage Temperature (°C)
|
-25~70
|
|
|
Dimensions (mm)
|
175(L) x 90(W) x 44.5(H)
|
|
|
Weight (g)
|
255 (without battery)
|
|
|
No.
|
Product
|
Unit
|
Quantity
|
|
1
|
Light Source
|
set
|
1
|
|
2
|
FC Adapter
|
piece
|
According to the no. of optical port
|
|
3
|
SC Adapter
|
piece
|
According to the no. of optical port
|
|
4
|
ST Adapter
|
piece
|
According to the no. of optical port
|
|
5
|
Power Adapter
|
piece
|
1
|
|
6
|
Soft Bag
|
piece
|
1
|
|
7
|
USB Disk
|
piece
|
1
|
SUN-OPM200 Optical Power Meter
Model: SUN-OPM200
FC ⁄ SC ⁄ ST, REF, backlight control, USB port
Features
User self-calibration function Power measurements in dBm or mW Auto power off after 10 minutes without operation Standard FC/SC/ST interchangeable port Backlight LCD display for night operation REF setting function Intelligent backlight control Auto wavelength and frequency identification High storage capacity USB communication port for data transfer
SUN-OC-SLT-SP Stranded Loose Tube Light-armored (Steel Tape) Cable (GYTS)
Model: SUN-OC-SLT-SP
GYTS, Loose Tube Light-armored (Steel Tape) Cable, 2-144cores
Features
Good mechanical and temperature performance High hydrolysis resistance and high strength loose tube Good crush resistance and flexibility High tensile strength ensured by steel wire Good moisture-proof ensured by PSP Gopher protected cable
SUN-DC240 FTTH Indoor Cable
Model: SUN-DC240
Drop Cable, 1-4 cores, G657, flame retardent, for FTTH application
Features
Good crush resistance ensured by parallel strength member Good tensile strength ensured by single steel wire Low smoke, zero halogen and flame retardant sheath Simple Structure, light weight and high practicability
Fiber Optic Patch Cords and Pigtails
Model:
Different interface optional, Easy operation, Low insertion loss
Features
Low insertion loss High return loss Good repeatability
SUN-1000 Ethernet Media Converter
Model: SUN-1000
10 ⁄ 100 ⁄ 1000Mbps, 1xRJ45, 1xOptical port
Features
Compliance with IEEE standards MTBF of more than 50000 hours Full & half duplex operation and auto-negotiation Electric interface self-adapting parallel/crossover connections Longest 1552 byte data packet transmission QoS ensuring VoIP data packet transmission STP Spanning Tree forming a redundant network Low power consumption and low heat for longtime stable operation Single/Multi mode and Single/Dual fiber transmission modes Network Management Function (optional)
SUN-FOSC-ZT607 Splice Closure
Model: SUN-FOSC-ZT607
Max 96 fibers, 24 fibers tray, 8-16mm cables, 6 ports, sliding locking
Features
Advanced internal design with enough space for fiber splicing and storage Long lasting body with high-strength PC plastic material Protection rating IP68 Usable for multiple number of times Lower and upper cases with sliding locking
