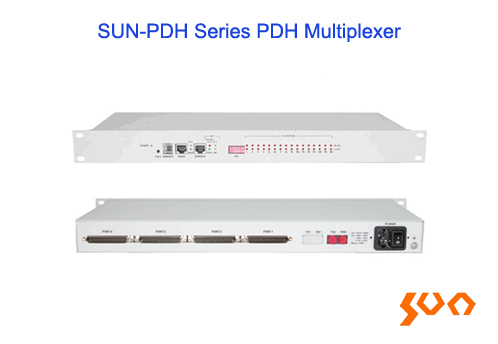

SUN-PDH Series PDH Multiplexer

Model: SUN-PDH

E1+Ethernet to Fiber

    Key Features

  • Provide 16 E1 digital ports, 75Ω or 120Ω impedance
  • E1 & V35 channel support BERT (Bit Error Rate Test)
  • Provide an order line port
  • Provide a RS232 asynchronous data port
  • V.35 support 7 clock mode (DCE: location, restoration, exterior input; DTE: send RC receive TC, send RC receive RC, send TC receive TC, send TC receive RC) is suitable for all V.35 request for port clock mode on the market at present
  • V.35 port clock mode, phase, optional function for time slot and E1/V.35 exchange function for data channel can have access to Network Software Arrangement
  • The Ethernet ports are featured with10/100Base-Tx self-adaptive; Bandwidth can be adjusted on the basis of 0.5M unit; 100M maximum
  • Support order wire
  • Provide a management port for centralized monitoring and supporting system upgrade
  • Provide a set of control switch for device testing and maintenance
  • Dual optical port to reach 1+1 service protection
  • Based on ASIC, simple circuit, low power consumption and high reliability
  • Being suitable for multiple power environment of -48VDC or 220VAC
  • Standard 1U rack with small size, light height, high reliability and easy for installation.
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  • 　SUN-PDH series Fiber Multiplexer is integrated service transmission equipment manufactured by our company. With its self-developed special-purpose integrated circuit. It combines standard 2M traditional TDM service interface with 10/100Base-Tx Ethernet data service interface, and convert the data into high-speed optical signals to transmit over fiber, making it possible transmitting both high-speed data service and traditional TDM service over the same pair of fibers, meeting user’s requirements for integrated access of high-speed data service and traditional TDM service with the minimal cost. The advanced dual-light-beam switching and restoration mechanism enables the equipment to achieve 1+1 protection for services.
  • Parameters Specifications
    E1 Interface Electrical Characteristics
    Nominal rate (kbps) 2048, tolerance ± 50ppm
    Interface Code Type HDB3
    Interface Impedance (Ω) 75 (unbalanced) or 120 (balanced)
    Digital Interface Electrical Characteristic comply with ITU-TG.703 REC
    Jitter Transfer Characteristic Comply with ITU-T G.823 REC
    Input Jitter Tolerance Comply with ITU-T G.823 REC
    Output jitter Comply with ITU-T G.823 REC
    Level ± 2.37V ± 10% or ± 3.00V ± 10%
    Interface Connector BNC Q9 coaxial
    E1 Local Loopback Per channel
    Remote Loopback Per channel
    Power Supply
    DC supply voltage (V) -48 DC, tolerance range of -36 ~ -72
    Power supply ripple (mVp-p) ≤ 240mVp-p
    AC Supply Voltage (V) 220 AC ± 20%, 50Hz
    Power (W) ≤ 10
    Optical Interface Characteristics
    Output Power (dBm) -3 ~ -8
    Receiver Sensitivity (dBm) -33 ~ -40
    Fiber Interface Dual SC / Dual FC / Single SC
    Applied Optical Fiber Single mode, multimode
    V.35
    Port Rate N x 64k
    Without Traffic Control, Transparent Transmission
    Connector DB25 slot
    Ethernet Interface
    Interface IEEE 802.3 10/100Base-Tx
    Interface Rate 10/100M self-adaptive
    Band Step size 0.5M unit, Max. 100M
    Serial Management Interface and Extended Features
    Interface RS-232 Port
    Interface Level RS-232 level
    Connector RJ-45
    Management Port Baud Rate (bit/s) 57600
    Extended Serial Baud Rate (bit/s) Up to 19200
    Work Environment
    Ambient Temperature (°C) 0 ~ 45
    Relative Humidity ≤ 90% (35°C)
    Atmospheric Pressure (KPa) 86 ~ 106
    Dimensions (mm) 483 x 175 x 45

  • Model Name Description
    SUN-PDH-2016E1-X PDH Multiplexer Standard 1U Multiplexer, with 16 × E1 (120Ω) + 1 x 10/100Base-T, 1 × RS232, 1 × public phone, 1 × network management port, 60km, SM, Dual Fiber SC Optical Interface, built-in error detection, E1 loopback features, 220V (or 48V) power supply
