SUN-PON-WDM WDM

Model: SUN-PON-WDM

PON WDM, Low insertion loss

    Key Features

  • Low insertion loss
  • Low PDL
  • High channel isolation
  • Excellent environmental reliability
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  •   Sun Telecom's SUN-PON-WDM PON WDM can expand the capacity of single fiber by achieving 1310/1490/1550nm bidirectional communication over one fiber, in order to save fiber resources.
  • Specifications
    Parameters Specification
    Transmission Wavelength (nm) 1550
    Reflection Wavelength (nm) 1310/1490
    Insertion Loss (dB) Transmission ≤ 1.0
    Reflection ≤ 0.8
    Isolation (dB) Transmission ≥ 30
    Reflection ≥ 17
    PDL (dB) ≤ 0.1
    Return Loss (dB) ≥ 45
    Operating Temperature (°C) -20 ~ +70
    Storage Temperature (°C) -40 ~ +85

  • Model Name Description
    SUN-PON-WDM WDM PON WDM, Box with pigtail type; COM: SC/APC; Transmission: 1550nm, Isolation ≥ 30dB, SC/APC; Reflection: 1310/1490nm, isolation ≥ 17dB, SC/UPC; Fiber length: 1m, 3.0mm PVC jacket; Dimensions (mm): 100 (L) x 80 (W) x 10 (H)
    SUN-PON-WDM-AD WDM PON WDM, Box with adaptor type; COM: SC/APC; Transmission: 1550nm, isolation ≥ 30dB, SC/APC; Reflection: 1310/1490nm, isolation ≥ 17dB, SC/UPC; Dimensions (mm): 120 (L) x 80 (W) x 18 (H)

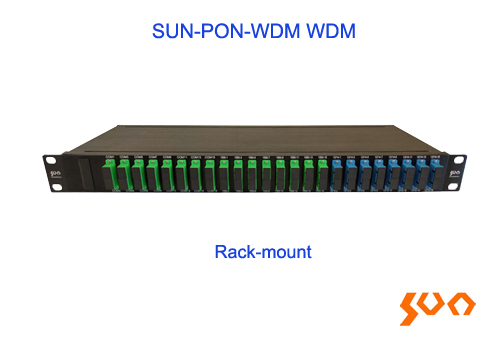

    SUN-PON-WDM-8 WDM PON WDM, 1U rack-mount type; Including 8 pieces of 1x2 WDM; COM: SC/APC; Transmission: 1550nm, isolation ≥ 30dB, SC/APC; Reflection: 1310/1490nm, isolation ≥ 17dB, SC/UPC
    SUN-PON-WDM-16 WDM PON WDM, 1U rack-mount type; Including 16 pieces of 1x2 WDM; COM: SC/APC; Transmission: 1550nm, isolation ≥ 30dB, SC/APC; Reflection: 1310/1490nm, isolation ≥ 17dB, SC/UPC

  • ● PON System
    ● CATV System
