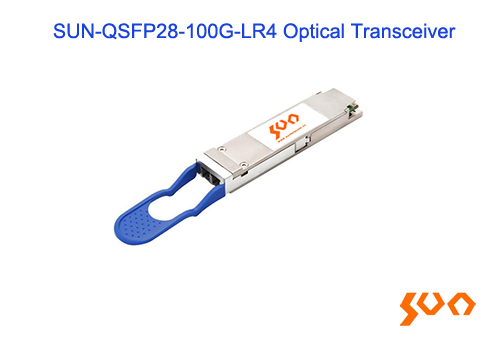

SUN-QSFP28-100G-LR4 Optical Transceiver

Model: SUN-QSFP28-100G-LR4

100G Optical Transceiver, long-distance transmission, single mode maximum transmission distance 10km

    Key Features

  • 4 channels full-duplex transceiver modules
  • Transmission data rate up to 26Gbps per channel
  • 4 x 26Gb/s DFB-based LAN-WDM Cooling transmitter
  • 4 channels PIN ROSA
  • Low power consumption <3.5W
  • Hot Pluggable QSFP form factor
  • Up to reach 10km for G.652 SMF
  • Duplex LC receptacles
  • Built-in digital diagnostic functions
  • Operating case temperature Standard : 0 to +70°C Industrial : -40 to +85°C
  • 3.3V power supply voltage
  • RoHS 6 compliant
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  • Sun Telecom’s SUN-QSFP28-100G-LR4 series product is a 100Gbps transceiver module designed for optical communication applications compliant to 100GBASE-LR4 of the IEEEP802.3ba standard. The module converts 4 input channels of 25Gbps electrical data to 4 channels of LANWDM optical signals and then multiplexes them into a single channel for100Gb/s optical transmission. Reversely on the receiver side, the module de-multiplexes a 100Gb/s optical input into 4 channels of LANWDM optical signals and then converts them to 4 output channels of electrical data.

    The central wavelengths of the 4LANWDM channels are 1295.56,1300.05, 1304.58 and 1309.14nm as members of the LANWDM wavelength grid defined in IEEE802.3ba.The high performance cooled LAN WDMEA-DFB transmitters and high sensitivity PIN receivers provide superior performance for 100Gigabit Ethernet applications up to 10km links and compliant to optical interface with IEEE802.3ba Clause88 100GBASE-LR4 requirements.    　

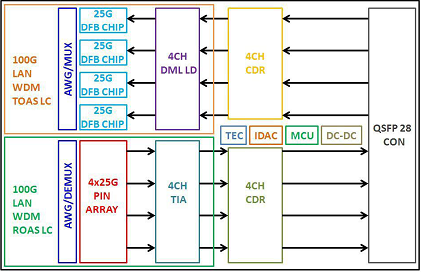

  • Transceiver Block Diagram


    Absolute Maximum Ratings
    Parameter Symbol Min Max Units
    Supply Voltage Vcc -0.3 3.6 V
    Input Voltage Vin -0.3 Vcc+0.3 degC
    Storage Temperature Tst -20 85 ℃
    Case Operating Temperature Top 0 70 ℃
    Humidity (non-condensing) Rh 5 85 %
    Damage Threshold, each Lane TH 5.5   dBm

    Recommended Operating Conditions
    Parameter Symbol Min Typical Max Units
    Operating Case Temperature Tca 0   70 ℃
    Power Supply Voltage Vcc 3.13 3.3 3.47 V
    Date Rate, each Lane fd   25.78125   Gb/s
    Humidity Rh 5   85 %
    Power Dissipation P     3.5 W
    Link Distance (G652D SMF)
    		 D 0.002   10 KM

    Electrical Characteristics
    Parameter Symbol Min Typical Max Units
    Power Consumption P     3.5 W
    Supply Current Icc     1.06 A
    Transceiver Power-on Initialization Time       2000 ms
    Transmitter (each Lane)
    Single Ended Input Voltage Tolerance   -0.3   4.0 V
    AC Common Mode Input Voltage Tolerance   15     mV
    Differential Input Voltage Swing Threshold   50     mVpp
    Differential Input Voltage Swing Vin     900 mVpp
    Differential Input Impedance Zin 90 100 110 Ohm
    Receiver (each Lane)
    Single Ended Output Voltage   -0.3   4 V
    AC Common Mode Output Voltage       7.5 mV
    Differential Output Voltage Swing Vout 300   850 mVpp
    Differential Output Impedance Zout 90 100 110 Ohm
    Note:
    Power-on Initialization Time is the time from when the power supply voltages reach and remain above the minimum recommended operating supply voltages to the time when the module is fully functional.

    Optical Characteristics
    Parameter Symbol Min Typical Max Units
    Lane Wavelength L0 1294.53 1295.56 1296.59 nm
    L1 1299.02 1300.05 1301.09 nm
    L2 1303.54 1304.58 1305.63 nm
    L3 1308.09 1309.14 1310.19 nm
    Transmitter
    Side Mode Suppression Ratio SMSR 30     dB
    Total Average Launch Power
    		 Pt     10.5 dBm
    Average Launch Power, each Lane Pavg -4.3   4.5 dBm
    Optical Modulation Amplitude (OMA), each Lane Poma -1.3   4.5 dBm
    Difference in Launch Power between any Two Lanes (OMA) Ptx, diff     5.0 dB
    Launch Power in OMA minus TDEC, each Lane   -2.3     dBm
    Extinction ratio ER 4     dB
    Optical Return Loss Tolerance TOL     20 dB
    Transmitter Eye Mask Definition {X1, X2, X3, Y1, Y2, Y3},   {0.25, 0.4, 0.45, 0.25, 0.28, 0.4}
    Average Launch Power OFF Transmitter, each Lane Poff     -30 dBm
    Receiver
    Damage Threshold, each Lane THd 5.5     dBm
    Total Average Receiver Power       10.5 dBm
    Average Receive Power, each Lane   -10.6   4.5 dBm
    Receive Power (OMA), each Lane       4.5 dBm
    Receiver Sensitivity (OMA), each Lane SEN     -8.6 dBm
    Stressed receiver Sensitivity (OMA), each Lane       -6.8 dBm
    LOS Assert LOSA   -18   dBm
    LOS Deassert LOSD   -15   dBm
    LOS Hysteresis LOSH 0.5     dB
    Conditions of Stress Receiver Sensitivity Test
    Vertical Eye Closure Penalty, each Lane
    		     1.8
    Stressed Eye J2 Jitter, Lane under Test     0.3   UI
    Stressed Eye J9 Jitter, Lane under Test
    		     0.47   UI
    Notes:
    1. Even if the TDP < 1 dB, the OMA min must exceed the minimum value specified here.
    2. The receiver shall be able to tolerate, without damage, continuous exposure to a modulated optical input signal having this power level on one lane. The receiver does not have to operate correctly at this input power.
    3. Measured with conformance test signal at receiver input for BER = 1x10-12.
    4. Vertical eye closure and stressed eye jitter are test conditions for measuring stressed receiver sensitivity. They are not characteristics of the receiver.

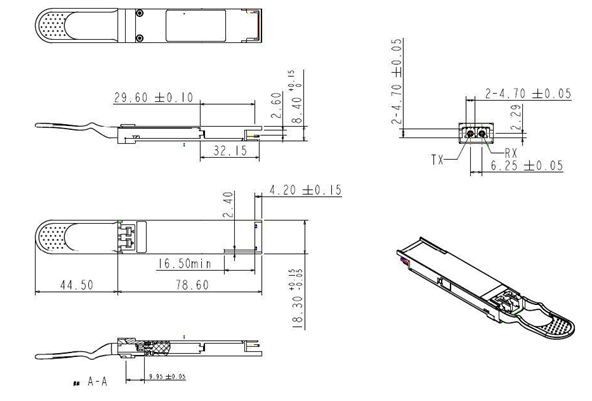

    Dimensions (mm)
  •
    Model
    Name
    Description
    SUN-QSFP28-100G-LR4
    Optical Transceiver
    QSFP28, 100Gbps, 1310nm; SM, dual fiber, max transmission distance: 10km; LC interface
    SUN-QSFP28-100G-LR4-I
    Optical Transceiver
    QSFP28, 100Gbps,1310nm; SM, dual fiber, max transmission distance: 10km; LC interface, Industrial


  •
    ● 100GBASE-LR4 Ethernet Links
    ● Infiniband QDR and DDR interconnects
    ● Client-side 100G Telecom connections
