SUN-PDH-1~16E1-1~4FE PDH Multiplexer

Model: SUN-PDH-1~16E1-1~4FE

    Key Features

  • E1 interface comply with G.703
  • 1~16 E1 ports
  • Ethernet interface rate is 10/100M, half/full duplex Auto-Negotiation

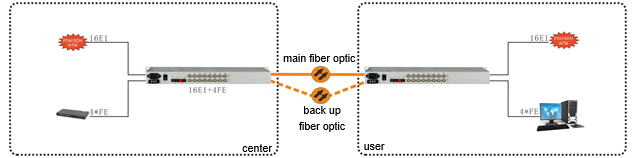

  • 1+1 back up fiber optic
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  • Sun Telecom’s SUN-PDH-1~16E1-1~4FE PDH Multiplexer provides 1-16 Channel E1 interface, 1+1 back up fiber optic, 1-4 Channel 10/100M fast Ethernet port. It is very flexible. It has alarm function. The work is reliable, stable, and low power consumption, high integration, small size.
    　
  •
    Parameters
    Specification
    Fiber
    MM
    Maximum Transmission Distance
    2km
    Fiber Wavelength (nm)
    850
    Transmitting Power (dBm)
    -12 ~ 9
    Receiver Sensitivity (dBm)
    ≥-28
    Link Budget
    16
    SM
    Maximum Transmission Distance
    20km @ 9/125um (longer distance can be customized)
    Fiber Wavelength (nm)
    1310 (1550nm for long distance using)
    Transmitting Power (dBm)
    -9 ~ -5
    Receiver Sensitivity (dBm)
    ≥-27
    Link Budget
    18
    E1 Interface (1~16)
    Interface Standard
    comply with protocol G.703
    Interface Rate (Kbps)
    2048kbps ± 50ppm
    Interface Code
    HDB3
    E1 Impedance
    75Ω (unbalance) or 120Ω (balance)
    Jitter Tolerance
    In accord with protocol G.742 and G.823
    Allowed Attenuation
    0 ~ 6
    Ethernet Interface (10/100M) (1~4)
    Interface Rate
    10/100M, half/full duplex auto-negotiation
    Interface Standard
    IEEE 802.3, IEEE 802.1Q (VLAN)
    MAC Address Capability
    4096
    Connector
    RJ45, support Auto-MDIX
    Operating Environment
    Power Supply (V)
    AC180 ~ 260, DC-48 or DC 24
    Power Consumption (W)
    ≤5
    Working Temperature (°C)
    -10 ~ +60
    Storage Temperature (°C)
    -40~ +85
    Humidity (%)
    0 ~ 95 (no condensation)
    Dimension (mm)
    Rack-mounted
    483(W) * 138(D) * 45(H)
    MTBF (hour)
    >100000

  • SUN-PDHM-16E1-120-4FE-2-SD13-40LC-AC-DC
    16*E1, 120Ω, 4*10/100M RJ45 port, 2* SFP slots (1+1 back up fiber optic), SFP modules: single mode, dual fiber LC port, 1310nm, max transmission distance: 40km. with SNMP function; dual power supply: AC180~260V + DC48V
