SUN-PDH-1~16E1-1~3GE-1GX PDH Multiplexer

Model: SUN-PDH-1~16E1-1~3GE-1GX

    Key Features

  • E1 interface comply with G.703
  • Ethernet interface rate is 100/1000M, half/full duplex Auto-Negotiation
  • Optical Ethernet rate is 1000M, full duplex
  • Optical port transmitting rate 1.25GMbps, transmission distance 25, 40, 60, 80, 120km
  • Description
  • Specifications
  • Ordering Information

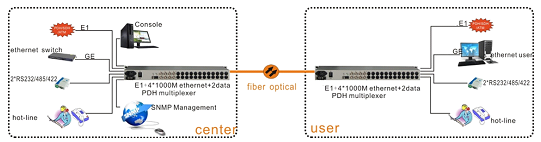

  • Applications
  • FAQ
  • Product Video
  • Sun Telecom’s SUN-PDH-1~16E1-1~3GE-1GX PDH Multiplexer provides 1-16 Channel E1 interface, 1-3Channel 100/1000M fast Ethernet port, 1Channel GX optical Ethernet port. It is very flexible. It has alarm function. The work is reliable, stable, and low power consumption, high integration, small size.

  • Parameters
    Specification
    Fiber
    MM
    Maximum Transmission Distance
    2km @ 62.5/125um
    Fiber Wavelength (nm)
    850
    Transmitting Power (dBm)
    -12 ~ 9
    Receiver Sensitivity (dBm)
    ≥-28
    Link Budget
    16
    SM
    Maximum Transmission Distance
    20km @ 9/125um (longer distance can be customized)
    Fiber Wavelength (nm)
    1310 (1550nm for long distance using)
    Transmitting Power (dBm)
    -9 ~ -5
    Receiver Sensitivity (dBm)
    ≥-27
    Link Budget
    18
    E1 Interface (1~16)
    Interface Standard
    comply with protocol G.703
    Interface Rate (Kbps)
    2048kbps ± 50ppm
    Interface Code
    HDB3
    E1 Impedance
    75Ω (unbalance) or 120Ω (balance)
    Jitter Tolerance
    In accord with protocol G.742 and G.823
    Allowed Attenuation
    0 ~ 6
    Data Interface
    Data Interface
    RS-485/RS-232/RS-422/Manchester/TTL
    Data Form
    NRZ、Manchester、Bi-phase
    Interface Rate (kbps)
    110 ~ 115.2
    Connector
    RJ45
    Gigabit Ethernet Interface (10/100/1000M) (1~3)
    Interface Rate
    100/1000M, half/full duplex auto-negotiation
    Interface Standard
    IEEE 802.3, IEEE 802.1Q (VLAN)
    MAC Address Capability
    4096
    Connector
    RJ45, support Auto-MDIX
    Optical Ethernet Interface
    Interface Rate
    1000M, full duplex
    Interface Standard
    IEEE 802.3, IEEE 802.1Q (VLAN)
    MAC Address Capability
    4096
    Connector
    LFP/LC
    Operating Environment
    Power Supply (V)
    AC180 ~ 260, DC-48 or DC 24
    Power Consumption (W)
    ≤5
    Working Temperature (°C)
    -10 ~ +60
    Storage Temperature (°C)
    -40~ +85
    Humidity (%)
    50 ~ 95 (no condensation)
    Dimension (mm)
    Rack-mounted
    483(W) * 138(D) * 45(H)
    MTBF (hour)
    >100000

  • SUN-PDH-4E1-75-SD13-20LC-3GE-1GX-R
    19’’ 1U, Rack-mounted type; 4*E1, E1 interface: BNC (75Ω); 3*10/100/1000M Ethernet port; 1*1000M optical Ethernet port (SFP slot); SM, dual fiber, LC, 1310nm; 20km; Single power supply: AC 180~260V
    SUN-PDH-4E1-120-SD13-20LC-3GE-1GX-R
    19’’ 1U, Rack-mounted type; 4*E1, E1 interface: RJ45 (120Ω); 3*10/100/1000M Ethernet port; 1*1000M optical Ethernet port (SFP slot); SM, dual fiber, LC, 1310nm; 20km; Single power supply: AC 180~260V
