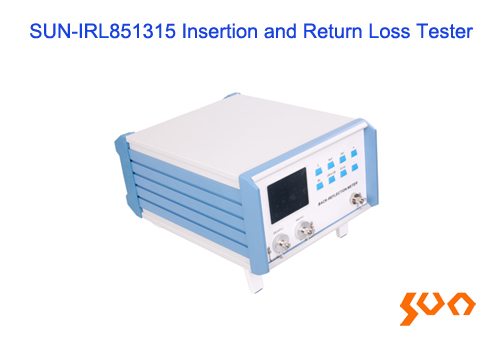

SUN-IRL8513-A Insertion and Return Loss Tester

Model: SUN-IRL8513-A

In-built multiple-wavelength light source: 850/1300nm

    Key Features

  • Intelligent microprocessor-controlled equipment
  • Insertion and return loss testing of the optical active devices and passive components
  • In-built multiple-wavelength light source: 850/1300nm
  • In-built high stability light source (US import detector)
  • Large color LCD screen
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  • Sun Telecom's SUN-IRL8513-A series of insertion and return loss tester is a multifunctional test instrument composed of a stable light source, high-precision optical power meter and an insertion and return loss tester. It is widely used in the insertion and return loss testing of fiber optic cables, passive devices and communication systems.
  • Specifications
    Parameters Specification
    Model SUN-IRL8513-OM1-A SUN-IRL8513-OM2-A
    Fiber Type (um) 62.5/125 50/125
    Return Loss Test Interface FC/APC
    Test Wavelength (nm) 850/1300
    Output Power (dBm) ≥-6
    Range (dB) 0 ~ 55
    Absolute accuracy (dB) ± 1.0
    Relative accuracy (dB) ± 0.4
    Insertion Loss Test Interface Interchangeable Interface (FC/SC/ST/LC)
    Wavelength (nm) 850/1300
    Detector InGaAs(φ2mm probe of U.S. imports)
    Range (dBm) -80 ~ +10
    Total uncertainty (%) ±5
    Linearity (dB) ±0.02
    Display λ: nm, RL: dB, P: dBm (Synchronous display)
    Processing Functions Processing system calibration, auto range, auto-zero, average processing, wavelength selection
    Interface Function RS-232
    Power Supply AC 220V (AC 110V optional)
    Operating Temperature () 0 ~ +50
    Humidity <95%
    Dimensions (mm) 95 (H) x 223 (W) x 300 (D)
    Weight (kg) ≤4

    Standard Package

    No. Name Unit Quantity
    1 Insertion and Return Loss Tester set 1
    2 Power Line piece 1
    3 FC/APC-FC/UPC Patch Cord piece 2
    4 FC Connector piece 1
    5 Adapter (2.5mm Universal) piece 1
    6 Adapter (1.25mm Universal) piece 1
    7 FC Adapter piece 1
    8 Bobbin Winder piece 1
    9 USB Disk piece 1

  • Model Name Description
    SUN-IRL8513-OM1-A Insertion and Return Loss Tester  MM, 62.5/125 um; Return Loss: 850/1300 nm, 0 ~ 55 dB, FC/APC; Insertion Loss: 850/1300 nm, -80 ~ +10 dBm, FC/2.5 mm universal/1.25 mm universal; Power supply: AC 220V
    SUN-IRL8513-OM2-A Insertion and Return Loss Tester  MM, 50/125 um; Return Loss: 850/1300 nm, 0 ~ 55 dB, FC/APC; Insertion Loss: 850/1300 nm, -80 ~ +10 dBm, FC/2.5 mm universal/1.25 mm universal; Power supply: AC 220V
