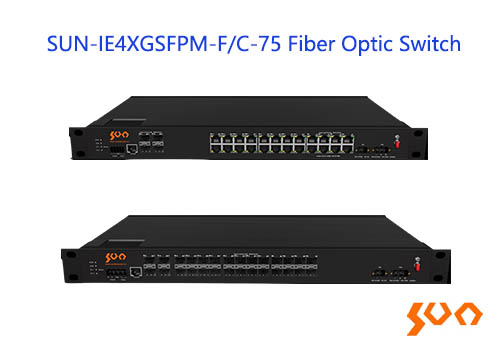

SUN-IE4XGSFPM-F/C-75 Fiber Optic Switch

Key Features

Sun Telecom’s SUN-IE4XGSFPM-75 series of industrial managed optical Ethernet switches has RJ45 ports and SFP slots. Electrical interfaces support 10/100/1000Mbps, full/half duplex mode, MDI/MDIX (POE function optional).
SUN-IE4XGSFPM-75 series of industrial managed optical Ethernet switches is made of aluminum alloy to achieve protection rating IP40. It is a good choice for industrial applications.

Parameters		Specification
Standard		IEEE 802.3
Data (Mbps)		10/100/1000
Ethernet Interface		24* 10/100/1000M RJ-45 port or 24*1000M SFP slots
Optical Interface		4* 10G SFP+ slots
Transmission Distance (km)		SM: 20/40/60/80/100 MM: 0.55
Ring Topology		Not support
Star Topology		Support
Bus Topology		Support
Tree Topology		Support
Hybrid Topology		Support
Switching Capacity (Gpbs)		36
Packet Forwarding Rate (Mpps)		26.78
MAC Address Table		16K
Switching Delay (μs)		≤ 10
Buffer		12M
Flow Control		Support
Jumbo Frame		Support
WatchDog		Support
Port Isolation		Support
Ring Protocol		Support ERPS
Link Aggregation		Support 12groups
Multicas		Support IGMP Snooping
Port Mirroring		Support
Storm Control		Support
Interface Counters		Support
QINQ		Support
802.1X Authentication		Support
MAC Authentication		Support
Port Isolation		Support
RMON		Support
NTP Client		Support
DHCP Client		Support
DHCP Snooping		Support
Ping/tracert		Support
Dying Gasp		Support
Management Function (Optional)	Layer 2	Not support route
	Layer 2+	Static route
	Layer 3	Dynamic route
Power Input		AC100~240V and DC 12~58V dual power (Non-POE) DC 48~58V dual power (POE)
Protection Rating		IP40
Installation Type		Rack mounting
MTBF (h)		100,000
Operation Temperature (°C)		-40 ~ +75
Humidity		10~ 90% (non-condensing)
Dimension (mm)		440 (L) x 245 (W) x 45 (H)
Weight (kg)		3.1

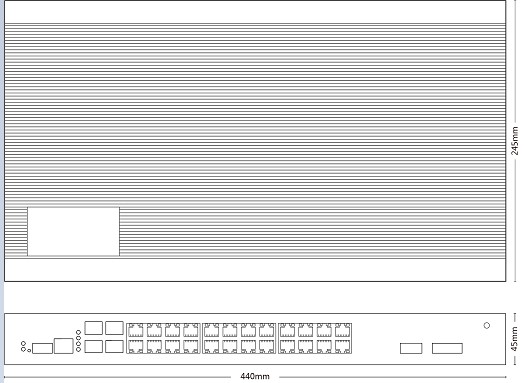

Dimensions (mm)

Standard Package

Optional Accessories

No.	Name	Unit	Quantity
1	AC100~240V to DC 24V Power Adapter	piece	1

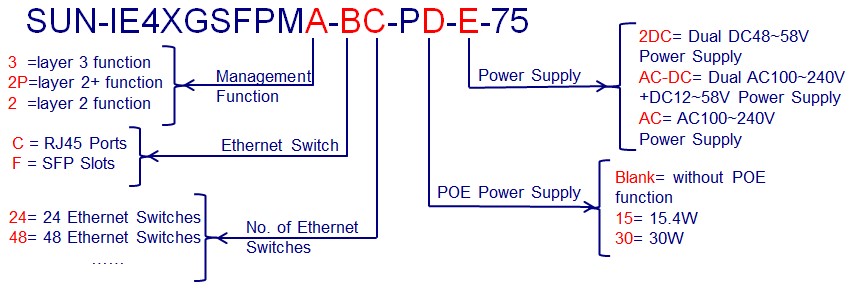

For example:

Model	Product Name	Description
SUN-IE4XGSFPM2P-F24-AC-DC-75	Fiber Optic Switch	Industrial grade, managed (layer 2+ function), 410G SFP+, 2410/100/1000Mpbs SFP slots (SFP module NOT included); Rack-mounted, dual power supply: AC100~240V+DC12~58V; Operation Temperature (°C): -40 ~ +75; Dimension (mm): 440 (L) x 245 (W) x 45 (H)
SUN-IE4XGSFPM2P-C24-AC-DC-75	Fiber Optic Switch	Industrial grade, managed (layer 2+ function), 410G SFP+, 2410/100/1000Mpbs RJ45 ports ; Rack-mounted, dual power supply: AC100~240V+DC12~58V; Operation Temperature (°C): -40 ~ +75; Dimension (mm): 440 (L) x 245 (W) x 45 (H)
SUN-IE4XGSFPM2P-C24-P30-2DC-75	Fiber Optic Switch	Industrial grade, managed (layer 2+ function), 410G SFP+, 2410/100/1000Mpbs RJ45 ports ; Rack-mounted, with POE function, POE supply 30W, dual power supply: DC48~58V; Operation Temperature (°C): -40 ~ +75; Dimension (mm): 440 (L) x 245 (W) x 45 (H)
