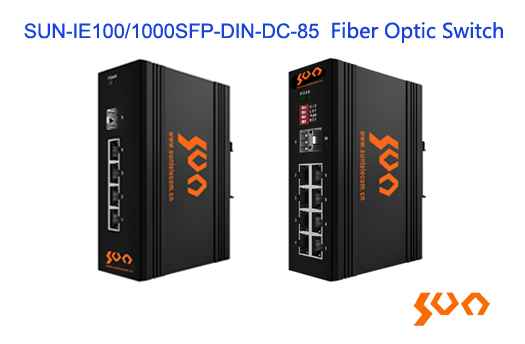

Unmanaged, 10/100M or 10/100/100M, Din-rail mounting
| Parameters | Specification | |
| Standard | IEEE 802.3 | |
| Data (Mbps) | 10/100 or 10/100/1000 | |
| Ethernet Interface | 2/4/8 RJ-45 port | |
| Optical Interface | 1/2 SFP slots | |
| Transmission Distance (km) | SM: 20/40/60/80/100 MM: 0.55 |
|
| Dialing instructions | 1 C/D | LFP& remote PD reboot |
| 2 LGY | Standard/substandard POE | |
| 3 VLAN | VLAN Isolation | |
| 4 RST | Reset | |
| Watch dog function | Support | |
| Ring Topology | Not support | |
| Star Topology | Support | |
| Bus Topology | Support | |
| Tree Topology | Support | |
| Hybrid Topology | Support | |
| Switching capacity (Gpbs) | 10(2 or 4 RJ45) 26 (8 RJ45) |
|
| Packet forwarding Rate (Mpps) | 7.44 (2 or 4 RJ45) 19.34 (8 RJ45) |
|
| MAC Address Table | 8K (2 or 4 RJ45) 16K (8 RJ45) |
|
| Switching Delay (μs) | ≤ 5 | |
| Buffer | 1M (2 or 4 RJ45) 2M (8 RJ45) |
|
| Flow control | Support | |
| Jumbo Frame | Support | |
| Watch Dog | Support | |
| Port Isolation | Support | |
| Power interface | Phoenix terminal, dual power redundancy | |
| Power Input | DC 10~58 | |
| Overload | Support | |
| Protection Rating | IP40 | |
| Surge protection of Power | IEC 61000-4-5 Level X (6KV/6KV) (8/20us) | |
| Surge protection of Ethernet port） | IEC 61000-4-5 Level 4 (4KV/4KV) (10/700us) | |
| Installation Type | Din-rail mounting | |
| MTBF (h) | 100,000 | |
| Operation Temperature (°C) | -40 ~ +85 | |
| Humidity | 10~ 90% (non-condensing) | |

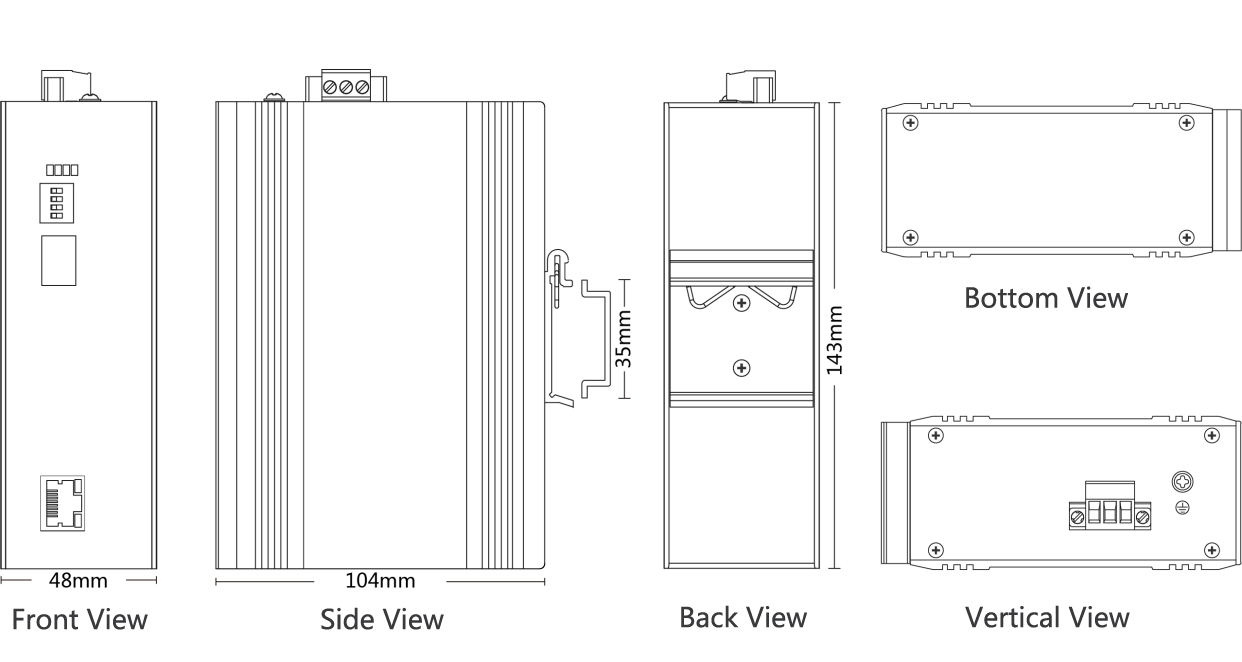

| Dimension (mm) | 143 (L) x 104 (W) x 48 (H) | |
| Weight (kg) | 0.6 | |
| POE Power Supply | IEEE 802.3af standard 48V 15.4W IEEE 802.3at standard 48V 30W |
|
| POE Pins | V+: 1, V+: 2, V-: 3 and V-: 6 | |
| No. | Name | Unit | Quantity |
| 1 | Fiber Optic Switch | piece | 1 |
| 2 | User Manual | piece | 1 |
| No. | Name | Unit | Quantity |
| 1 | AC100~240V to DC 24V Power Adapter (The part number “DC” change to “AC”) |
piece | 1 |
