SUN-FIN-N Fiber End-face Inspector

Model: SUN-FIN-N

    Key Features

  • Small size, light weight and low power consumption
  • Varies of adapters
  • Long time working
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  • Sun Telecom’s SUN-FIN-N series of handheld fiber end-face inspector is integrated equipment which combines an optical microscope and a monitor in one body. It has high definition and a long lifetime. The standard package has 1.25mm and 2.5mm UPC universal male adaptors. Other types of general adapters and long type adapters (mainly used for data center) are selectable for fiber end-face inspection. It is easy to operate and widely used in field application for fiber optic connector end-face quality inspection.
    　

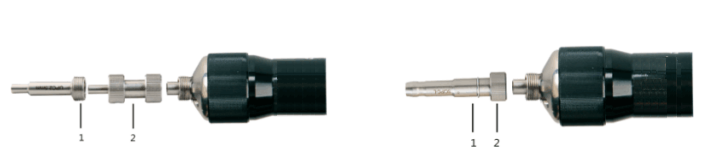

  • Figure 1： Normal Adaptor Connection
    1. Adaptor: used for connecting detected device
    2. OLU optical unit
    		 Figure 2： Long Type Adaptor Connection
    1. Long type adaptor (OLU optical unit inside)
    2. Nut: used for fixing the adaptor



    Parameters
    Specification
    Model
    SUN-FIN200-N
    SUN-FIN400-N
    Optical Magnification
    200 x
    400 x
    Monitor Visual Field (um)
    312.5 ~ 425
    240 ~ 327
    Image Output Mode
    PAL
    Displayer
    3.5” TFT LCD, 320*240
    Recharge battery (V)
    12
    Power adapter (V)
    DC 12
    Battery Operation Time (h)
    8
    Power (W)
    3
    Operation Temperature (°C)
    -10 ~ +50
    Storage Temperature (°C)
    -20 ~ +50
    Dimensions (mm)
    Display: 205 (L) × 94 (W) × 25 (H)
    Microscope: 23 (D) × 160 (L)
    Weight (kg)
    2


    Standard Package
    No.
    Name
    Unit
    Quantity
    1
    Fiber End-face Inspector (probe and handheld LCD monitor included)
    set
    1
    2
    2.5mm UPC Universal Male Adaptor
    piece
    1
    3
    1.25mm UPC Universal Male Adaptor
    piece
    1
    4
    OLU Optical Unit
    piece
    1
    5
    BNC to Aviation Connector (female) Patch Cord
    piece
    1
    6
    FC/UPC Female Adaptor
    piece
    1
    7
    SC/UPC Female Adaptor
    piece
    1
    8
    LC/UPC Female Adaptor
    piece
    1
    9
    Power Adaptor
    piece
    1
    10
    Suitcase
    piece
    1
    11
    USB Disk
    piece
    1

    Optional Accessories
    No.
    Name
    Unit
    Quantity
    1
    Picture Capture Card (SUN-FIN-N-ICC)
    piece
    1


  • Model
    Name
    Description
    SUN-FIN200-N
    Fiber End-face Inspector
    Handheld, 200 x; OLU optical unit, 2.5 mm UPC universal male adaptor, 1.25 mm UPC universal male adaptor and FC/SC/LC female adaptors included
    SUN-FIN400-N
    Fiber End-face Inspector
    Handheld, 400 x; OLU optical unit, 2.5 mm UPC universal male adaptor, 1.25 mm UPC universal male adaptor and FC/SC/LC female adaptors included
    SUN-FIN-N-250
    Adaptor
    250um-PC
    2.5 mm UPC universal male adaptor; Used for SUN-FIN200/400-N Fiber End-face Inspector
    SUN-FIN-N-125
    Adaptor
    125um-PC
    1.25 mm UPC universal male adaptor; Used for SUN-FIN200/400-N Fiber End-face Inspector
    SUN-FIN-N-E2000-M
    Adaptor
    E2000-PC-M
    E2000/UPC male adaptor; Used for SUN-FIN200/400-N Fiber End-face Inspector
    SUN-FIN-N-FC-F
    Adaptor
    FC-PC
    FC/UPC female adaptor; Used for SUN-FIN200/400-N Fiber End-face Inspector
    SUN-FIN-N-SC-F
    Adaptor
    SC-PC
    SC/UPC female adaptor; Used for SUN-FIN200/400-N Fiber End-face Inspector
    SUN-FIN-N-LC-F
    Adaptor
    LC-PC
    LC/UPC female adaptor; Used for SUN-FIN200/400-N Fiber End-face Inspector
    SUN-FIN-N-ST-F
    Adaptor
    ST-PC
    ST/UPC female adaptor; Used for SUN-FIN200/400-N Fiber End-face Inspector
    SUN-FIN-N-E2000-F
    Adaptor
    E2000-PC-F
    E2000/UPC female adaptor; Used for SUN-FIN200/400-N Fiber End-face Inspector
    SUN-FIN-N-MU-F
    Adaptor
    MU-PC
    MU/UPC female adaptor; Used for SUN-FIN200/400-N Fiber End-face Inspector
    SUN-FIN-N-MTP-F
    Adaptor
    MTP-PC
    MTP/UPC female adaptor; Used for SUN-FIN200/400-N Fiber End-face Inspector

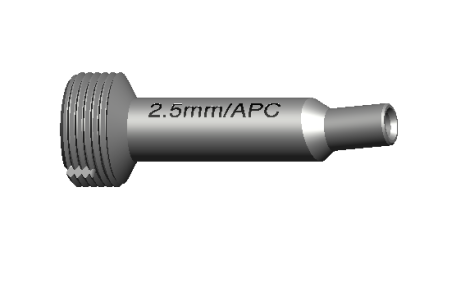

    SUN-FIN-N-A250
    Adaptor
    250um-APC
    2.5 mm APC universal male adaptor; Used for SUN-FIN200/400-N Fiber End-face Inspector
    SUN-FIN-N-A125
    Adaptor
    125um-APC
    1.25 mm APC universal male adaptor; Used for SUN-FIN200/400-N Fiber End-face Inspector
    SUN-FIN-N-AE2000-M
    Adaptor
    E2000-APC-M
    E2000/APC male adaptor; Used for SUN-FIN200/400-N Fiber End-face Inspector
    SUN-FIN-N-AFC-F
    Adaptor
    FC-APC
    FC/APC female adaptor; Used for SUN-FIN200/400-N Fiber End-face Inspector
    SUN-FIN-N-ASC-F
    Adaptor
    SC-APC
    SC/APC female adaptor; Used for SUN-FIN200/400-N Fiber End-face Inspector
    SUN-FIN-N-AMTP-F
    Adaptor
    MTP-APC
    MTP/APC female adaptor; Used for SUN-FIN200/400-N Fiber End-face Inspector

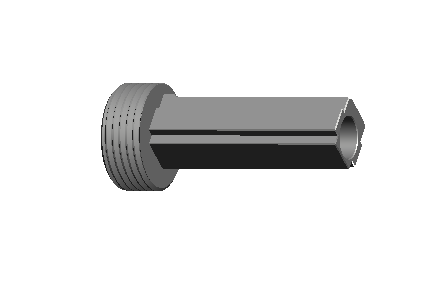

    SUN-FIN-N-SC-L-F
    Adaptor

    1
    SC/UPC long type female adaptor (OLU optical unit inside) ; Used for SUN-FIN200/400-N Fiber End-face Inspector
    SUN-FIN-N-LC-L-F
    Adaptor

    LC-PC长接口
    LC/UPC long type female adaptor (OLU optical unit inside) ; Used for SUN-FIN200/400-N Fiber End-face Inspector
    SUN-FIN-N-ALC-L-F
    Adaptor

    LC-APC长接口
    LC/APC long type female adaptor (OLU optical unit inside) ; Used for SUN-FIN200/400-N Fiber End-face Inspector

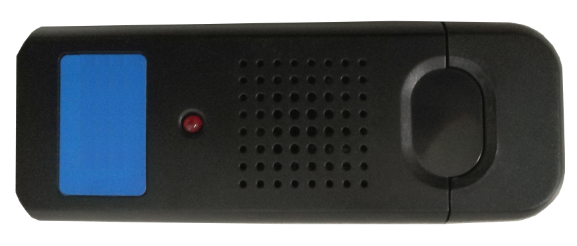

    SUN-FIN-N-ICC
    Image Capture Card
    Picture capture and storage on computer; Used for SUN-FIN200/400-N Fiber End-face Inspector

  • ● Fiber optic connector end-face inspection
