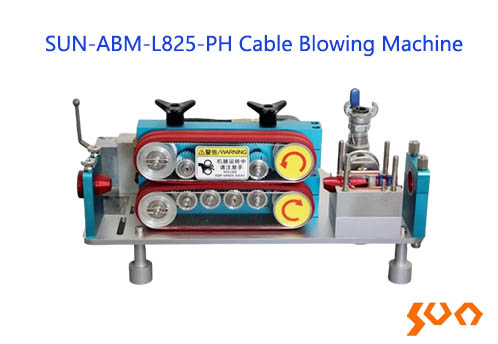

SUN-ABM-L825-PH Cable Blowing Machine

Model: SUN-ABM-L825-PH

    Key Features

  • Two pneumatic air motor and compressor hose adapter
  • Cable inserts for different cable diameters
  • Special belt sets are easy to install
  • No need to extra setting for different cable diameters
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  • Sun Telecom’s SUN-ABM-L825-PH cable blowing machine is designed for blowing or floating telecommunication cables (fiber optic cable or coaxial cable) or micro ducts in preinstalled ducts. In addition to its ability to install a wide range of cables, Hydraulic type is also well suited for laying micro ducts. It is very easy to use and comes with a toolbox containing all the tools needed for maintenance and services. Its clamping system ensures good cable grip without damage while absorbing tolerances of the cable diameter.
    　
  •
    Parameters
    Specification
    Blowing Cable Diameter (mm)
    8~25 (22~25mm need customized)
    Blowing Micro Duct Diameter (mm)
    1~3pcs 10~12mm
    Suitable Duct Diameter (mm)
    32~50
    Drive Unit
    Pneumatic + Hydraulic
    Pushing Force (N)
    1000
    Operating Pressure (bar)
    8~15
    Max. Blowing Length (km)
    2
    Max. Speed (m/min)
    120
    Operating Temp (°C)
    -25 ~ +55
    Dimensions (mm)
    600 (L) × 370 (W) × 320 (H)
    Weight (kg)
    32 (Net weight)
    210 (With hydraulic pump)
    Note:  Air compressor should be provided by the client.

    Standard Package
    No.
    Name
    Unit
    Quantity
    1
    Gasoline Mobile Hydraulic Pump Station1 (QY30L, 13HP)
    微信图片_20241225144501
    set
    1
    2
    High Pressure Gas Pipe
    (φ40mm*10m)
    piece
    1
    3
    High Pressure Gas Pipe Clamp
    (Max. 49mm)
    f5ad7bd850437526e0686daa69336a7
    pieces
    2
    4
    Pressure Gas Pipe Quick Connector (DN25)
    pieces
    2
    5
    Optical Cable Diameter Module
    (16mm/22mm/25mm)

    set
    3 (1 for use, 2 for backup)
    6
    Optical Cable Pipe Mould
    (32mm/40mm)
    set
    2 (1 for use, 1 for backup)
    7
    Pipe Fixing Die
    (32mm/40mm)
    set
    2 (1 for use, 1 for backup)
    8
    Conveyor Belt
    (10mm/15mm/20mm)
    pieces
    6 (2 for use, 4 for backup)
    9
    Optical Cable Guidance
    (18mm/26mm)
    set
    2 (1 for use, 1 for backup)
    10
    Union Ring
    (Suitable for DN25 connector)
    pieces
    4
    11
    Cable Ring
    (10mm*6, 12mm*6, 14mm*6, 16mm*6, 18mm*6, 20mm*6, 22mm*6, 24mm*6)
    pieces
    48
    12
    Pipeline Sealing Ring
    (32mm*2, 40mm*2, 50mm*2)
    pieces
    6
    13
    Slot Ring (t4mm, φ60mm)
    微信图片_20250411162003
    pieces
    4
    14
    Hydraulic Sealing Ring (φ11mm)
    微信图片_20250411162958
    pieces
    8
    15
    Tube Scissors (φ40mm)
    pieces
    2
    16
    Aviation Packing Box
    微信图片_20250411163618
    piece
    1
    17
    Inner Hexagon Spanner
    set
    1
    18
    Forceps (10”)
    微信图片_20250411164754
    piece
    1
    19
    Pipe Union (DN40)
    微信图片_20250411165347
    piece
    1
    20
    Pipeline Tester
    9ac45aff5421a358d8a4e04a7792494
    piece
    1
    21
    Air Chamber Fixing Screw (M10)
    pieces
    4 (backup)
    22
    Air Chamber Fixing Screw Cap (M10)
    微信图片_20250411164627
    pieces
    4 (backup)
    23
    Vertical Scissors
    piece
    1
    Note1:  Hydraulic oil, gasoline, engine oil and blowing lubricant should be provided by the client.

  •
    Model
    Name
    Description
    SUN-ABM-L825-PH
    Cable Blowing Machine
    Hydraulic type; Suitable for 8~25mm cable blowing and the suitable duct diameter: 32~50mm; With hydraulic pump, air compressor NOT included

  • ● Highways
    ● Railways
    ● Petroleum and petrochemical pipelines
    ● Water conservancy
    ● Large building
