Position: Home > Products > Fiber Optic Cable Management > MPO/MTP Patch Panel & Cassette

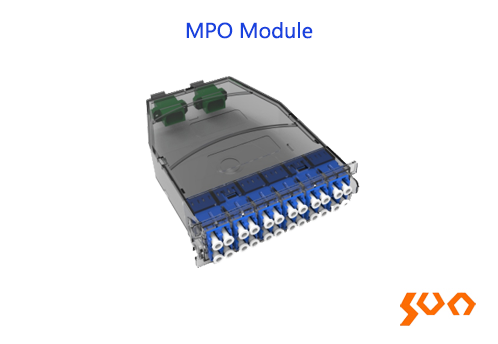

MPO Module

Model: MPO

19" Standard rack structure, 4U height, high capacity, fixed design, supports 24-core MPO cassettes or splicing modules

    Key Features

  • 19-inch standard structure
  • Fixed design, rack mounted
  • 16 pcs 12DLC MPO cassettes or 16 pcs splicing modules
  • 4U 384 cores
  • Description
  • Specifications
  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  • 　Sun Telecom’s SUN-MPO-FM16M4 series fiber optic terminal boxes are widely applied in Local Central Office. These are used for fiber optic cable fixation, protection, cable termination, patching etc.
  • Specifications
    Parameters
    Specification
    Max. No. of Cores
    384
    Max. No. of Module
    16
    Box Material
    Cold-rolled steel
    Dimensions (mm)
    482.6(L) x 430.4(D) x 177(H)

  • Ordering Information
    Part Number
    Name
    Description
    SUN-MPO-FM16M4
    Fiber Optic Terminal Box
    19-inch, 4U, fixed type rack mounted chassis, black iron; Max 16 pieces of modules (modules and blank panels NOT included);
    Dimensions (mm): 482.6(L) x 430.4(D) x 177(H)
    SUN-AMPOM-12DLC-2-SMA1-ABS-C-U
    MPO Cassette
    ABS box; 2 pieces of "12-core MPO/APC male connector (including PIN)-LC" patch cord included, SM G657A1; 12 pieces of duplex LC adapters and 2 pieces of MPO adapters (Type A, key up-key down) included; Universal polarity (1-1, 2-12, 3-2, 4-11, 5-3, 6-10, 7-4, 8-9, 9-5, 10-8, 11-6, 12-7)
    SUN-SM1033-12DLC-SMA1
    Splicing Module
    24 cores; DLC adapter panel, including 12pcs LC/UPC duplex adapters and 24pcs LC/UPC pigtails (SM G657A1); Material aluminum, black color; Dimensions (mm): 101(L) x 177.5(D) x 33(H)
    SUN-MPO-RA-BP
    Blank Panel
    Material: ABS, black color; Dimensions (mm): 101(L) ×23(D) ×33(H)

  • ● FTTH access networks
    ● Telecommunication networks
    ● CATV networks
    ● Local Area Networks
