SUN-MAC Mini Armored Cable (≤2 Cores)

Model: SUN-MAC

Indoor mini armored fiber optic cable, 1-2cores

    Key Features

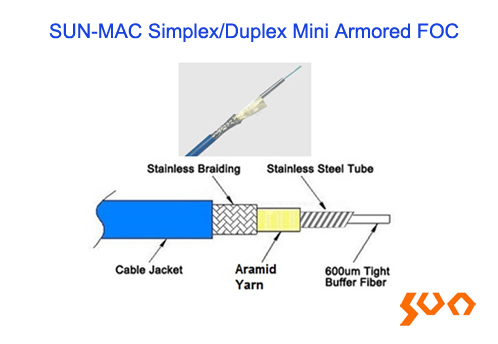

  • Tight buffer fiber (0.55/0.6/0.9mm), steel tube protection, aramid yarn and reinforcing steel-wire braiding flame-retardant jacket
  • High indentation strength, high tensile strength and gopher protected
  • Small diameter, flexibility and easy bending
  • Excellent stripping performance of tight buffer fiber
  • Suited to SM fiber and MM fiber (50μm and 62.5μm)
  • Ideal for fiber optic temperature transmission project
  • Description
  • Specifications

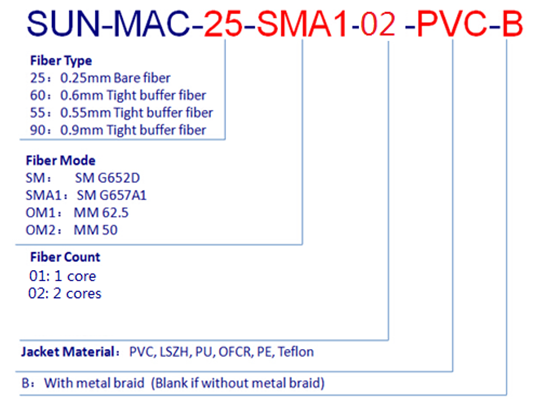

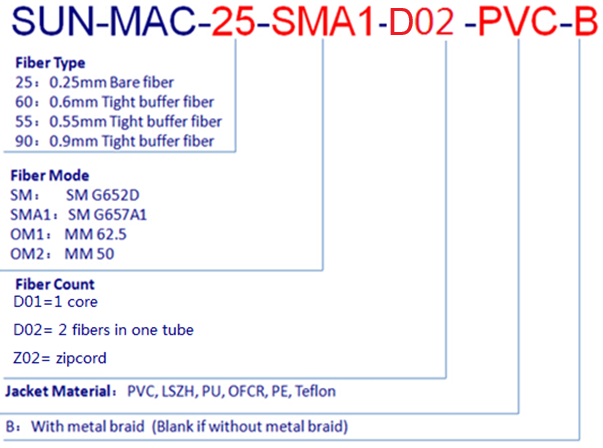

  • Ordering Information
  • Applications
  • FAQ
  • Product Video
  • 　Sun Telecom’s indoor mini armored fiber optic cable possesses same OD as general fiber optic cable that enable to assemble with any standard connectors. Kevlar ensure the fiber optics to avoid pulling. Armored structure protects the fiber optics to resist press and improper torsion. The outer coating is optional for flame retardant, RoHS requirement or temperature resistance according to different environments. Light weight, good bending capacity and excellent flexibility.
  • Geometrical Characteristics
    Fiber Number 1 core 2 cores 2 cores duplex
    Cable Diameter (mm) 2.85 3.20 2.85 x 2
    Cable Weight (kg/km) 18 22 30
    TBF Diameter (μm) 600±50
    900±50    		 600±50
    550±50    		 600±50


    Fiber Specifications
    (1) Geometrical Characteristics
    Item       SM MM 50 MM 62.5
    Core Diameter (um) 9.2±0.4 50±2.5 62.5±2.5
    Cladding Diameter (um) 124.8±0.7 124.8±1.0 124.8±1.0
    Cladding Non-circularity (%) ≤0.7 ≤1.0 ≤1.0
    Core-cladding Concentricity (mm) ≤0.5 ≤1.5 ≤1.5
    Coating Diameter (um) 245±5 245±7 245±7
    Coating-cladding Concentricity Error ≤12.0 ≤12.0 ≤12.0

    (2) Optical Characteristics
    Item SM MM 50 MM 62.5
    Zero Dispersion Wavelength (nm) 1302-1322 1295-1320 1320-1365
    Zero Dispersion Stop (ps/(nm2.km)) ≤0.090 ≤0.101 ≤0.097
    Neff Ngroup Index of Refraction 1310 1550 850 1300 850 1300
    1.4670 1.4677 1.481 1.476 1.496 1.491

    Cable Specifications
    Item SM MM 50 MM 62.5
    Attenuation (dB/km) 0.4@1310nm
    0.3@1550nm    		 3.5@850nm
    1.5@1300nm    		 3.5@850nm
    1.5@1300nm
    Operation Temperature (℃) PVC   -20~+70
    LSZH -20~+90
    PU -40~+85
    Bending Radius (mm) Dynamic 20D
    Static 10D
    Tensile Strength (N) Long Term 200
    Short Term 400
    Crush Performance (N/10cm) Long Term 3000
    Short Term 5000

  • ● In FTTX, from residence to data center and cabling level and vertical, also used in FTTH cable
    ● In communications in data center, during ODF with armored patch cord and pigtail
    ● In the open field, connections between optical equipmentsOn base station, for BBU to RRU
