| Parameters | Specification |
| Rate (Gbps) | Uplink: 1.244 Downlink: 1.244 |
| Interface | 1*2.5GE+3*GE+1*POTS+1*USB3.0+WiFi 6 |
| Optical Output Rate (dBm) | 8 |
| Receiving Sensitivity (dBm) | -29.5 |
| Receiving Saturability (dBm) | -7 |
| PON Interface | 10G PON port: Class B+ |
| Data Interface | 1*2.5GE, Auto-negotiation,RJ45 ports 3*GE, Auto-negotiation,RJ45 ports |
| POTS Interface | 1*POTS, RJ11 Connect |
| Wi-Fi Interface | Support 802.11a/n/ac/ax 5GHz & 802.11g/b/n/ax 2.4GHz |
| USB Interface | 1×USB 3.0 for Shared Storage / Printer |
| Power Supply | External power adapter, 12V/2A |
| Power Consumption (W) | 24 |
| Working Temperature (ºC) | 0~55 |
| Humidity (%) | 5~90 (no condensing) |
| Dimensions (mm) | 244(L) × 131(W) × 36(H) |
| No. | Product | Unit | Quantity |
| 1 | Optical Network Unit (ONU) | set | 1 |
| 2 | Power Adapter | set | 1 |
| 3 | UTP Patch Cord | piece | 1 |
| Model | Name | Description |

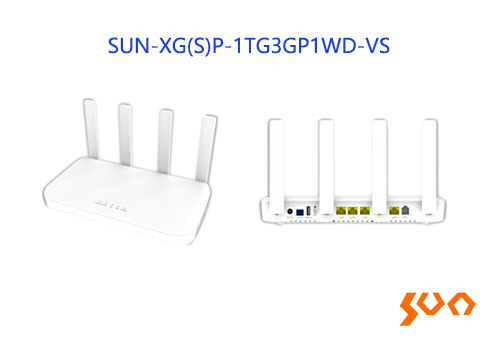

| SUN-XG(S)P-1TG3GP1WD-VS | Optical Network Unit (ONU) | Triple mode (10GEPON/XGPON/XGSPON), 1 port of SC/UPC, 3 ports of 10/100/1000M RJ45, 1 port of 2.5GE RJ45 and 1 port of VoIP POT; with wifi (support 2.4Ghz and 5Ghz); including 1 piece of 1M network cable; External power supply: 220V to 12V power adapter |
SUN-GPE1201G-VS Optical Network Unit (ONU)
Model: SUN-GPE1201G-VS
Dual Mode(GPON/EPON), 1 port of SC/UPC, 1 port of 10/100/1000M RJ45
Features
Full compatible with ITU-T G.984 Support 1 GE auto-adapting Ethernet ports Support OMCI and TR069 for remote management Support Auto-negotiation and MDI/MDIX Support the Ethernet interface rate, working mode and flows control configuration Support packet filtering and illegal message attack protection Support performance statistics of Ethernet link Support VLAN tagged label processing, traffic classification and packet filtering,. Support DHCP Option60 reporting the location information of the Ethernet interface
SUN-FA Fiber Amplifier
Model: SUN-FA
EDFA with low power input, high optic power output
Features
VFD or LED displays the working conditions and trouble alarm RJ45 port for SNMP remote management RS232 for local management
SUN-GE9100BP-VS Optical Line Terminal (OLT)
Model: SUN-GE9100BP-VS
1U rack mount, 2/4/8/16 PON ports, up to 1024 users (under 1:64 split ratio) for ONU access
Features
Space saving Convenient for installation and maintenance Maximum 16×PON, 8×Gigabit optical uplink and 8×Gigabit copper uplink ports
SUN-GPE1201G1FRW-VS Optical Network Unit (ONU)
Model: SUN-GPE1201G1FRW-VS
Dual mode (GPON/EPON), 1 port of SC/APC, 1 port of 10/100/1000M, 1 port of 10/100M RJ45 and 1 port of CATV (British), with wifi
Features
Dual Mode( can access gpon/epon olts ). Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc. Integrated OMCI remote configuration and maintenance function. Support rich QinQ VLAN functions and IGMP Snooping multicast features. Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset. Support 802.11n WiFi (2T2R) function. Support NAT, Firewall function. Support IPv4 and IPv6 dual stack.
SUN-GPE1201G1FP1RW-VS Optical Network Unit (ONU)
Model: SUN-GPE1201G1FP1RW-VS
Dual mode (GPON/EPON), 1 port of SC/APC, 1 port of 10/100/1000M, 1 port of 10/100M RJ45, 1 port of VOIP POTS and 1 port of CATV (British), with wifi
Features
Dual Mode( can access gpon/epon olts ). Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc. Integrated OMCI remote configuration and maintenance function. Support rich QinQ VLAN functions and IGMP Snooping multicast features. Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset. Support 802.11n WiFi (2T2R) function. Support NAT, Firewall function. Support IPv4 and IPv6 dual stack. Integrated line testing compliant with GR-909 on POTS.
SUN-GPE1201G3FP2W-VS Optical Network Unit (ONU)
Model: SUN-GPE1201G3FP2W-VS
Dual Mode(GPON/EPON), 1 port of SC/UPC, 1 port of 10/100/1000M RJ45, 3 ports of 10/100M RJ45, 2 ports of VoIP POT, with Wi-Fi
Features
Dual Mode( can access gpon/epon olts ). Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc. Integrated OMCI remote configuration and maintenance function. Support rich QinQ VLAN functions and IGMP Snooping multicast features. Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset. Support 802.11n WiFi (2T2R) function. Support NAT, Firewall function. Support IPv4 and IPv6 dual stack. Integrated line testing compliant with GR-909 on POTS.
